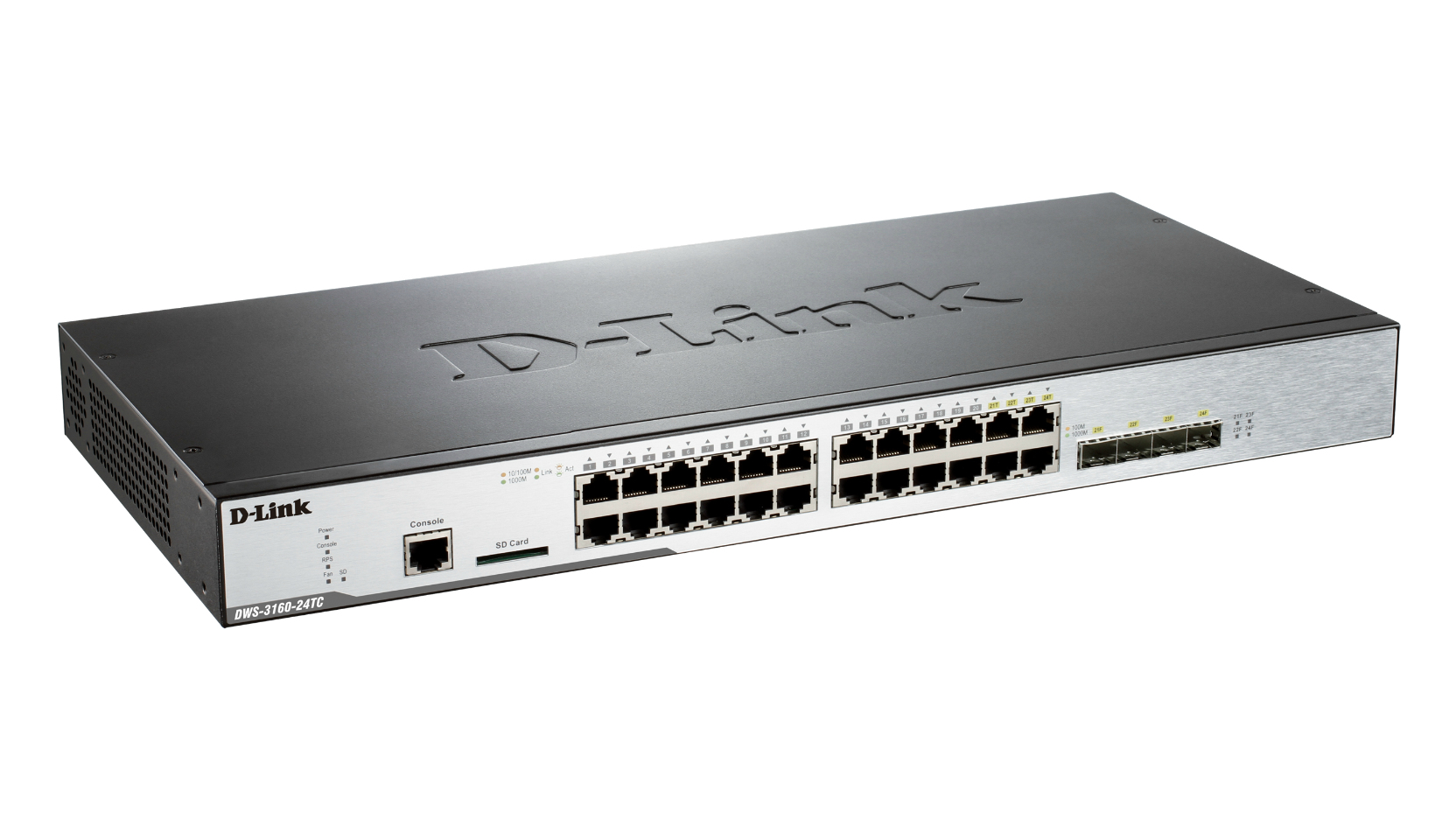

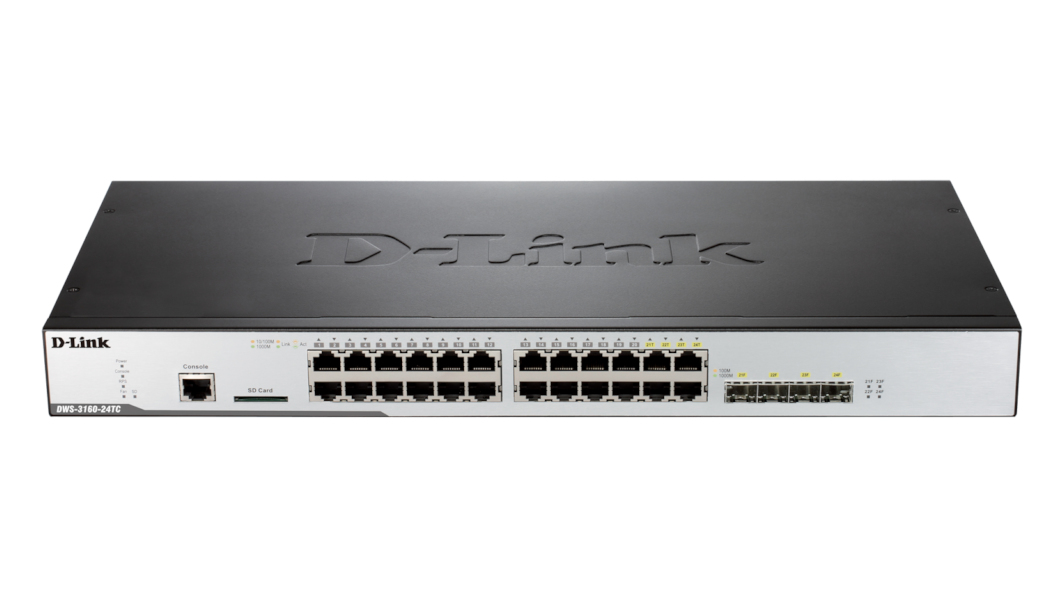

D-Link DWS-3160-24TC + 3x DWL-2600A

D-Link DWS-3160-24TC + 3x DWL-2600A

Model DWS-3160-24TC + 3x DWL-2600APart no. DWS-3160-24TC/KIT

54 specifications
  • Noise46.3 dB
  • Type1U
  • Weight2.55 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
See all specifications

Overview

Noise
46.3 dB
Type
1U
Weight
2.55 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Brand
D-Link
Model
DWS-3160-24TC + 3x DWL-2600A
Part number
DWS-3160-24TC/KIT
Also known as
D-Link DWS-3160-24TC + 3x DWL-2600A Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black

Specifications

54 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity0
SFP module slots quantity4
Console portRJ-45
Compatible memory cardsSD

Network

Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-T, 10BASE-T
Port mirroringYes
Full duplexYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs3965

Data transmission

MAC address table16000 entries
Switching capacity48 Gbit/s
Number of static routes512
Jumbo frames supportYes
Packet buffer memory2 MB

Security

Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Security algorithms128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA2
Static port securityYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP v1, 2c, 3
Switching protocolsIPv6

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
SafetyUL/cUL, CB
Electromagnetic compatibilityFCC A, CE, ICES-003, C-Tick, VCCI

Performance

Noise level46.3 dB
Mean time between failures (MTBF)561829 h

Power

Power consumption (typical)37.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation128.6 BTU/h

Weight & dimensions

Width440 mm
Depth210 mm
Height44 mm
Weight2.55 kg
