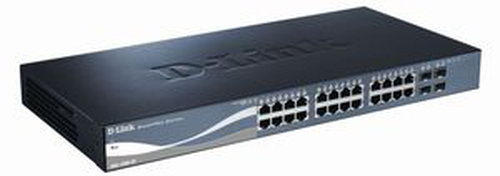

D-Link DWS-3160-24PC network switch Managed L2+ Power over Ethernet (PoE) 1U
Model DWS-3160-24PCPart no. DIR-3160-24PCEAN 7900693681278
57 specifications
- Speed1 Gbit/s
- Noise39.8 dB
- Type1U
- Weight5.24 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity20
Overview
- Speed
- 1 Gbit/s
- Noise
- 39.8 dB
- Type
- 1U
- Weight
- 5.24 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- Brand
- D-Link
- Category
- Network Switch
- Model
- DWS-3160-24PC
- Part numbers
- DIR-3160-24PC, DWS-3160-24PC, DWS-3160-24PC+6600AP, DWS-3160-24PC+3600AP
- EAN / UPC
- 7900693681278, 650759125921, 710579352386, 745449883561 +5 more
- Also known as
- D-Link DWS-3160-24PC network switch Managed L2+ Power over Ethernet (PoE) 1U
Specifications
57 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RJ-45 |
| HDMI stacking ports | 0 |
| PCI-X slots | 0 |
| ExpressCard slot | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 3965 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 1 Gbit/s |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Number of static routes | 512 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA2 |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, 2c, 3 |
| Supported network protocols | IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| LED indicators | Yes |
| Safety | UL/cUL, CB |
| Electromagnetic compatibility | FCC A, CE, ICES-003, C-Tick, VCCI |
Performance
| Specification | Value |
|---|---|
| Noise level | 39.8 dB |
| Mean time between failures (MTBF) | 282541 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 467 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1593.5 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 310 mm |
| Height | 44 mm |
| Weight | 5.24 kg |
