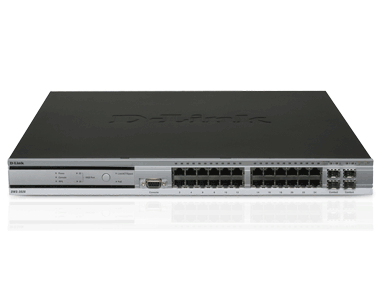

D-Link DWS-3026 network switch Managed L2+ Power over Ethernet (PoE) Black
Model DWS-3026EAN 790069288722
45 specifications
- Speed1 Gbit/s
- ConnectivityWireless
- Weight6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wireless
- Weight
- 6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- D-Link
- Category
- Network Switch
- Model
- DWS-3026
- Part number
- DWS-3026
- EAN / UPC
- 790069288722, 790069288784, 790069288845
- Also known as
- D-Link DWS-3026 network switch Managed L2+ Power over Ethernet (PoE) Black
Specifications
45 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | No |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 88 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Safety | UL/cUL, CB |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 460 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 440 x 389 x 44 mm |
| Connectivity technology | Wireless |
| Performance management | CLI, Telnet Server, Telnet Client, TFTP ClientSNMP v1, v2c, v3 |
| Wi-Fi | Yes |
| Connectivity LEDs | Power, Console, RPS |
| Electromagnetic emissions | FCC Class A, ICES-003. VCCI, CE,C-Tick |
| Non-operating relative humidity (non-condensing) | 10 - 90% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1569.61 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6 kg |
