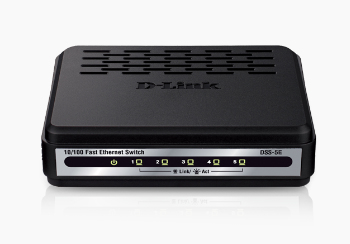

D-Link DSS-5E network switch Unmanaged Black
Model DSS-5EEAN 132017844039
39 specifications
- Speed0.2 Gbit/s
- ConnectivityWired
- Weight90 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
Overview
- Speed
- 0.2 Gbit/s
- Connectivity
- Wired
- Weight
- 90 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Brand
- D-Link
- Category
- Network Switch
- Model
- DSS-5E
- Part number
- DSS-5E
- EAN / UPC
- 132017844039, 790069342424
- Also known as
- D-Link DSS-5E network switch Unmanaged Black
Specifications
39 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|

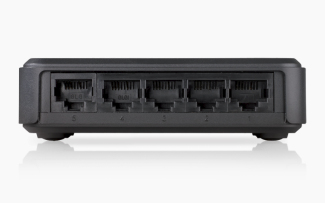

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Fast Ethernet (copper) ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Supported data transfer rates | 10, 20, 100, 200Mbps |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1516996 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Packet transfer speed | 148800 pps |
| Power LED | Yes |
| Power requirements | 5VDC, 1A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 97 mm |
| Depth | 79 mm |
| Height | 28 mm |
| Weight | 90 g |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 103 mm |
| Package height | 95 mm |
| Package weight | 300 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC ICES-003 CE C-Tick cUL CB |
