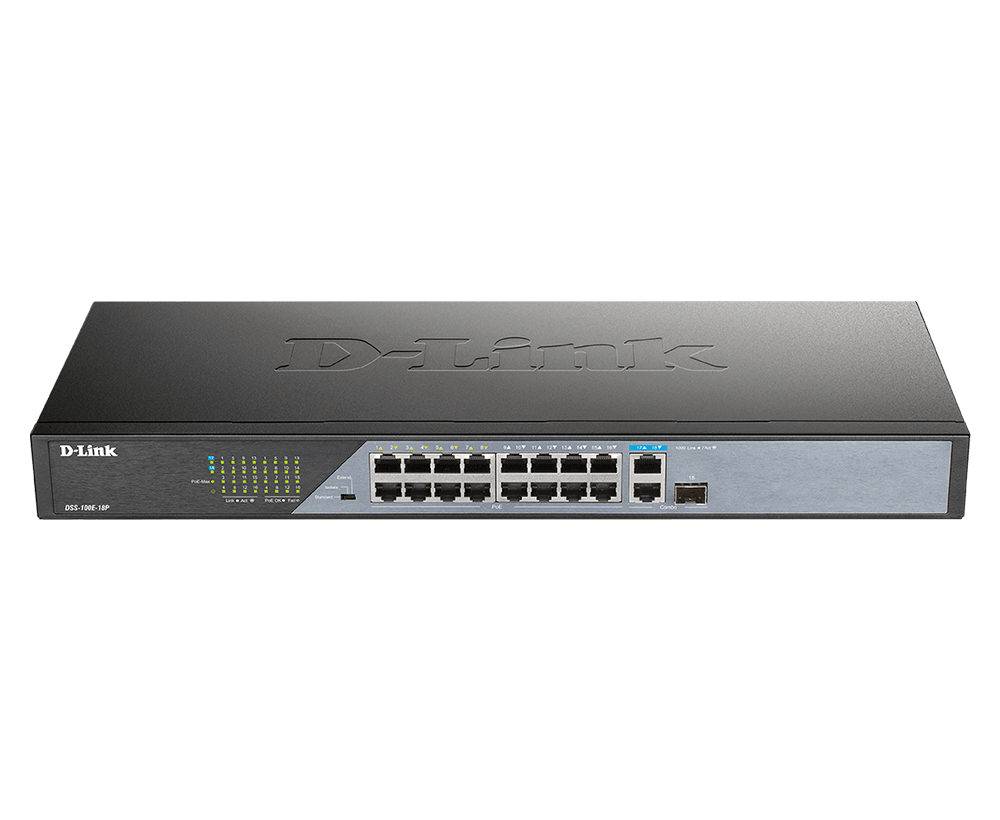

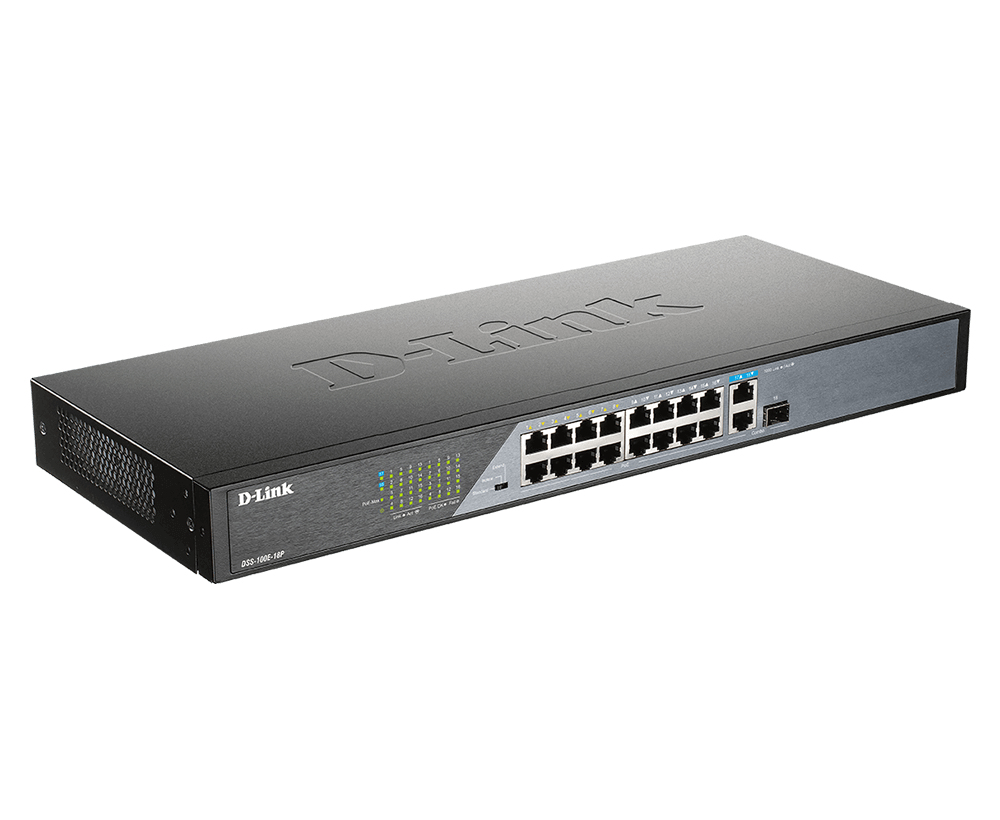

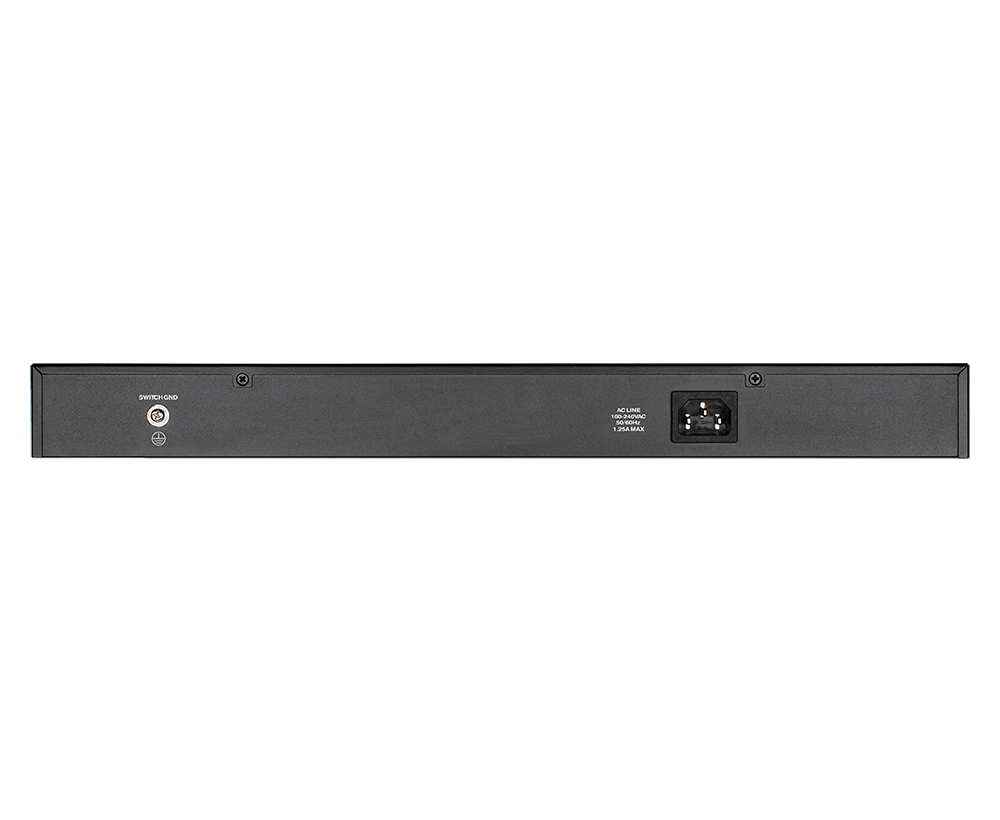

DSS-100E-18P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model DSS-100E-18PEAN 790069449819
38 specifications
- Weight2.14 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table4000 entries
Overview
- Weight
- 2.14 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DSS-100E-18P
- Part number
- DSS-100E-18P
- EAN / UPC
- 790069449819
- Also known as
- D-Link DSS-100E-18P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
38 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 7.2 Gbit/s |
| Forwarding rate | 5.36 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 0.352 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 30000 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 265 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 230 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 120 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 178 mm |
| Height | 44 mm |
| Weight | 2.14 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC61000-4-5 CE, RoHS, C-Tick |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
