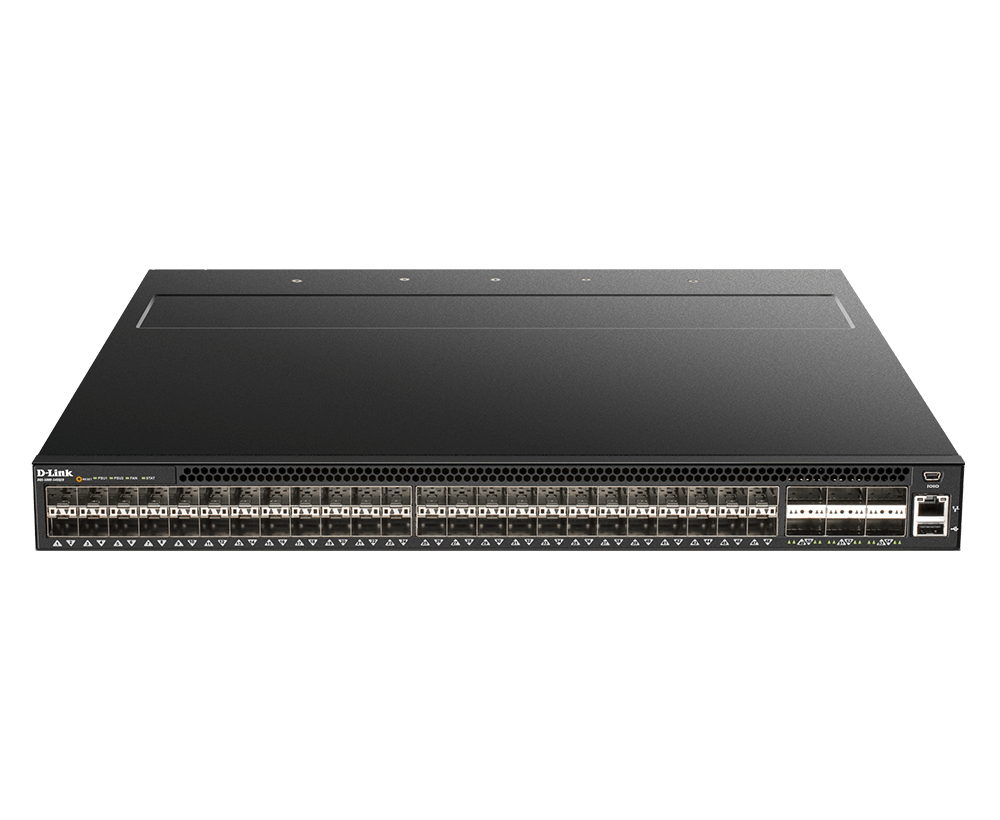

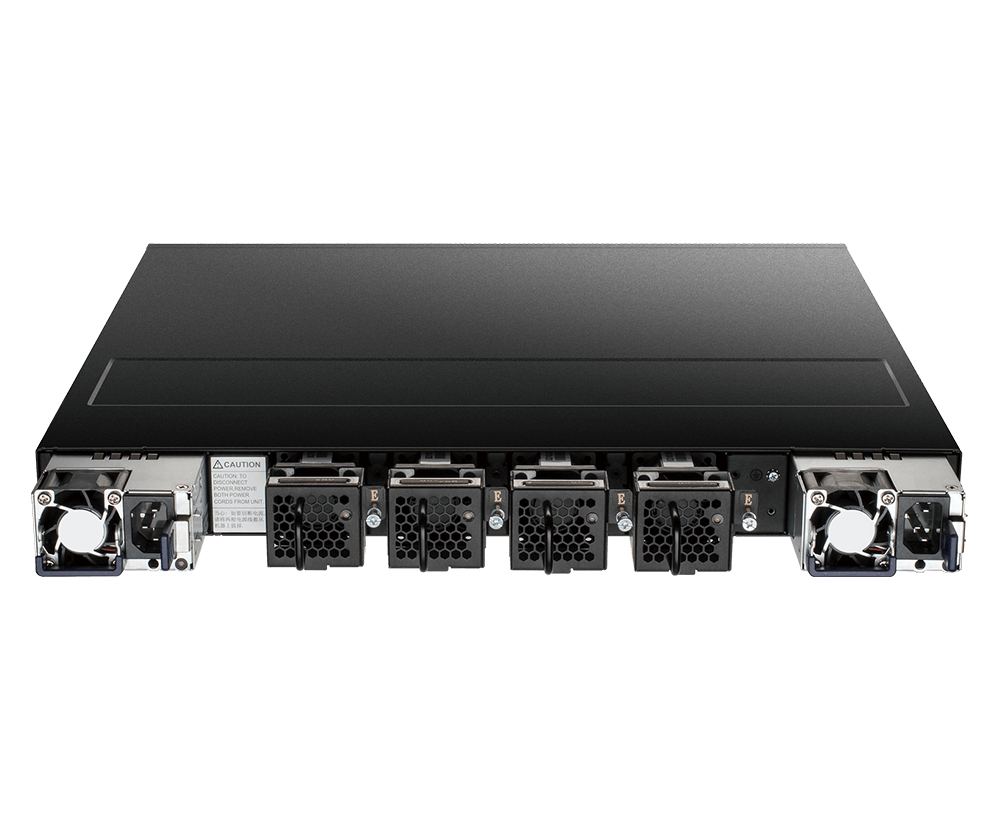

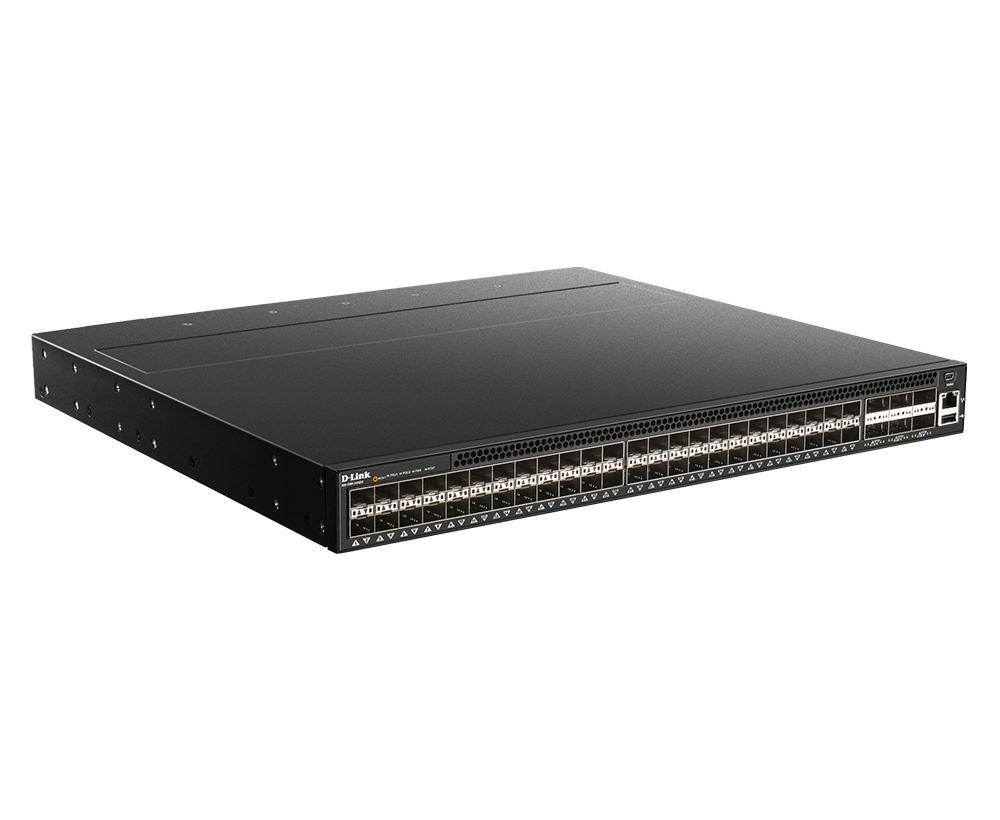

DQS-5000-54SQ28 Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model DQS-5000-54SQ28Part no. DQS-5000-54SQ28/SIEAN 790069457067
48 specifications
- Noise72.3 dB
- Type1U
- Weight9 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity1
Overview
- Noise
- 72.3 dB
- Type
- 1U
- Weight
- 9 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 1
- Brand
- D-Link
- Category
- Network Switch
- Model
- DQS-5000-54SQ28
- Part number
- DQS-5000-54SQ28/SI
- EAN / UPC
- 790069457067
- Also known as
- D-Link DQS-5000-54SQ28 Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | USB |
| QSFP28 ports quantity | 6 |
| SFP28 ports quantity | 48 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x |
| Ethernet LAN data rates | 25000,100000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 40000 entries |
| Switching capacity | 3600 Gbit/s |
| Forwarding rate | 2380 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP snooping, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 1000 |
| Access Control List (ACL) egress | 16000 |
| Access Control List (ACL) ingress | 16000 |
| Security algorithms | SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 72.3 dB |
| Mean time between failures (MTBF) | 205500 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 395 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1347.74 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 406 mm |
| Height | 44 mm |
| Weight | 9 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
