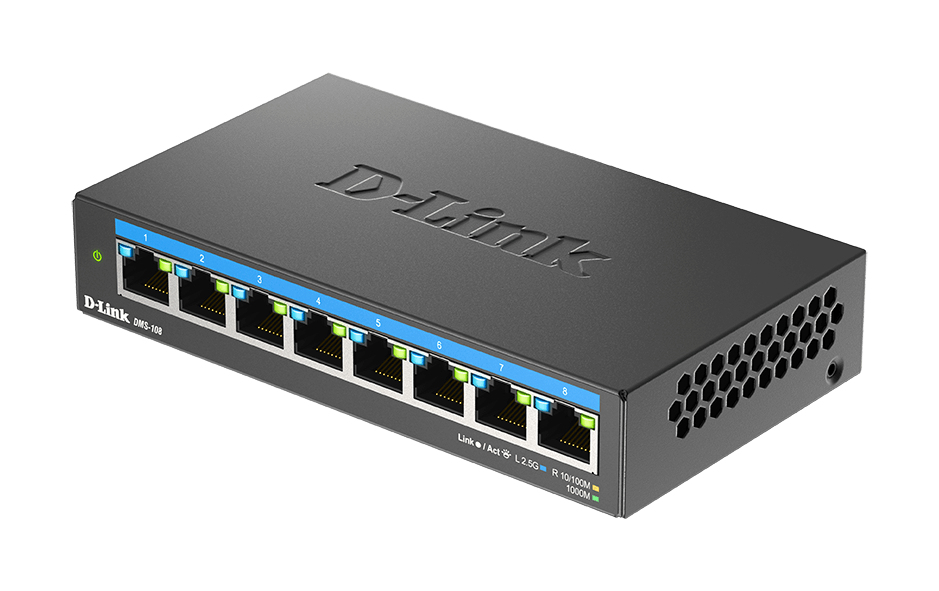

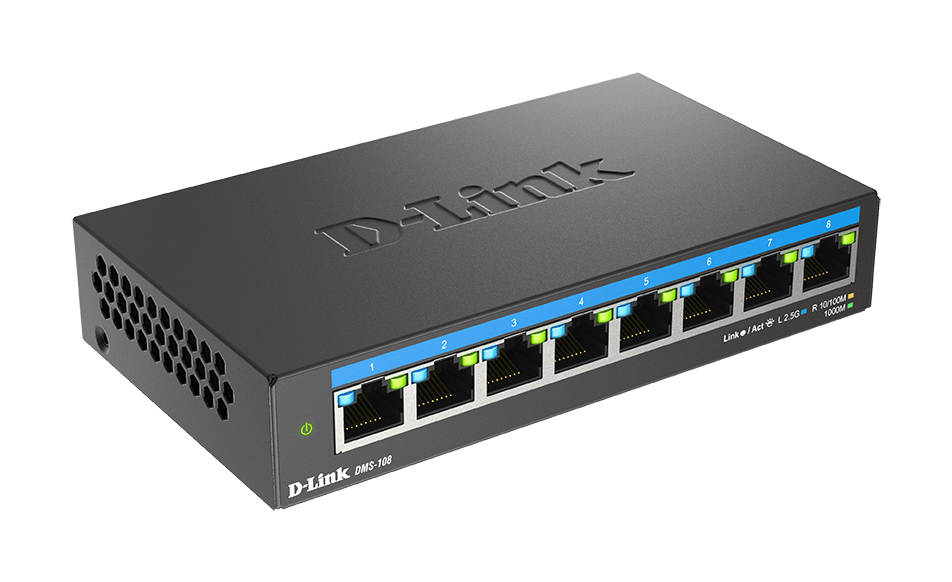

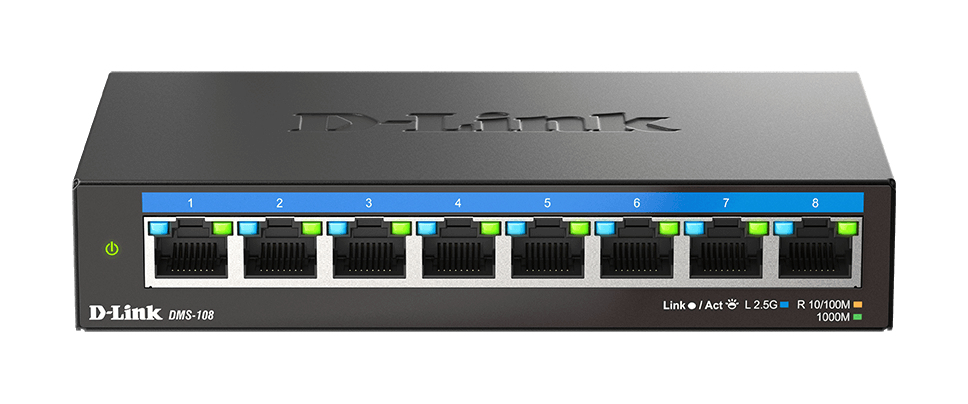

8-Port 2.5G Multi-Gigabit Desktop Switch
Model DMS-108Part no. DMS-108/EEAN 790069469459
42 specifications
- Weight343 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4000 entries
Overview
- Weight
- 343 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DMS-108
- Part number
- DMS-108/E
- EAN / UPC
- 790069469459, 790069470509, 790069470523
- Also known as
- D-Link 8-Port 2.5G Multi-Gigabit Desktop Switch
Specifications
42 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 29.76 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Packet buffer memory | 8.1 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
| Mean time between failures (MTBF) | 724033.96 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 8.586 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 29.3 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 82 mm |
| Height | 28 mm |
| Weight | 343 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, Low Voltage Directive (LVD), RoHS |
