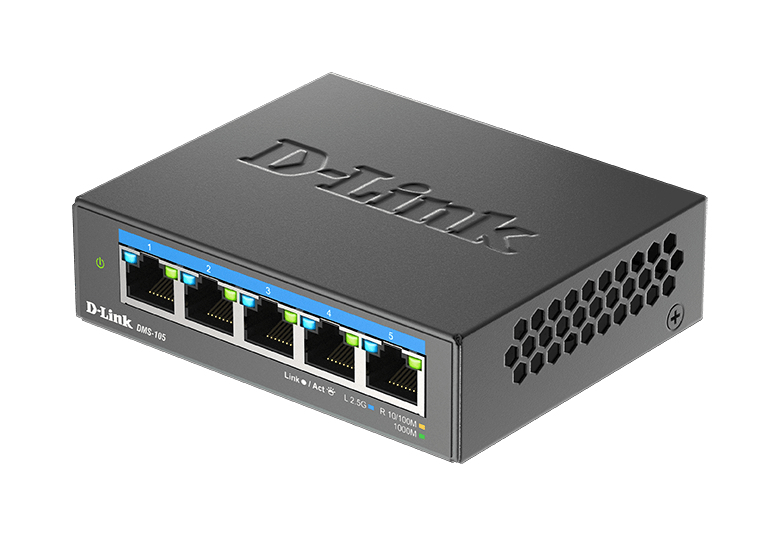

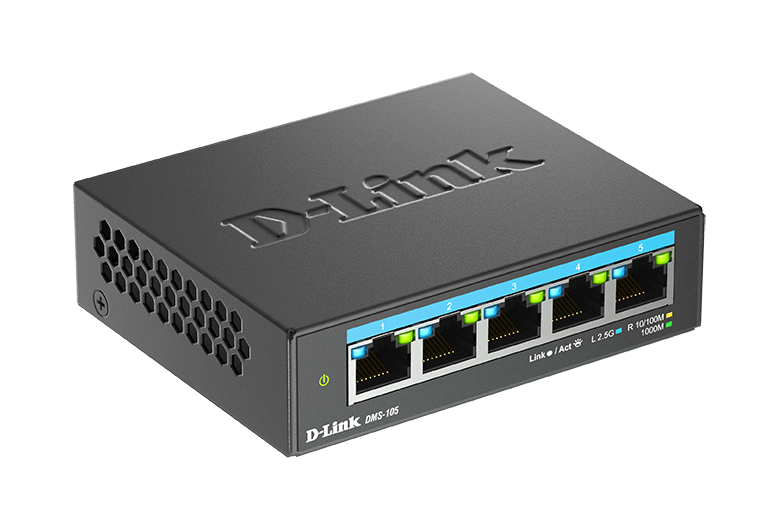

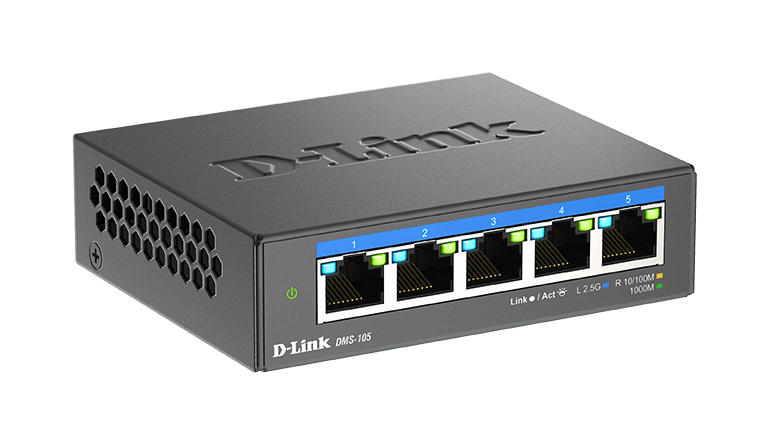

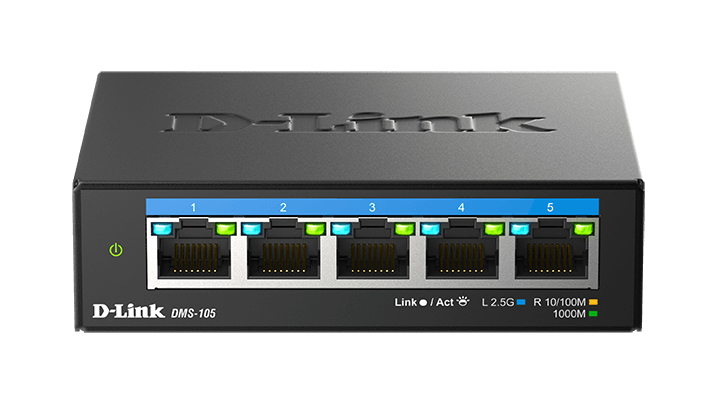

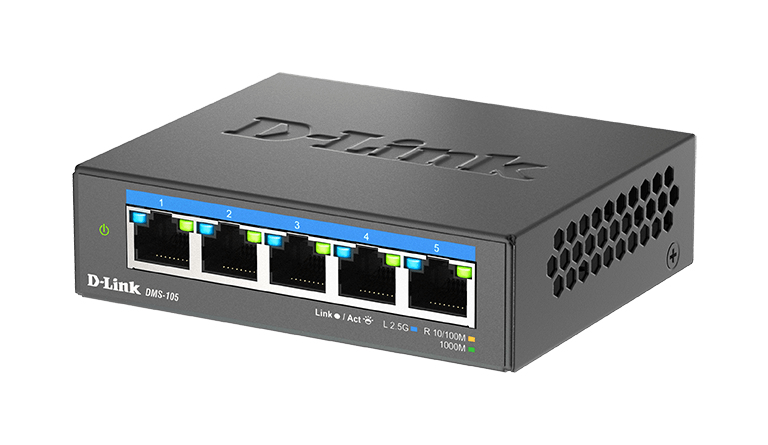

5-Port 2.5G Multi-Gigabit Desktop Switch
Model DMS-105Part no. DMS-105/EEAN 790069469305
40 specifications
- Weight238.6 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table4000 entries
Overview
- Weight
- 238.6 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DMS-105
- Part number
- DMS-105/E
- EAN / UPC
- 790069469305, 790069470554, 790069470578, 7900694693058
- Also known as
- D-Link 5-Port 2.5G Multi-Gigabit Desktop Switch
Specifications
40 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 8.1 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
| Mean time between failures (MTBF) | 765190 h |

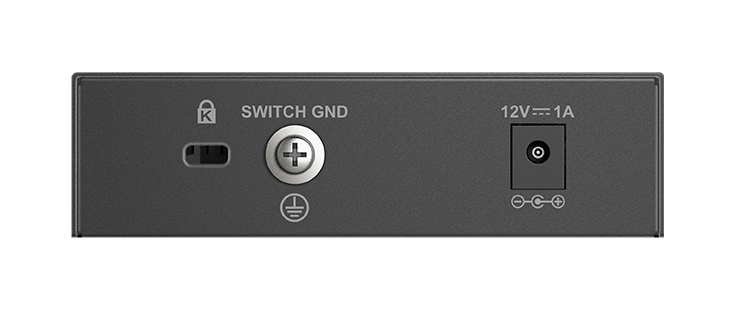

Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 4.918 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 16.78 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100.5 mm |
| Depth | 82 mm |
| Height | 28 mm |
| Weight | 238.6 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, Low Voltage Directive (LVD), RoHS |
