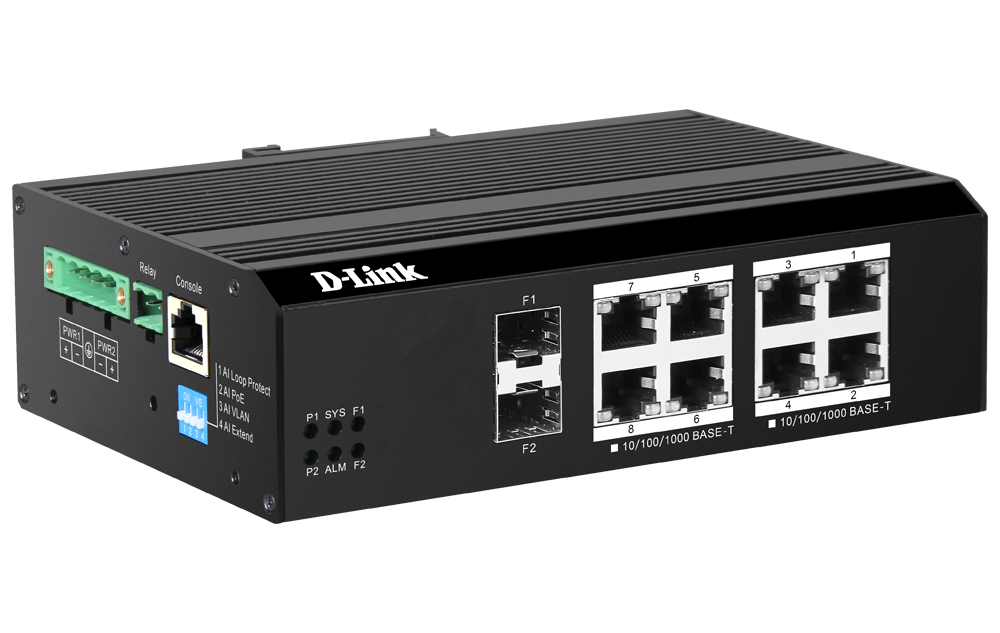

DIS-F200G-10PS-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model DIS-F200G-10PS-EEAN 790069202148
39 specifications
- Weight750 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 750 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DIS-F200G-10PS-E
- Part number
- DIS-F200G-10PS-E
- EAN / UPC
- 790069202148
- Also known as
- D-Link DIS-F200G-10PS-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
39 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.9 Mpps |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| DIN rail mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | No |
| DC input voltage | 48 - 56 V |
| Power consumption (max) | 240 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 35 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 159 mm |
| Depth | 105 mm |
| Height | 39 mm |
| Weight | 750 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
