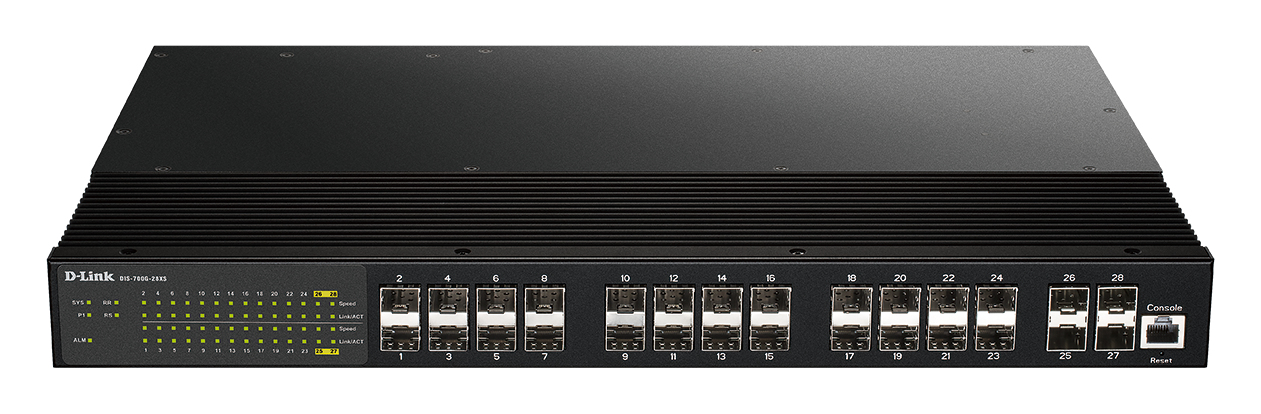

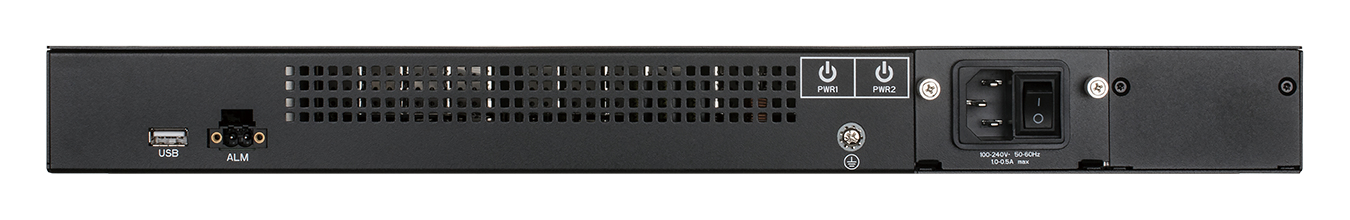

D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port
10G SFP+
Model DIS-700G-28XSEAN 790069437953
48 specifications
- Type1U
- Weight4.5 kg
- ColourBlack
- Switch typeManaged
- SFP module slots quantity24
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 4.5 kg
- Colour
- Black
- Switch type
- Managed
- SFP module slots quantity
- 24
- 10G support
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DIS-700G-28XS
- Part number
- DIS-700G-28XS
- EAN / UPC
- 790069437953
- Also known as
- D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port 10G SFP+
Specifications
48 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Traffic shaping | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x |
| 10G support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 318.5 mm |
| Height | 44 mm |
| Weight | 4.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 430 mm |
| Package depth | 570 mm |
| Package height | 110 mm |
| Package weight | 5.83 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross weight (air) | 242.1 kg |
| Pallet gross weight (sea) | 467.2 kg |
| Pallet gross width | 110 cm |
| Pallet height (air) | 107.1 cm |
| Pallet height (sea) | 2.01 m |
| Products per pallet (air) | 36 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Products per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case gross weight | 18.8 kg |
| Shipping (inner) case height | 46.8 cm |
| Shipping (inner) case length | 58.2 cm |
| Shipping (inner) case net weight | 17.5 kg |
| Shipping (inner) case width | 35.7 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port
No reviews yet
Be the first to tell others how D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port
All network switch comparisons- D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port vsD-Link DGS-1100-08PD network switch Managed L2 Gigabit Ethernet (10/100/1000) Black, GreyCompare specs
- D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port vsD-Link 5-Port Unmanaged Industrial Switch withCompare specs
- D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port vsD-Link 10-Port Multi-Gigabit PoE+ Smart Managed SwitchCompare specs
- D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port vsD-Link DMS-1100-10TS network switch Managed L2Compare specs

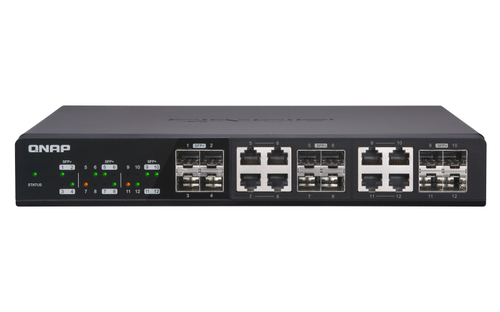

- D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port vsQNAP QSW-1208-8C network switch Unmanaged BlackCompare specs
- D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port vsAllied Telesis X550-18XSPQM Managed L2Compare specs

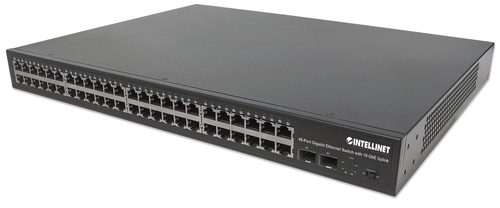

- D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port vsIntellinet 48-Port Gigabit Ethernet Switch with 10 GbE UplinkCompare specs
