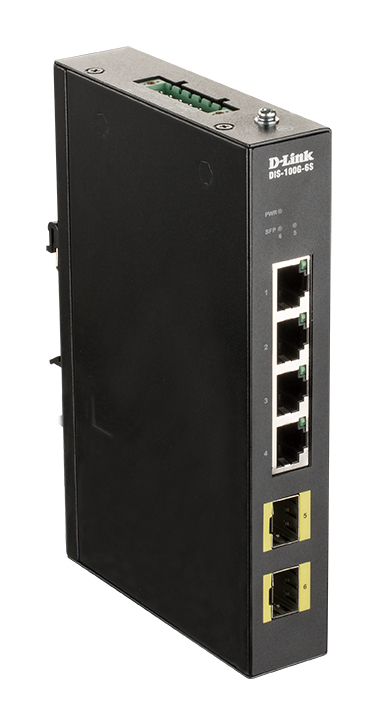

4-port Gigabit Industrial Switch including
2 x 100/1000M SFP
Model DIS-100G-6SEAN 790069455629
37 specifications
- TypeDIN rail
- Weight446 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- Copper ethernet cabling technology1000BASE-T
Overview
- Type
- DIN rail
- Weight
- 446 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Copper ethernet cabling technology
- 1000BASE-T
- Brand
- D-Link
- Category
- Network Switch
- Model
- DIS-100G-6S
- Part number
- DIS-100G-6S
- EAN / UPC
- 790069455629
- Also known as
- D-Link 4-port Gigabit Industrial Switch including 2 x 100/1000M SFP
Specifications
37 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Transmission method | Store-and-forward |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Form factor | DIN rail |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP40 |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
| Mean time between failures (MTBF) | 569768 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 12 - 48 V |
| Input current | 1 A |
| Power consumption (max) | 4.82 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 162 mm |
| Depth | 28 mm |
| Height | 102 mm |
| Weight | 446 g |
Certificates
| Specification | Value |
|---|---|
| Certification | 47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A) EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8 IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
