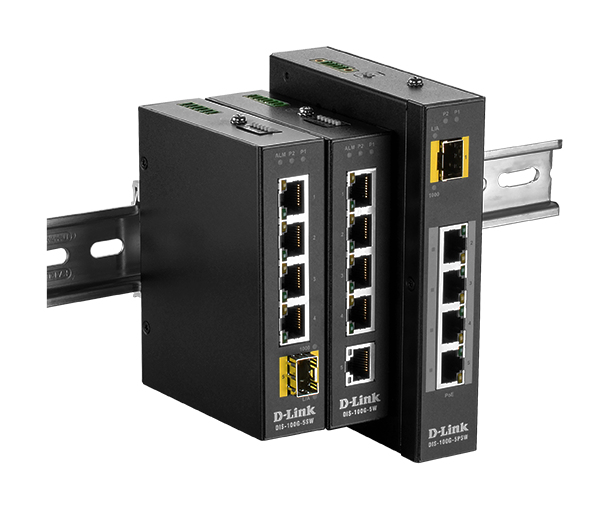

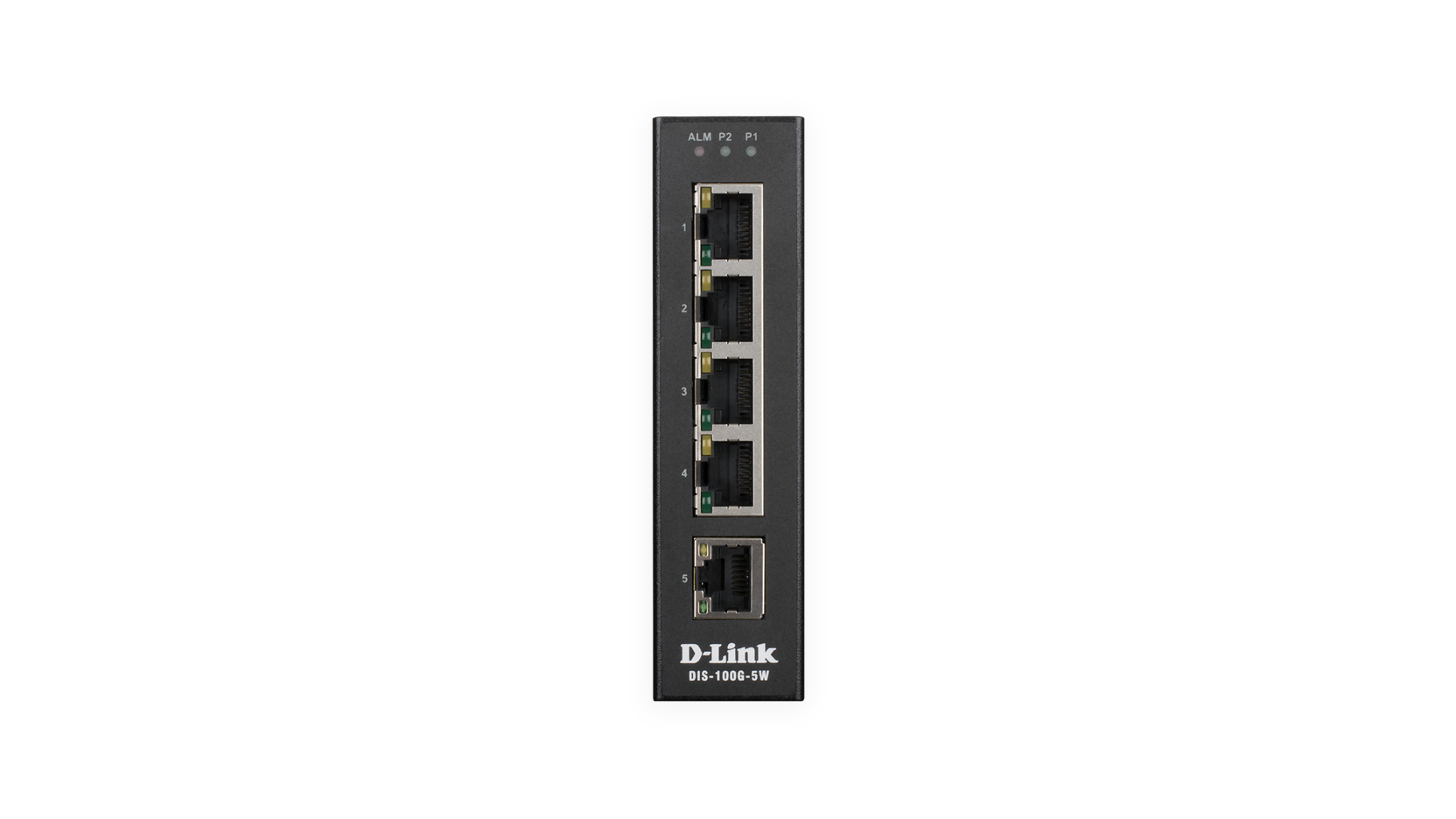

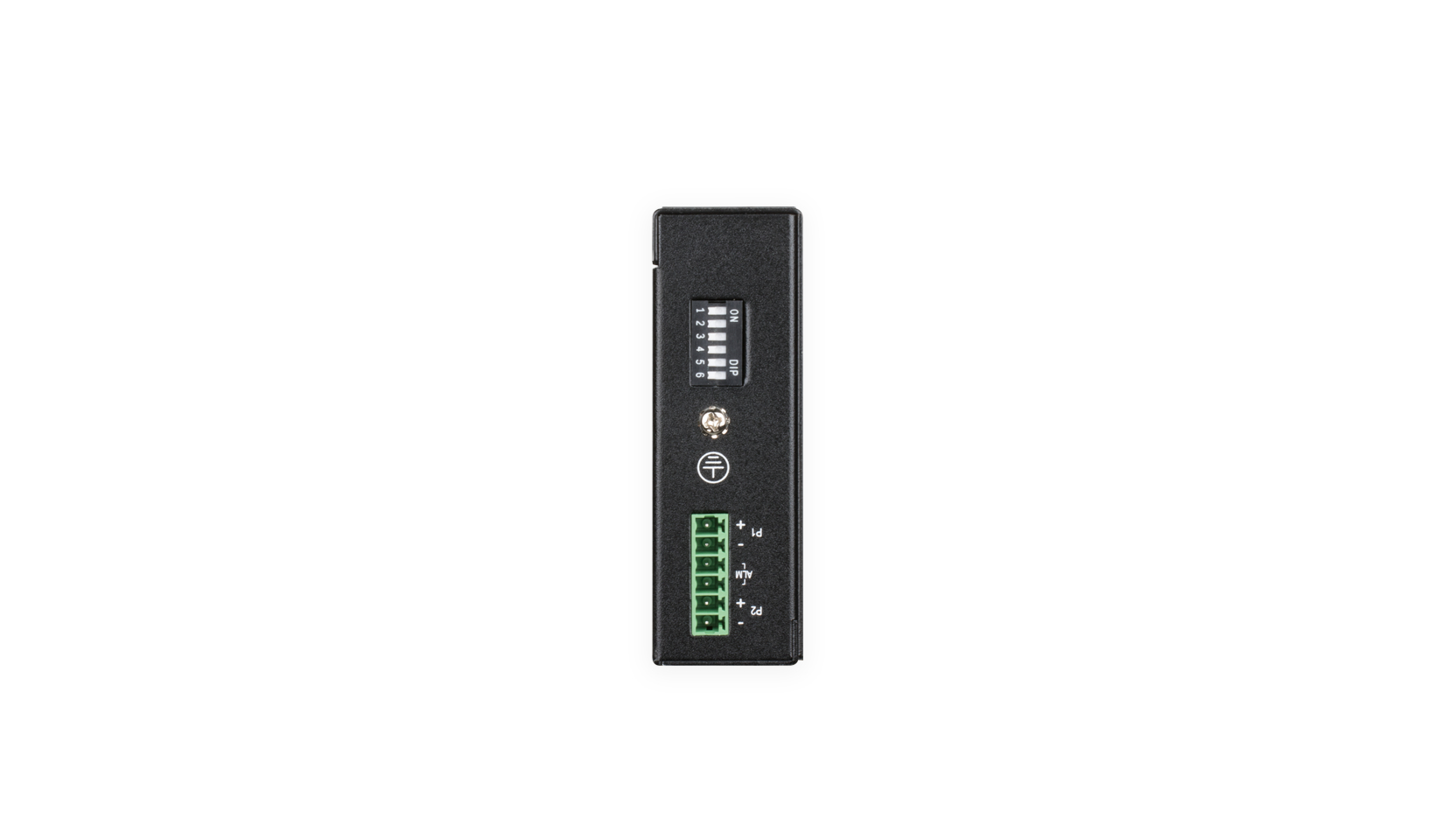

5-Port Unmanaged Industrial Switch with
5 x 10/100/1000BaseT(X)
Model DIS‑100G‑5WPart no. DIS-100G-5WEAN 790069437908
61 specifications
- Weight300 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 300 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DIS‑100G‑5W
- Part number
- DIS-100G-5W
- EAN / UPC
- 790069437908
- Also known as
- D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100/1000BaseT(X)
Specifications
61 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Traffic shaping | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | LAN, Power |

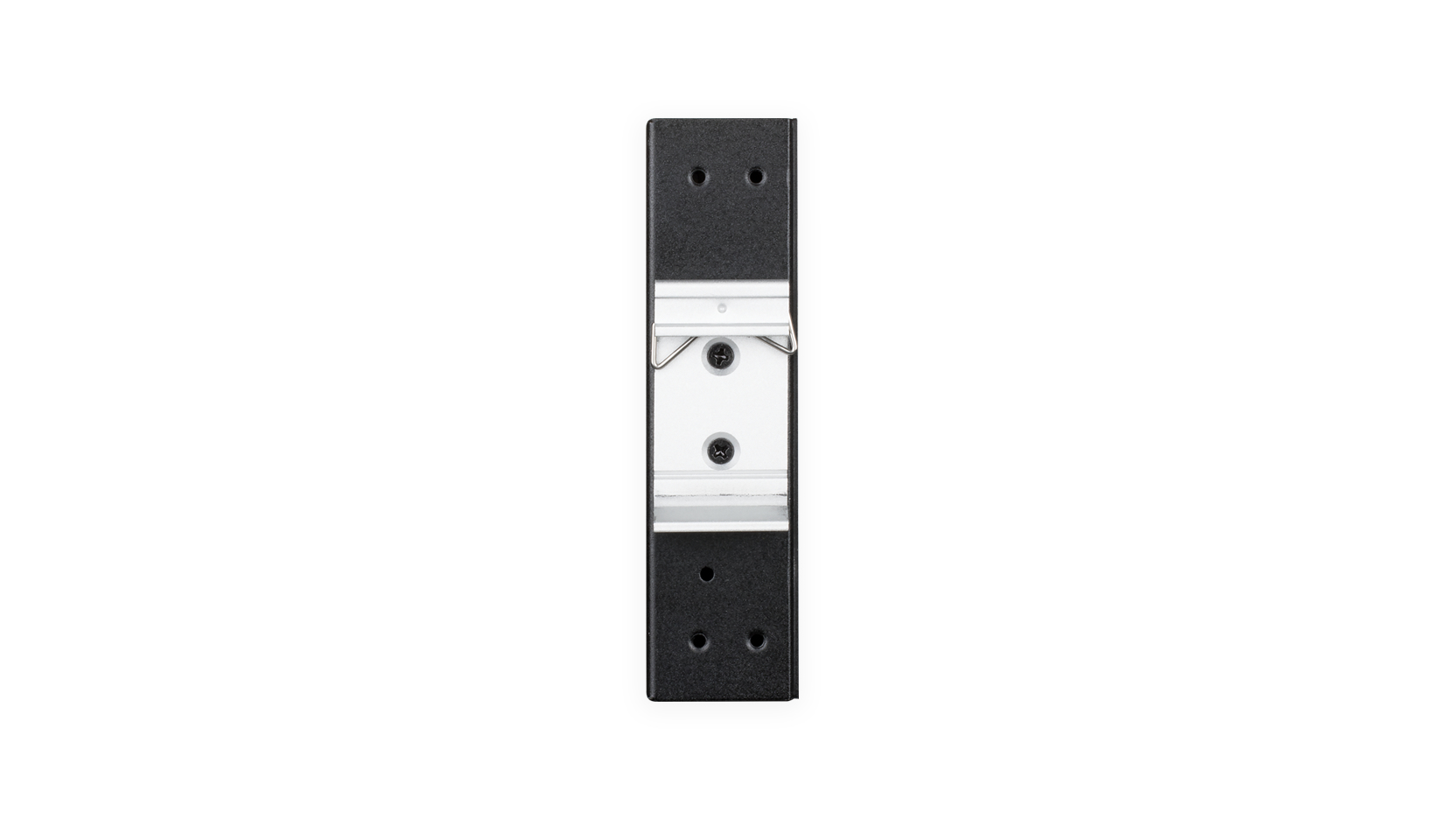

| DIN rail mounting | Yes |
| Wall mountable | Yes |
| Electromagnetic compatibility | FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3) |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 - 58 V |
| Power consumption (max) | 3.57 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 12.18 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 112.2 mm |
| Depth | 29.1 mm |
| Height | 89.4 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140 mm |
| Package depth | 178 mm |
| Package height | 83 mm |
| Package weight | 500 g |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross weight (air) | 220 kg |
| Pallet gross weight (sea) | 321.6 kg |
| Pallet gross width | 110 cm |
| Pallet height (air) | 136.5 cm |
| Pallet height (sea) | 198 cm |
| Products per pallet (air) | 360 pc(s) |
| Products per pallet (sea) | 540 pc(s) |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case gross weight | 5.64 kg |
| Shipping (inner) case height | 20.5 cm |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case net weight | 5 kg |
| Shipping (inner) case width | 30.5 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
