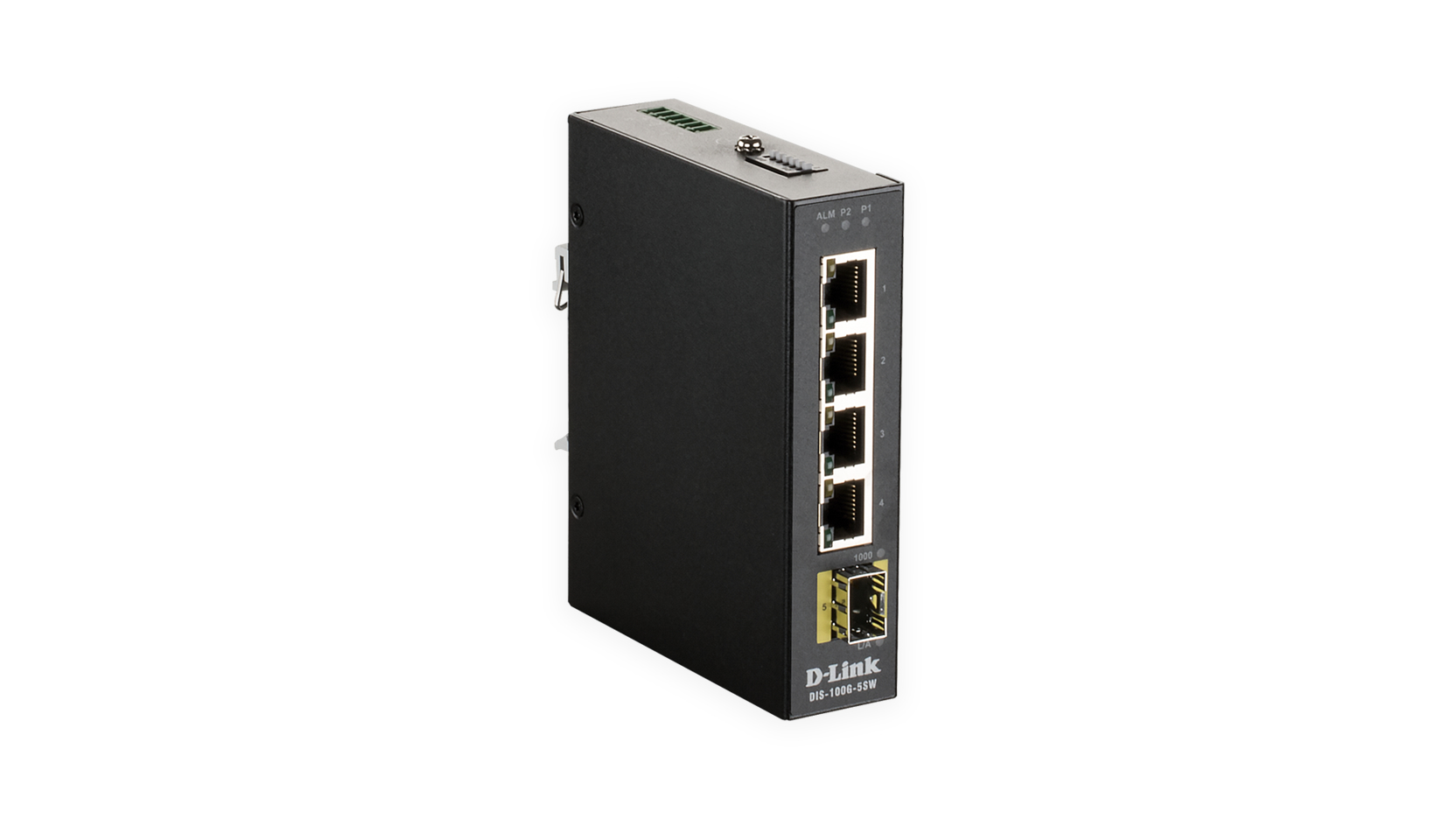

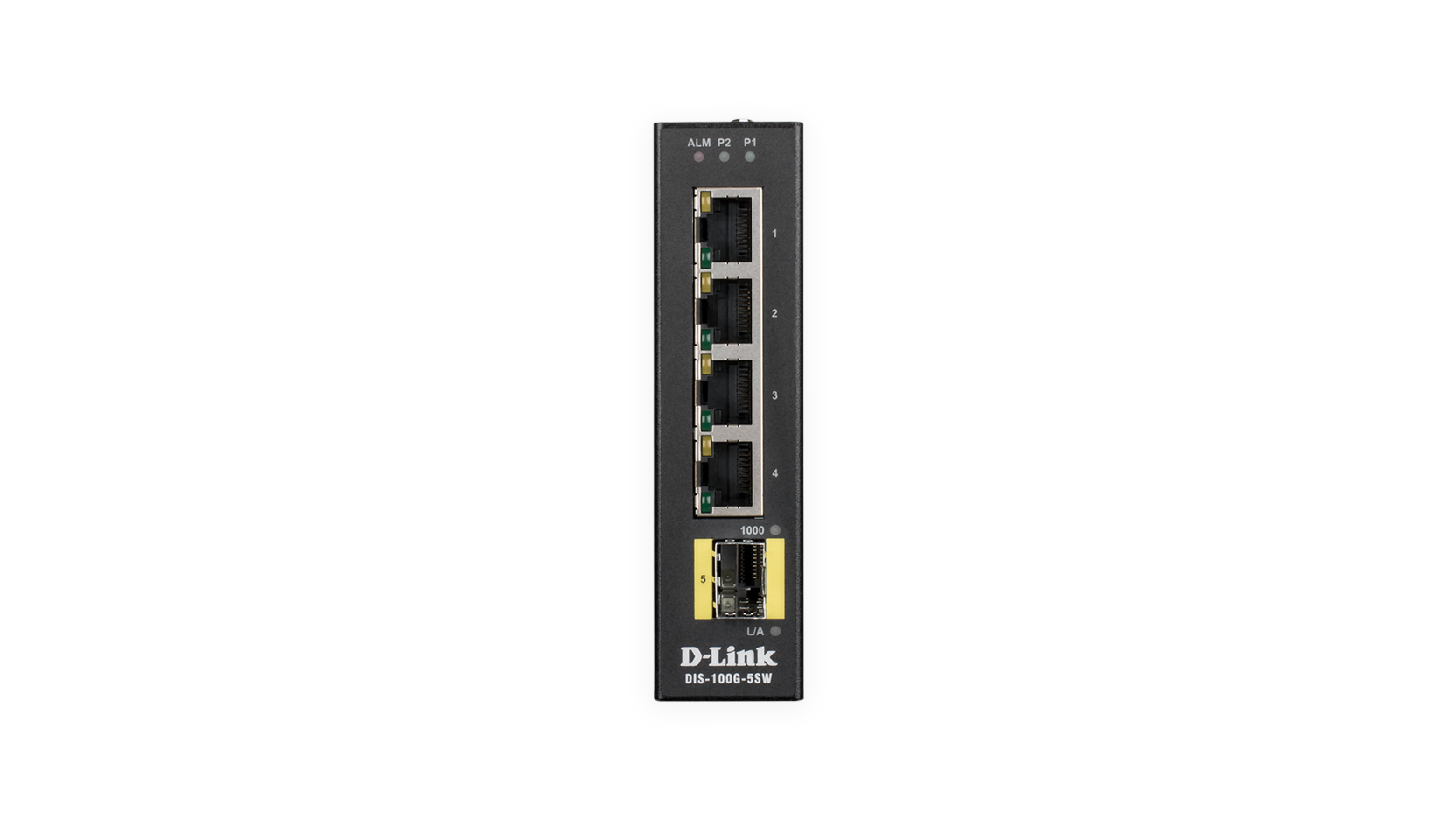

D-Link 5-Port Unmanaged Industrial Switch with

4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP

Model DIS‑100G‑5SWPart no. DIS-100G-5SWEAN 790069437892

64 specifications

Overview

Brand: D-Link
Category: Network Switch
Model: DIS‑100G‑5SW
Part number: DIS-100G-5SW
EAN / UPC: 790069437892, 790069448300
Also known as: D-Link 5-Port Unmanaged Industrial Switch with 4 x 10/100/1000BaseT(X) & 1 x 100/1000BaseSFP

64 specifications in 14 groups

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	1
Fiber optic connector	LC

Specification	Value
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Broadcast storm control	Yes
Flow control support	Yes

Specification	Value
Multicast support	Yes

Specification	Value
Product colour	Black
LED indicators	LAN, Power

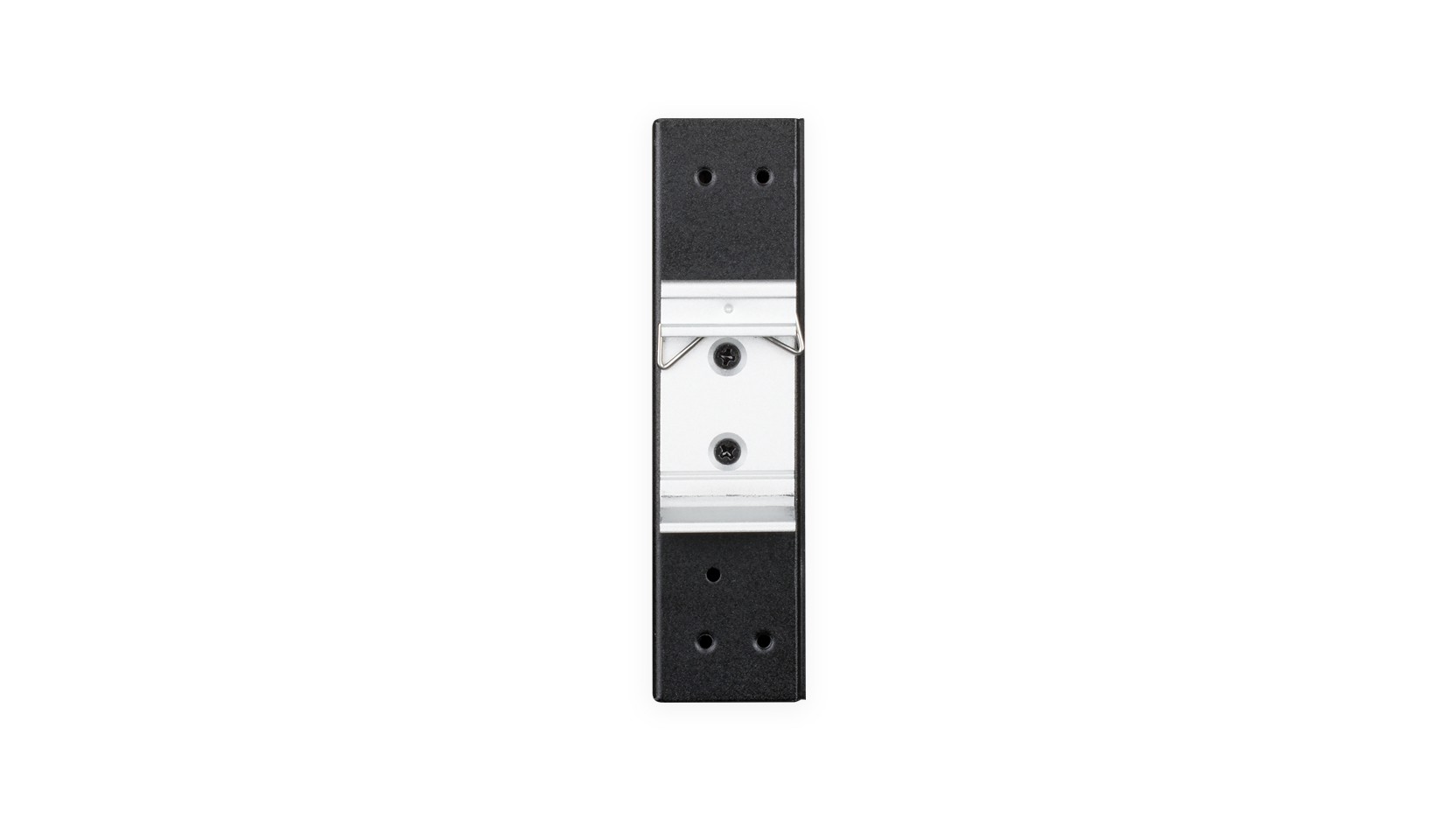

DIN rail mounting	Yes
Wall mountable	Yes
Electromagnetic compatibility	FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)

Specification	Value

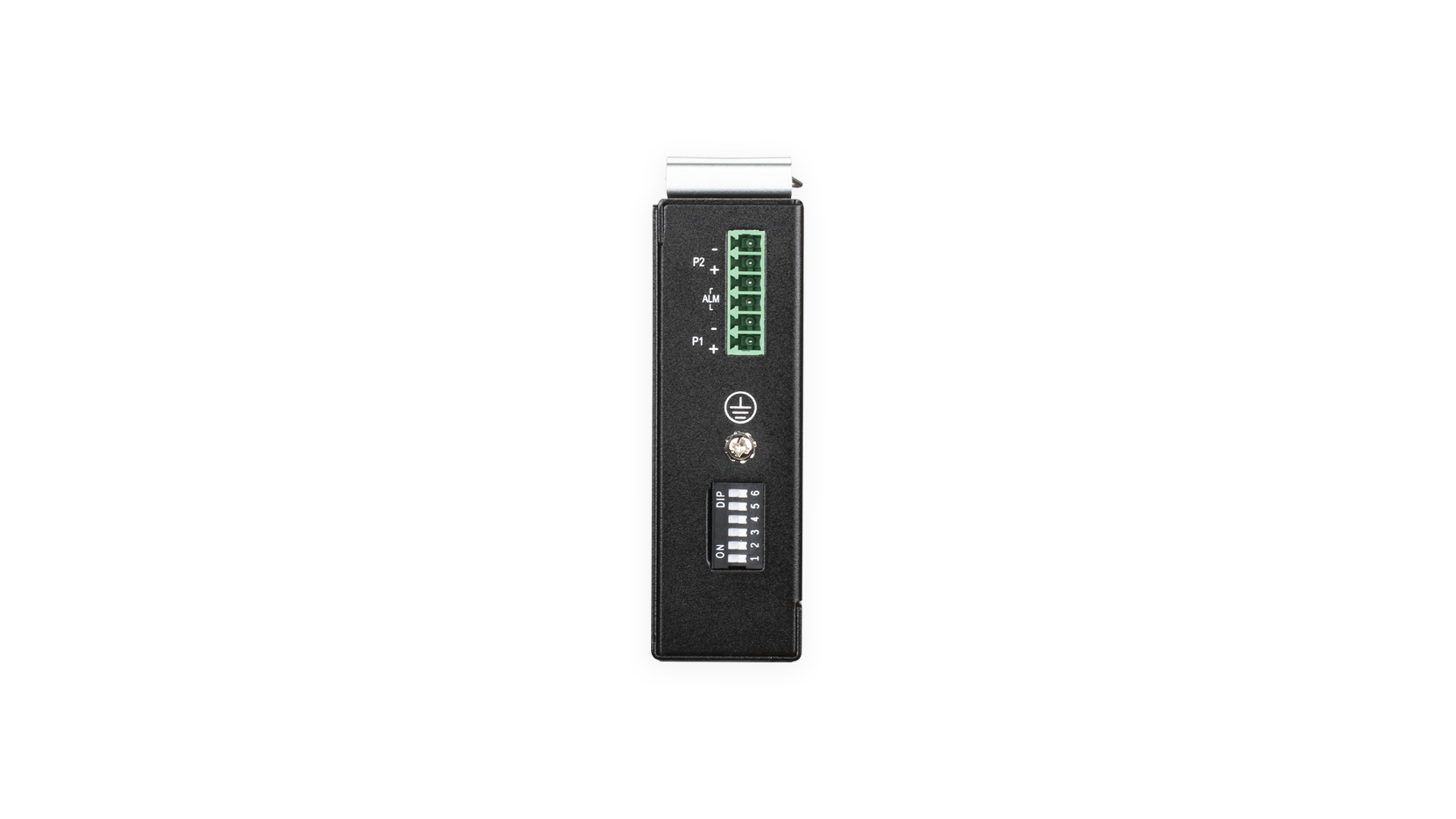

DC input voltage	12 - 58 V
Power consumption (typical)	2.74 W
Power consumption (max)	3.57 W
Power protection features	Over current, Reverse polarity

Specification	Value
Power over Ethernet (PoE)	No

Specification	Value
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	12.18 BTU/h

Specification	Value
Master (outer) cases per pallet (air)	36 pc(s)
Master (outer) cases per pallet (sea)	54 pc(s)
Pallet gross length	120 cm
Pallet gross weight (air)	220 kg
Pallet gross weight (sea)	321.6 kg
Pallet gross width	110 cm
Pallet height (air)	136.5 cm
Pallet height (sea)	198 cm
Products per pallet (air)	360 pc(s)
Products per pallet (sea)	540 pc(s)
Products per shipping (inner) case	10 pc(s)
Shipping (inner) case gross weight	5.64 kg
Shipping (inner) case height	20.5 cm
Shipping (inner) case length	44 cm
Shipping (inner) case net weight	5 kg
Shipping (inner) case width	30.5 cm

Specification	Value
Certification	IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE

Specification	Value
Harmonized System (HS) code	85176990
