D-Link 5-Port Unmanaged Industrial Switch with
5 x 10/100 BaseT(X) ports
Model DIS-100E-5WEAN 790069441271
58 specifications
- Weight320 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3x
- MAC address table1000 entries
Overview
- Weight
- 320 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3x
- MAC address table
- 1000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DIS-100E-5W
- Part number
- DIS-100E-5W
- EAN / UPC
- 790069441271
- Also known as
- D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100 BaseT(X) ports
Specifications
58 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Relay outputs | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 219000 h |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 - 58 V |
| Power consumption (typical) | 0.95 W |
| Power consumption (max) | 1.56 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 29.1 mm |
| Depth | 89.4 mm |
| Height | 109.2 mm |
| Weight | 320 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140 mm |
| Package depth | 178 mm |
| Package height | 83 mm |
| Package weight | 488 g |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross weight (air) | 226.4 kg |
| Pallet gross weight (sea) | 330.7 kg |
| Pallet gross width | 110 cm |
| Pallet height (air) | 135 cm |
| Pallet height (sea) | 195 cm |
| Products per pallet (air) | 360 pc(s) |
| Products per pallet (sea) | 540 pc(s) |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case gross weight | 5.79 kg |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case length | 43 cm |
| Shipping (inner) case net weight | 5.78 kg |
| Shipping (inner) case width | 30.5 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 60950‑1 CE FCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare D-Link 5-Port Unmanaged Industrial Switch with

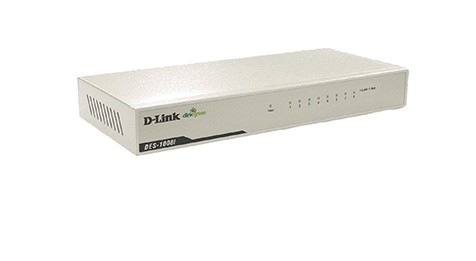

Compare any products- D-Link 5-Port Unmanaged Industrial Switch with vsD-Link DES-1008I/RM network switch Unmanaged Fast Ethernet (10/100) GreyCompare specs

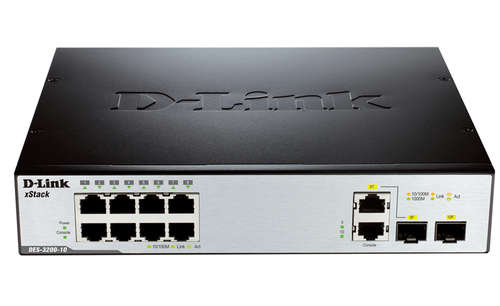

- D-Link 5-Port Unmanaged Industrial Switch with vsD-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, SilverCompare specs
