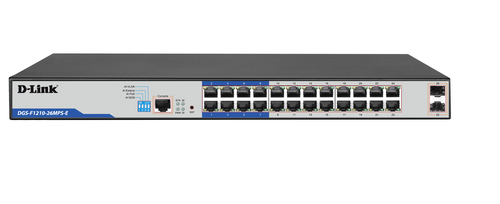

DGS-F1210-26MPS-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model DGS-F1210-26MPS-EEAN 790069321245
73 specifications
- Noise45 dB
- Weight5 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Noise
- 45 dB
- Weight
- 5 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-F1210-26MPS-E
- Part number
- DGS-F1210-26MPS-E
- EAN / UPC
- 790069321245
- Also known as
- D-Link DGS-F1210-26MPS-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
73 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Cable types supported | Cat5e |
| Port mirroring | Yes |
| Active link detection | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.7 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Password protection | Yes |
| Queue scheduling algorithms | SP, WFQ, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast features | Interface-based multicast traffic statistics |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | PoE, Power, System |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 45 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 18 W |
| Power consumption (max) | 400 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 380 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 293 mm |
| Height | 44 mm |
| Weight | 5 kg |
