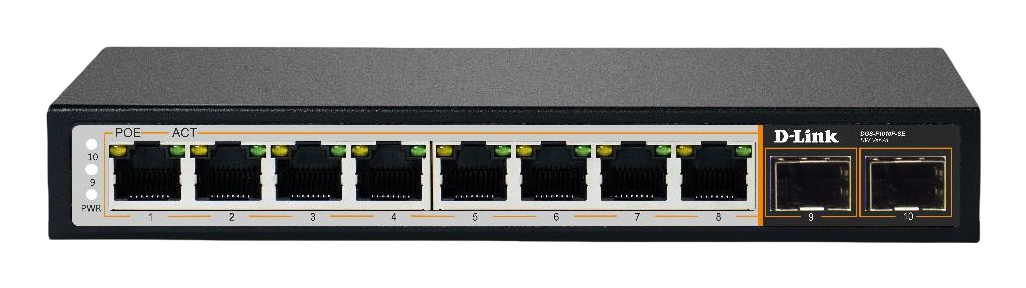

DGS-F1010P-SE network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black
Model DGS-F1010P-SEEAN 8908017978577
31 specifications
- TypeDesktop
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportNo
- Maximum transfer distance (Single-mode)250 m
Overview
- Type
- Desktop
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- No
- Maximum transfer distance (Single-mode)
- 250 m
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-F1010P-SE
- Part number
- DGS-F1010P-SE
- EAN / UPC
- 8908017978577
- Also known as
- D-Link DGS-F1010P-SE network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black
Specifications
31 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Maximum transfer distance (Single-mode) | 250 m |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Activity, Power, PoE, Link |
Performance
| Specification | Value |
|---|---|
| Fanless | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power consumption (typical) | 120 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184 mm |
| Depth | 94 mm |
| Height | 27 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
