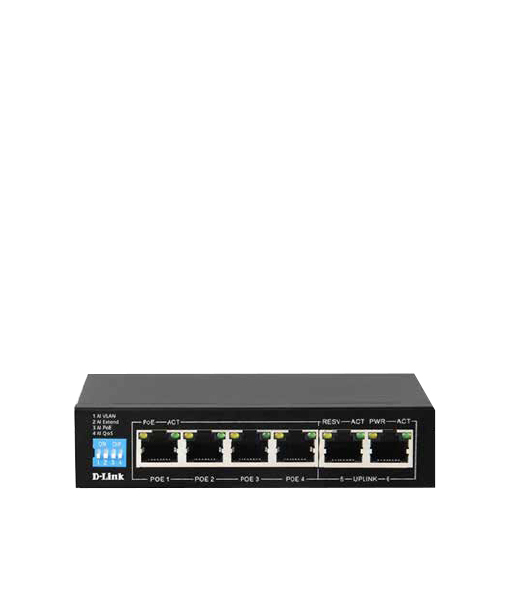

DGS-F1006P-E network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model DGS-F1006P-EEAN 790069201226
33 specifications
- Weight750 g
- ColourBlack
- Quality of Service (QoS) supportYes
- Basic switching RJ-45 Ethernet ports quantity6
- 10G supportNo
- Switching capacity12 Gbit/s
Overview
- Weight
- 750 g
- Colour
- Black
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 6
- 10G support
- No
- Switching capacity
- 12 Gbit/s
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-F1006P-E
- Part number
- DGS-F1006P-E
- EAN / UPC
- 790069201226, 8908017978560
- Also known as
- D-Link DGS-F1006P-E network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
33 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Active link detection | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Power
| Specification | Value |
|---|---|
| Power source | PoE |
| Power supply included | Yes |
| Power consumption (typical) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 27 mm |
| Height | 125 mm |
| Weight | 750 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, LVD |
