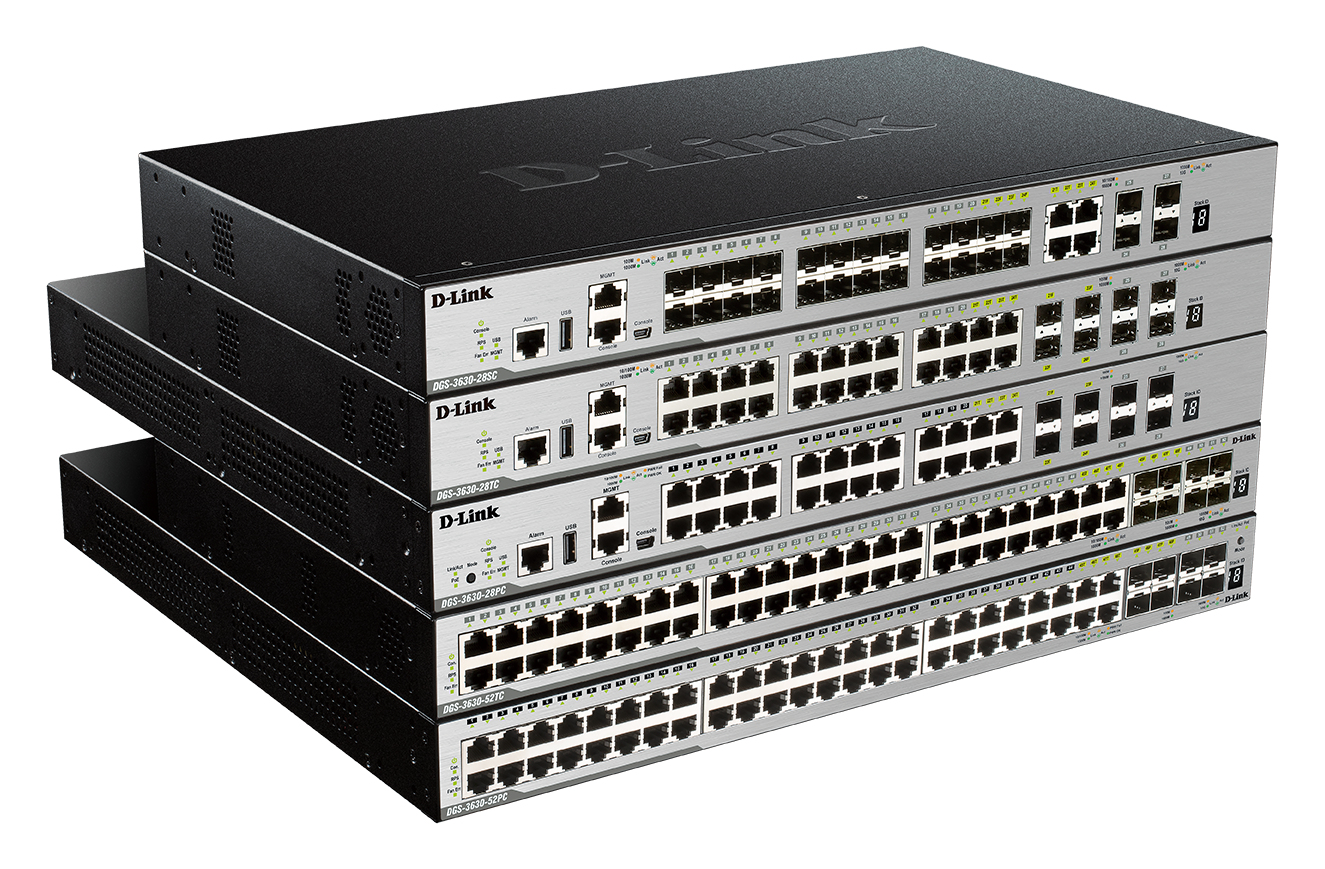

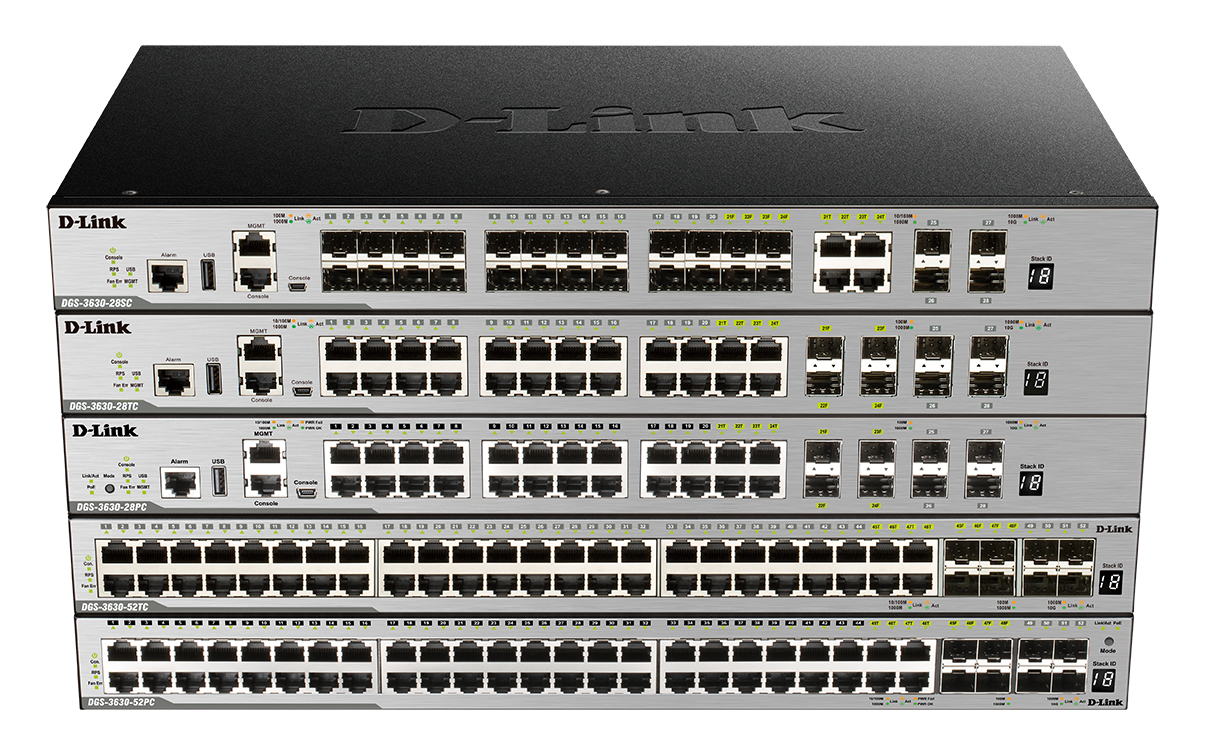

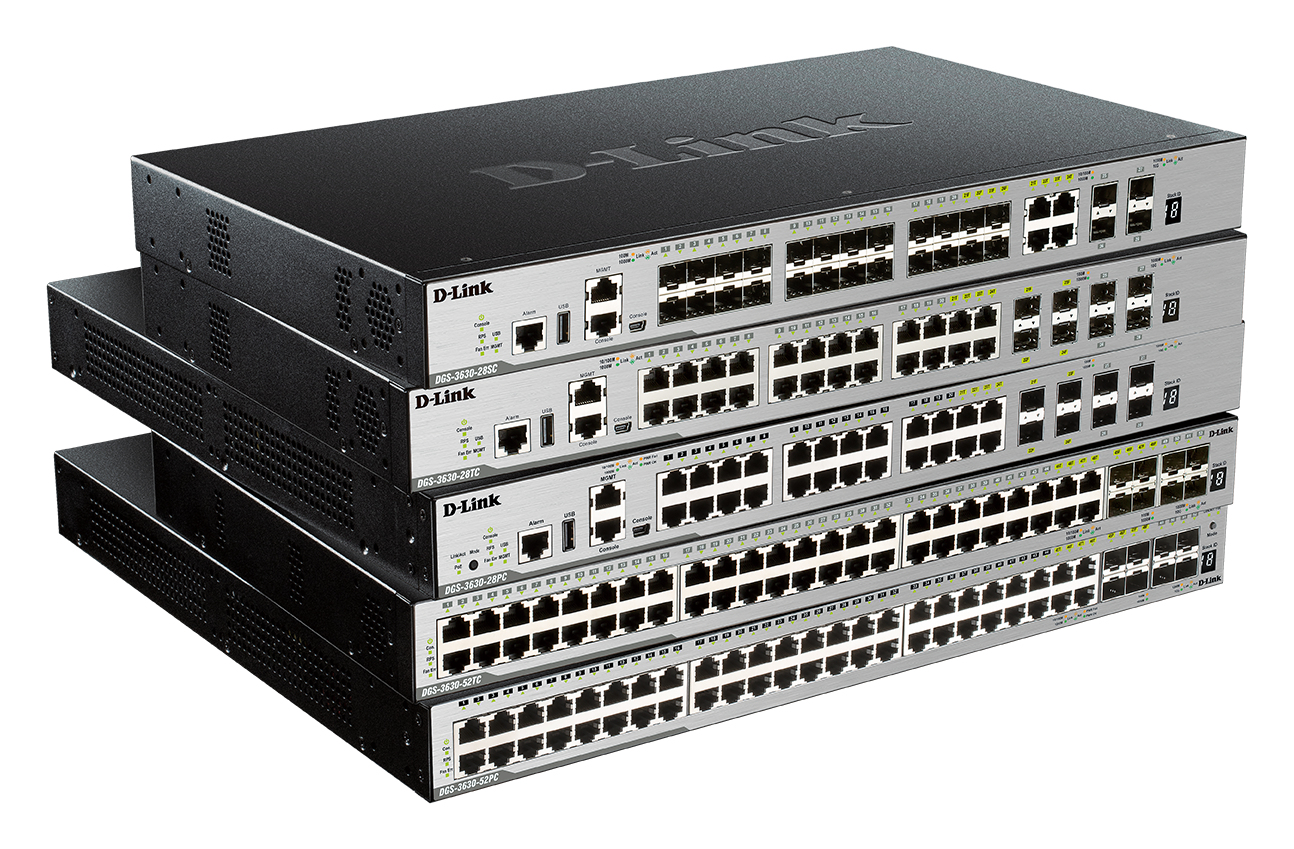

D-Link DGS-3630-52PC network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model DGS-3630-52PC
82 specifications
- Noise51.9 dB
- Type1U
- Weight6.3 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity44
Overview
- Noise
- 51.9 dB
- Type
- 1U
- Weight
- 6.3 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 44
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3630-52PC
- Part number
- DGS-3630-52PC
- Also known as
- D-Link DGS-3630-52PC network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
82 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
| User operation log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Installed SFP+ modules quantity | 4 |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Routing entries | 16000 |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 68000 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 512 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| Authentication type | RADIUS |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED) |
| Security algorithms | SSH-2, SSL/TLS, TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Routing protocols | BGP4, BGP4+, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2, RIPng, VRRP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Redundant fans support | Yes |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Dying Gasp | Yes |
| Noise level | 51.9 dB |
| Mean time between failures (MTBF) | 199929.76 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power consumption (max) | 485 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1653.85 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 259.8 mm |
| Height | 44 mm |
| Weight | 6.3 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | CE, FCC Class A, C-Tick, VCCI, BSMI, CCC cUL, CB |
