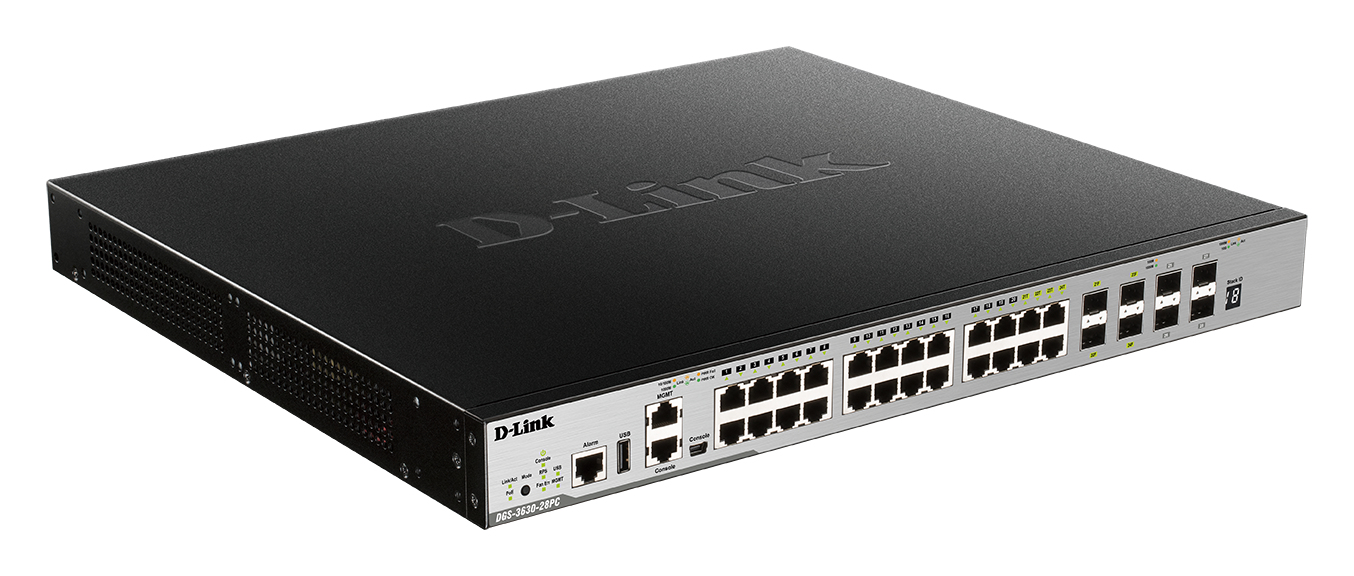

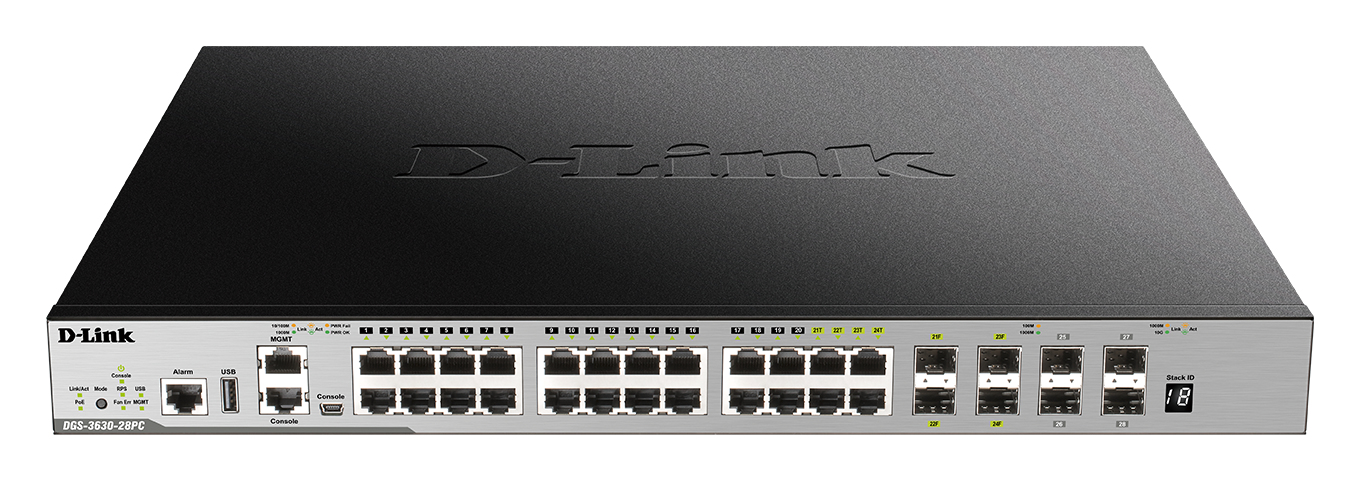

D-Link 24 Port PoE L3 Stackable Managed Gigabit Switch including

4 x 1000BaseT/SFP & 4 x 10GE SFP+

Model DGS-3630-28PC/SIEAN 790069435010

92 specifications

Overview

Brand: D-Link
Category: Network Switch
Model: DGS-3630-28PC/SI
Part number: DGS-3630-28PC/SI
EAN / UPC: 790069435010
Also known as: D-Link 24 Port PoE L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+

92 specifications in 15 groups

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1

Specification	Value
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Routing entries	16000
Auto-negotiation	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs	4000

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Loop protection	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS

Specification	Value
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Black, Grey
Number of fans	4 fan(s)
Safety	cUL, CB, CE, CCC, BSMI
Electromagnetic compatibility	CE, FCC A, C-Tick, VCCI, BSMI, CCC

Specification	Value

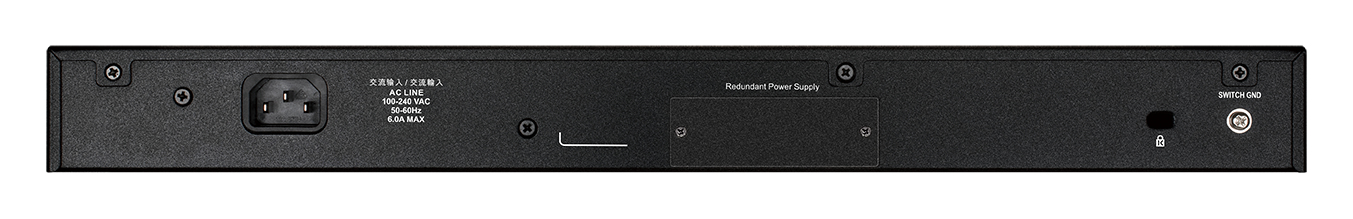

Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	370 W

Specification	Value
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%

Specification	Value
Master (outer) cases per pallet (air)	18 pc(s)
Master (outer) cases per pallet (sea)	18 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	342.4 kg
Pallet gross weight (sea)	342.4 kg
Pallet gross width	120 cm
Pallet height (air)	185.1 cm
Pallet height (sea)	185.1 cm
Products per pallet (air)	36 pc(s)
Products per pallet (sea)	36 pc(s)
Products per shipping (inner) case	2 pc(s)
Shipping (inner) case gross weight	18 kg
Shipping (inner) case height	57.2 cm
Shipping (inner) case length	57.9 cm
Shipping (inner) case net weight	12.9 kg
Shipping (inner) case width	36.2 cm

Specification	Value
Harmonized System (HS) code	85176990
