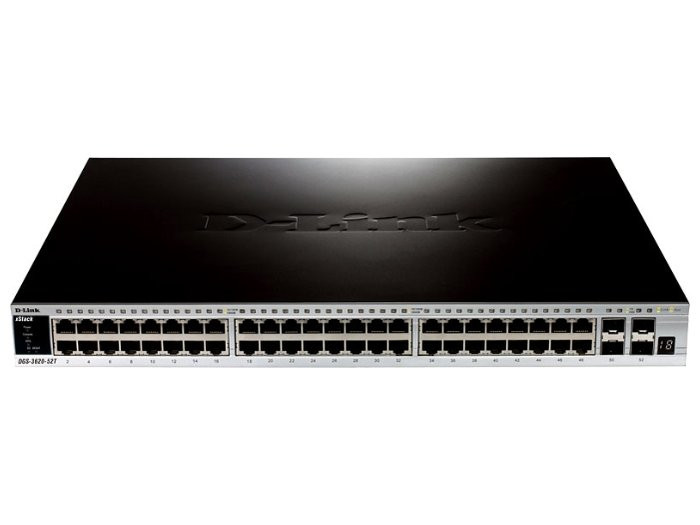

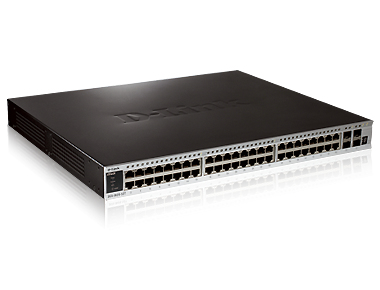

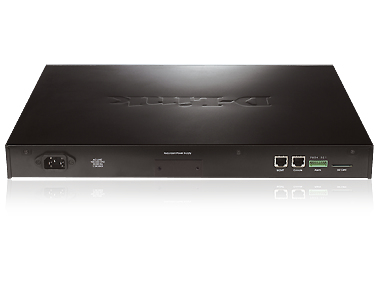

D-Link DGS-3620-52T Managed L3+ Black
Model DGS-3620-52TPart no. DGS-3620-52T/ASI
55 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight6.3 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 6.3 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3620-52T
- Part number
- DGS-3620-52T/ASI
- Also known as
- D-Link DGS-3620-52T Managed L3+ Black
Specifications
55 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | MIB II, SMIv2, SNMPv2, RMON v2, 802.1p, RADIUS, Bridge MIB, RMON MIB, Ether-like MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP/SFP+ slots quantity | 4 |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 176 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, SNMP v1/v2c/v3 |
| Supported network protocols | IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Safety | CB, cUL, LVD |
| Electromagnetic compatibility | FCC, CE, VCCI, IC, C-Tick |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 255608 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 505.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking features | Fast Ethernet |
| Packet transfer speed | 130.95 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 380 mm |
| Height | 44 mm |
| Weight | 6.3 kg |
What people say
Reviews & ratings
D-Link DGS-3620-52T Managed L3+ Black
No reviews yet
Be the first to tell others how D-Link DGS-3620-52T Managed L3+ Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link DGS-3620-52T Managed L3+ Black

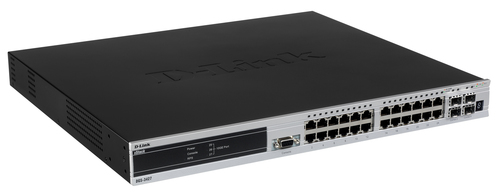

All network switch comparisons- D-Link DGS-3620-52T Managed L3+ Black vsD-Link DGS-3427 Managed L3 1U BlackCompare specs

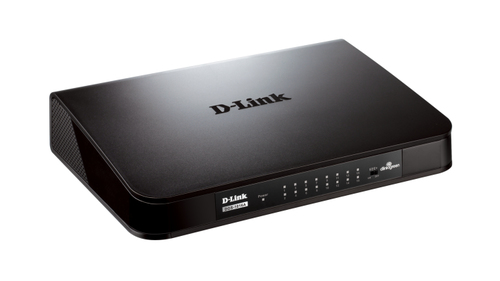

- D-Link DGS-3620-52T Managed L3+ Black vsD-Link DGS-1016A network switch Unmanaged BlackCompare specs
- D-Link DGS-3620-52T Managed L3+ Black vsD-Link DGS-3620-52PC Managed L3+ Power over Ethernet (PoE) BlackCompare specs

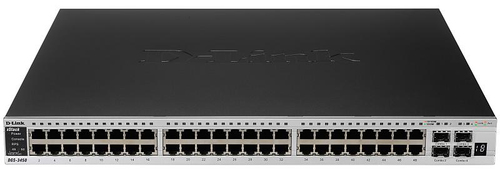

- D-Link DGS-3620-52T Managed L3+ Black vsD-Link DGS-3450 Managed L2+ 1U BlackCompare specs

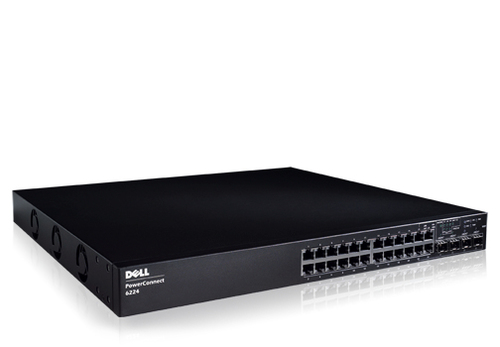

- D-Link DGS-3620-52T Managed L3+ Black vsDell PowerConnect 6224 Managed L3 1U BlackCompare specs

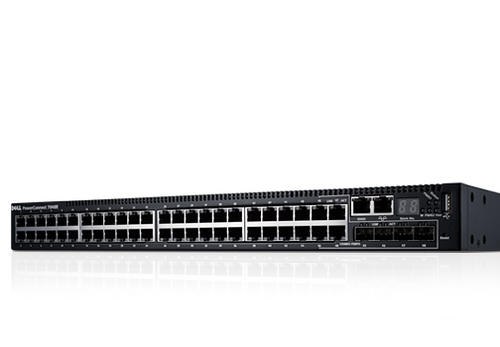

- D-Link DGS-3620-52T Managed L3+ Black vsDell PowerConnect 7048R Managed L3 1U BlackCompare specs

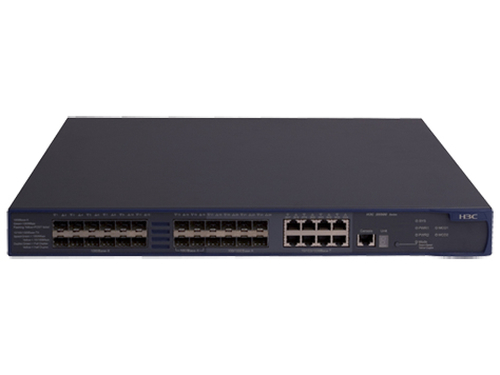

- D-Link DGS-3620-52T Managed L3+ Black vsHP 5500-24G-SFP EICompare specs

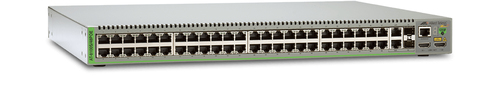

- D-Link DGS-3620-52T Managed L3+ Black vsAllied Telesis AT-8100S/48POE-30 network switch Managed L2/L3/L4 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U GreyCompare specs
