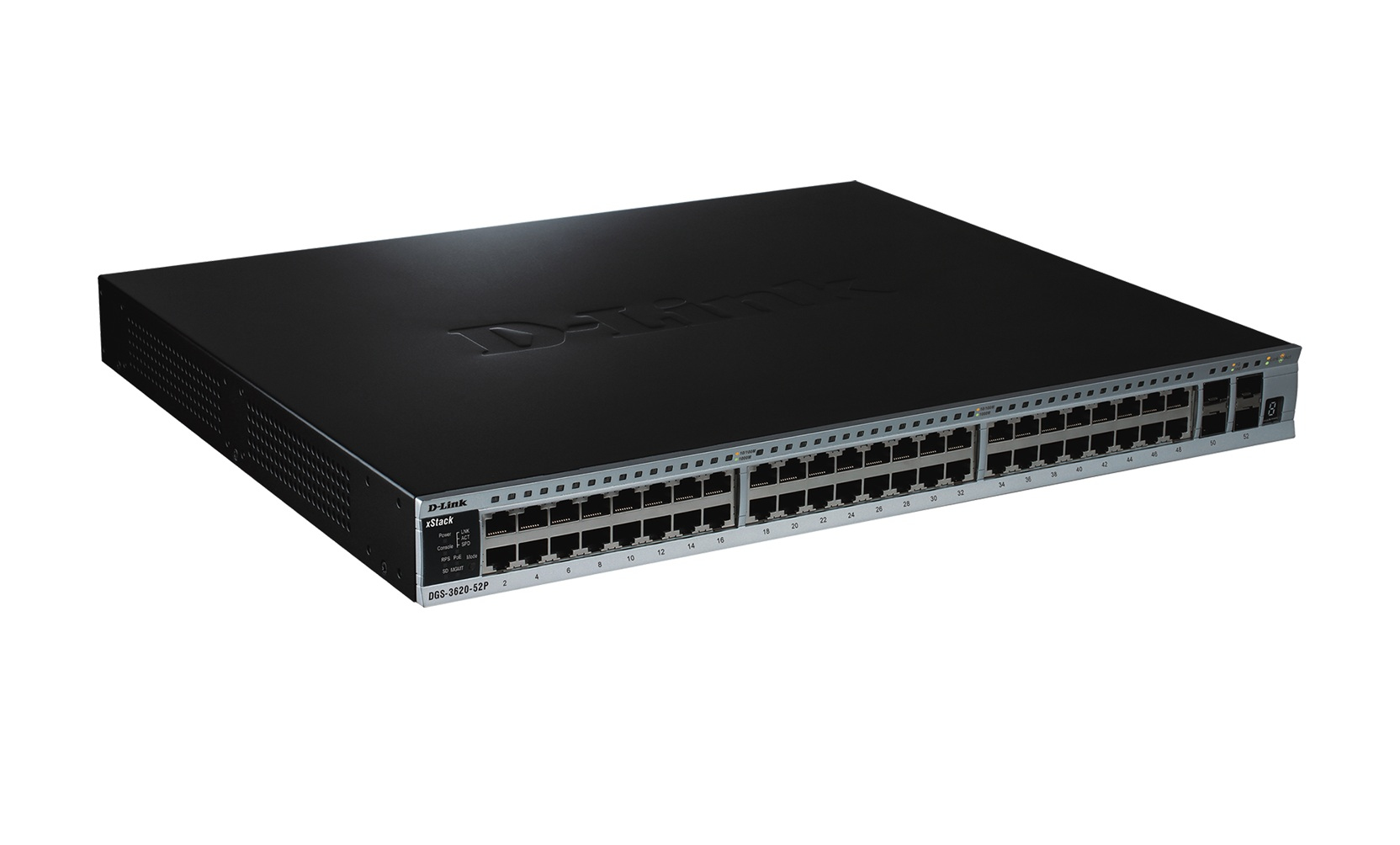

D-Link DGS-3620-52P network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

D-Link DGS-3620-52P network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model DGS-3620-52PEAN 790069354298

63 specifications
  • Noise56.2 dB
  • Weight6.3 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • 10G supportYes
See all specifications

Overview

Noise
56.2 dB
Weight
6.3 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
10G support
Yes
Brand
D-Link
Model
DGS-3620-52P
Part number
DGS-3620-52P
EAN / UPC
790069354298
Also known as
D-Link DGS-3620-52P network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

63 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity48
Installed SFP+ modules quantity0
SFP+ module slots quantity4
Console portRS-232
Compatible memory cardsSD

Network

Networking standardsIEEE 1588, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
10G supportYes
Copper ethernet cabling technology1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
IP routingYes
Routing entries12000
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Head-of-line (HOL) blockingYes
IP address table12000
Spanning tree protocolYes
VLAN supportYes
Number of VLANs4000

Data transmission

MAC address table32000 entries
Switching capacity176 Gbit/s
Throughput130.95 Mpps
Number of queues8
Number of static routes256
Number of IP interfaces256
Jumbo frames supportYes
Packet buffer memory2 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Security algorithmsSSH-2, SSL/TLS

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Product colourBlack
LED indicatorsYes
Number of fans1 fan(s)

Performance

Physical stacking (units)12
Virtual stacking (units)32
Noise level56.2 dB
Mean time between failures (MTBF)225645 h

Power

Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)517.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity48
Total Power over Ethernet (PoE) budget370 W

Operational conditions

Heat dissipation1763.3 BTU/h

Weight & dimensions

Width441 mm
Depth310 mm
Height44 mm
Weight6.3 kg

Packaging content

Cables includedAC
