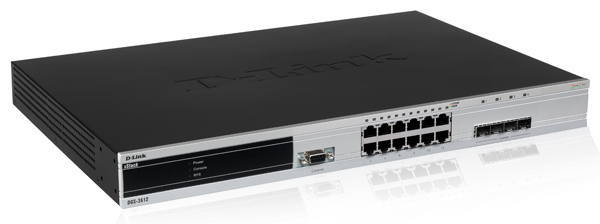

D-Link DGS-3612 network switch Unmanaged L3 Black
Model DGS-3612
31 specifications
- Speed20 Gbit/s
- Weight3.7 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
Overview
- Speed
- 20 Gbit/s
- Weight
- 3.7 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3612
- Part number
- DGS-3612
- Also known as
- D-Link DGS-3612 network switch Unmanaged L3 Black
Specifications
31 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16 entries |
| Switching capacity | 24 Gbit/s |
| Maximum data transfer rate | 20 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet,10-G |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 45 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 309 x 44 mm |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet, 10G |
| Power requirements | 100 to 120VAC |
| Security features | SSH v1/v2 SSH v1/v2/v3 IP-MAC-Port Binding D-Link Safeguard Engine DHCP Server Screening CPU Interface Filtering ARP Spoofing Prevention BPDU Attack Protection |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | MEF 9,14 |
