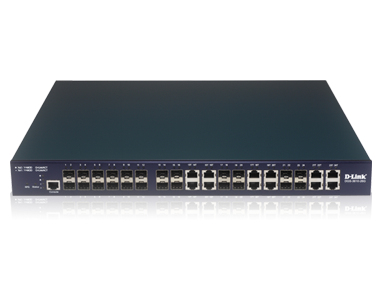

D-Link DGS-3610-26G network switch Managed L3+ Black
Model DGS-3610-26G
43 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight8.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 8.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3610-26G
- Part number
- DGS-3610-26G
- Also known as
- D-Link DGS-3610-26G network switch Managed L3+ Black
Specifications
43 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| MIB support | MIB II, Bridge MIB, SNMPv2 MIB, MIB Traps Convention, Interface Group MIB, Private MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 24 |
| SFP/SFP+ slots quantity | 12 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | No |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Safety | cUL, CB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 70 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 440 x 435 x 44 mm |
| Connectivity technology | Wired |
| Bandwidth | 40 Gbit/s |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet, 10G, 10GigE |
| Performance management | Telnet, Telnet Server, TFTP Client, SNMP v1/v2/v3, SNMP Trap |
| Electromagnetic emissions | FCC Class A, CE Class A, VCCI Class A |
| Non-operating relative humidity (non-condensing) | 90 - 90% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 38.85 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.5 kg |
