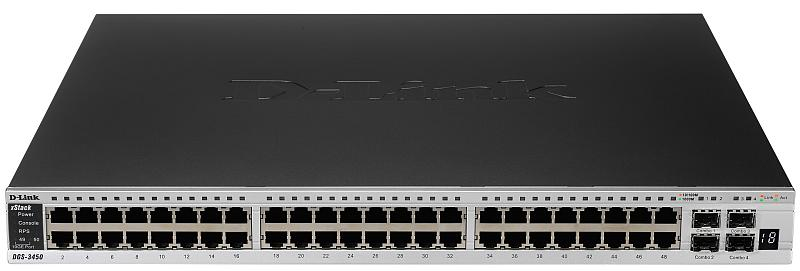

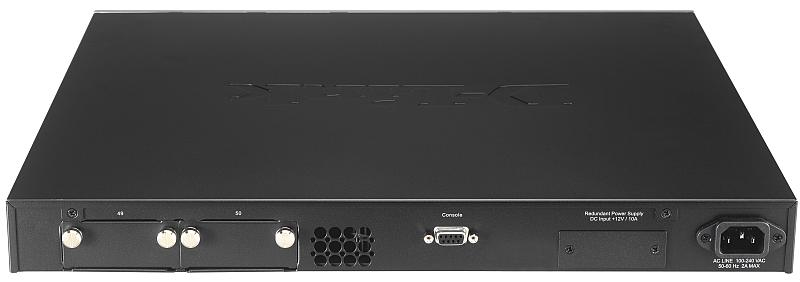

D-Link DGS-3450 Managed L2+ 1U Black

D-Link DGS-3450 Managed L2+ 1U Black

Model DGS-3450Part no. DGS-3450/A

55 specifications
  • Speed1 Gbit/s
  • Noise48.7 dB
  • Type1U
  • Weight5.27 kg
  • ColourBlack
  • Switch typeManaged
See all specifications

Overview

Speed
1 Gbit/s
Noise
48.7 dB
Type
1U
Weight
5.27 kg
Colour
Black
Switch type
Managed
Brand
D-Link
Model
DGS-3450
Part number
DGS-3450/A
Also known as
D-Link DGS-3450 Managed L2+ 1U Black

Specifications

55 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
MIB supportMIB-II, SNMP v.2, RMON, RMON v.2, IF

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Gigabit Ethernet (copper) ports quantity44
SFP module slots quantity4
SFP/SFP+ slots quantity4
Console portRS-232
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
Full duplexYes
Routing entries128
Auto MDI/MDI-XYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes

Optical fiber

Fiber ethernet cabling technology10GBASE-LR

Data transmission

MAC address table8000 entries
Supported data transfer rates10/100/1000Mbps
Switching capacity136 Gbit/s
Maximum data transfer rate1 Gbit/s

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS
Static port securityYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
LED indicatorsLink, Status
Number of fans2 fan(s)

Performance

Noise level48.7 dB
Mean time between failures (MTBF)78.517 h

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)131.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Packet transfer speed101.19Mpps
Power LEDYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width441 mm
Depth389 mm
Height44 mm
Weight5.27 kg

Certificates

CertificationFCC, CE, VCCI
