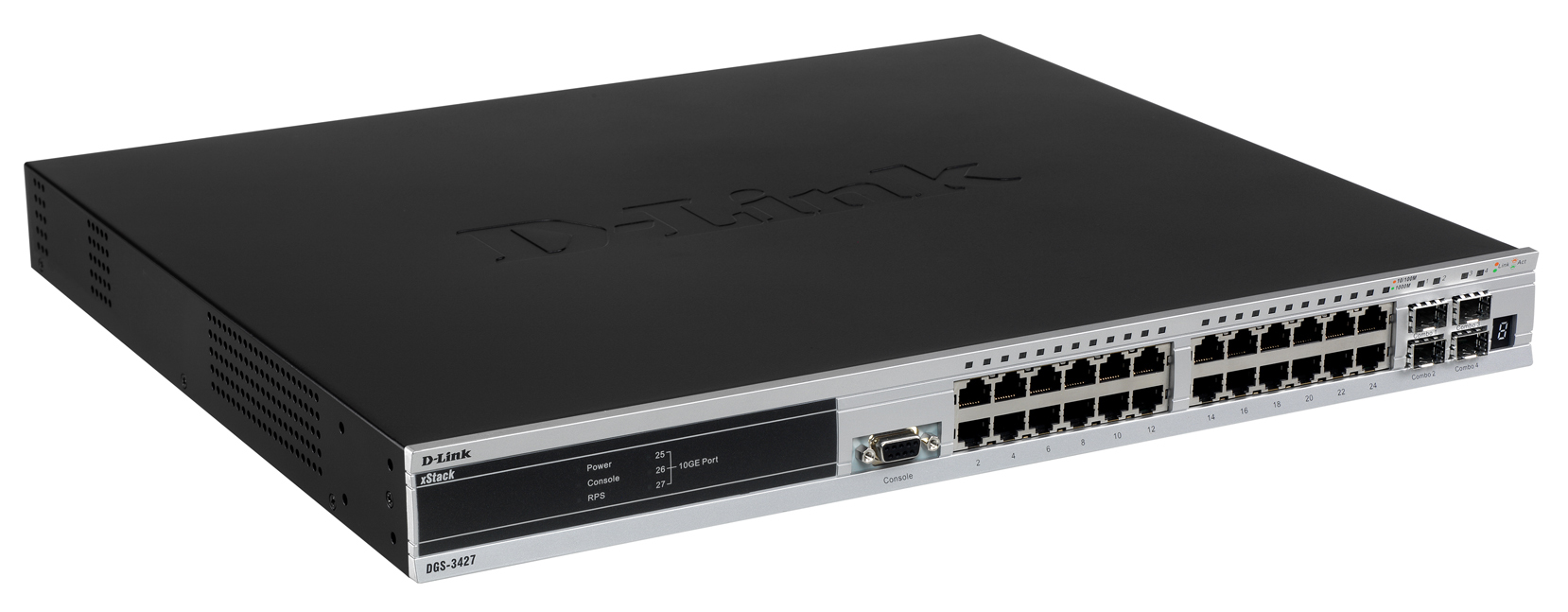

D-Link DGS-3427 Managed L3 1U Black
Model DGS-3427Part no. DGS-3427/A
56 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Noise52.3 dB
- Type1U
- Weight5.51 kg
- ColourBlack
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 52.3 dB
- Type
- 1U
- Weight
- 5.51 kg
- Colour
- Black
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3427
- Part number
- DGS-3427/A
- Also known as
- D-Link DGS-3427 Managed L3 1U Black
Specifications
56 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| MIB support | MIB II, SMIv2, SNMPv2, RMON v2, 802.1p, RADIUS, Bridge MIB, RMON MIB, Ether-like MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T, 10GBASE-T |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 108 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.75 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
| Supported network protocols | CLI, SNMP v1/v2c/v3, RMON v1, DHCP, TFTP, SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Cable management | Yes |
| Safety | FCC, CE, C-Tick, VCCI, CSA, CB |
Performance
| Specification | Value |
|---|---|
| Noise level | 52.3 dB |
| Mean time between failures (MTBF) | 93.8 h |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 71.6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 80.3 mpps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 389 mm |
| Height | 44 mm |
| Weight | 5.51 kg |
