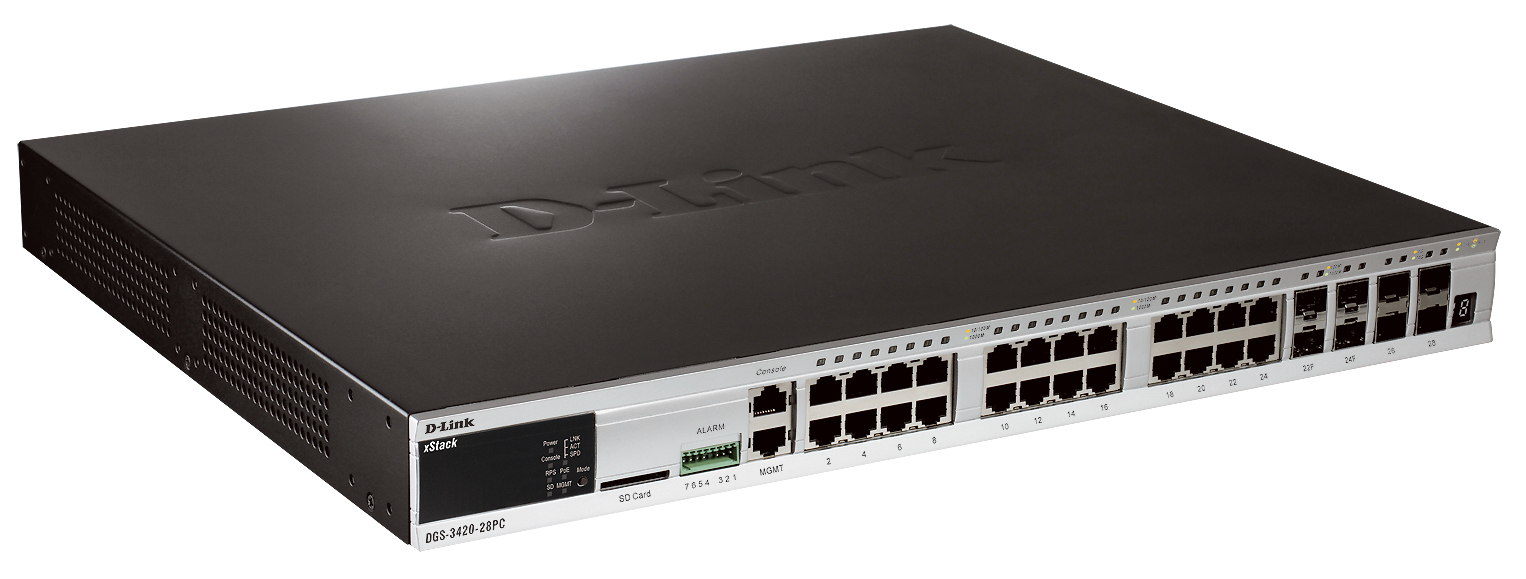

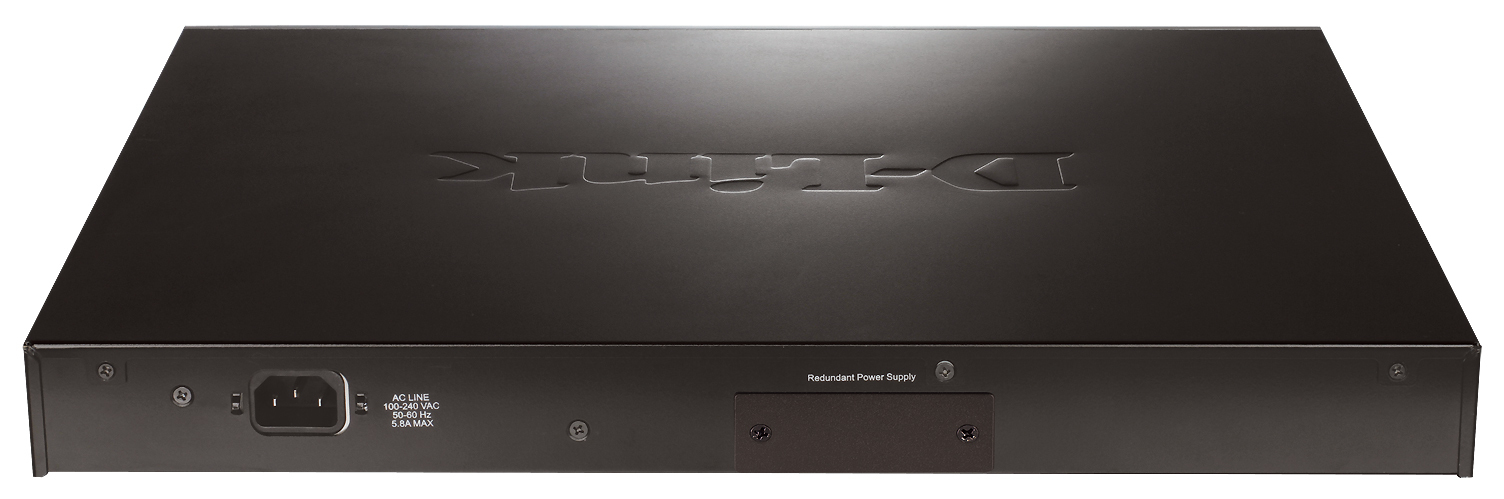

DGS-3420-28PC network switch Managed L2+ Power over Ethernet (PoE)
Model DGS-3420-28PCEAN 7900693644952
64 specifications
- Noise52.8 dB
- Weight5.75 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
- MAC address table16000 entries
Overview
- Noise
- 52.8 dB
- Weight
- 5.75 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3420-28PC
- Part number
- DGS-3420-28PC
- EAN / UPC
- 7900693644952, 790069364471, 790069364495, 790069369858 +2 more
- Also known as
- D-Link DGS-3420-28PC network switch Managed L2+ Power over Ethernet (PoE)
Specifications
64 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ah, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Routing entries | 1000 |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 52.8 dB |
| Mean time between failures (MTBF) | 20619 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 478 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 380 mm |
| Height | 44 mm |
| Weight | 5.75 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 530 mm |
| Package depth | 568 mm |
| Package height | 157 mm |
| Package weight | 8.06 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Master (outer) cases per pallet (sea) | 18 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 335.8 kg |
| Pallet gross weight (sea) | 335.8 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 194.4 cm |
| Pallet height (sea) | 194.4 cm |
| Products per pallet (air) | 36 pc(s) |
| Products per pallet (sea) | 36 pc(s) |
| Products per shipping (inner) case | 2 pc(s) |
| Shipping (inner) case gross weight | 17.6 kg |
| Shipping (inner) case height | 60.3 cm |
| Shipping (inner) case length | 55 cm |
| Shipping (inner) case net weight | 12.8 kg |
| Shipping (inner) case width | 33.6 cm |
