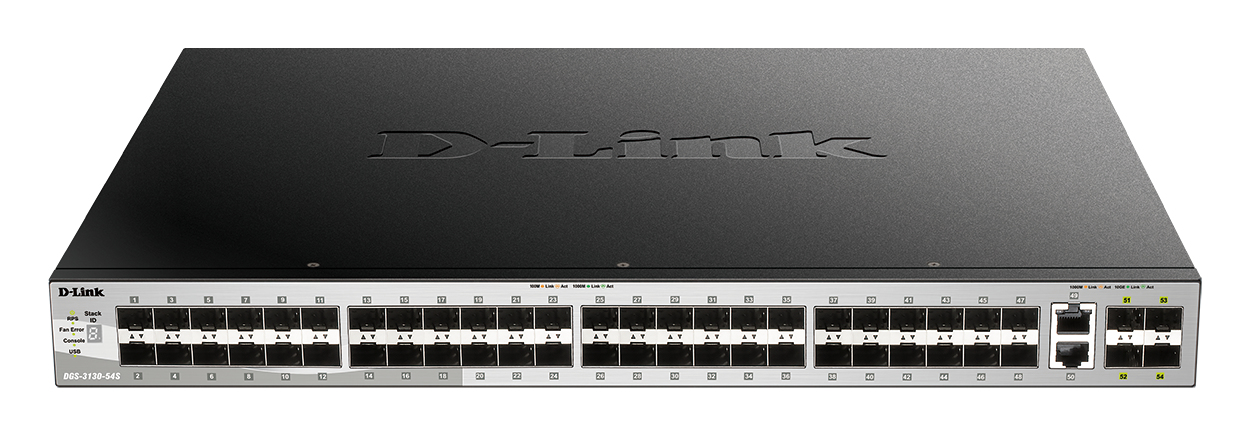

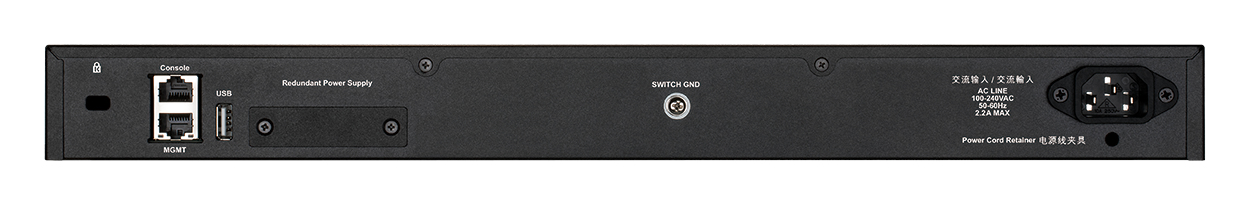

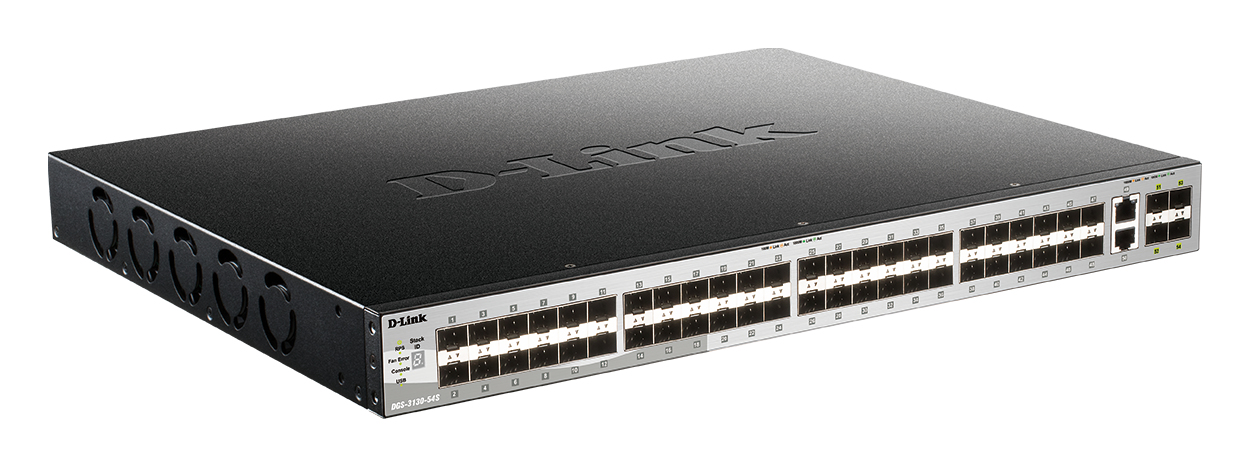

DGS-3130-54S/E network switch Managed L3
10G Ethernet (100/1000/10000) Grey
Model DGS-3130-54S/EEAN 790069470004
72 specifications
- Noise52.1 dB
- Weight5.6 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity2
- 10G supportYes
Overview
- Noise
- 52.1 dB
- Weight
- 5.6 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 2
- 10G support
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3130-54S/E
- Part number
- DGS-3130-54S/E
- EAN / UPC
- 790069470004
- Also known as
- D-Link DGS-3130-54S/E network switch Managed L3 10G Ethernet (100/1000/10000) Grey
Specifications
72 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 48 |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP, SFP+ |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 161 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 512 |
| Access Control List (ACL) ingress | 2048 |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv3, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | RIP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Noise level | 52.1 dB |
| Mean time between failures (MTBF) | 238779 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 95.06 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 324.34 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 430 mm |
| Height | 44 mm |
| Weight | 5.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC |
