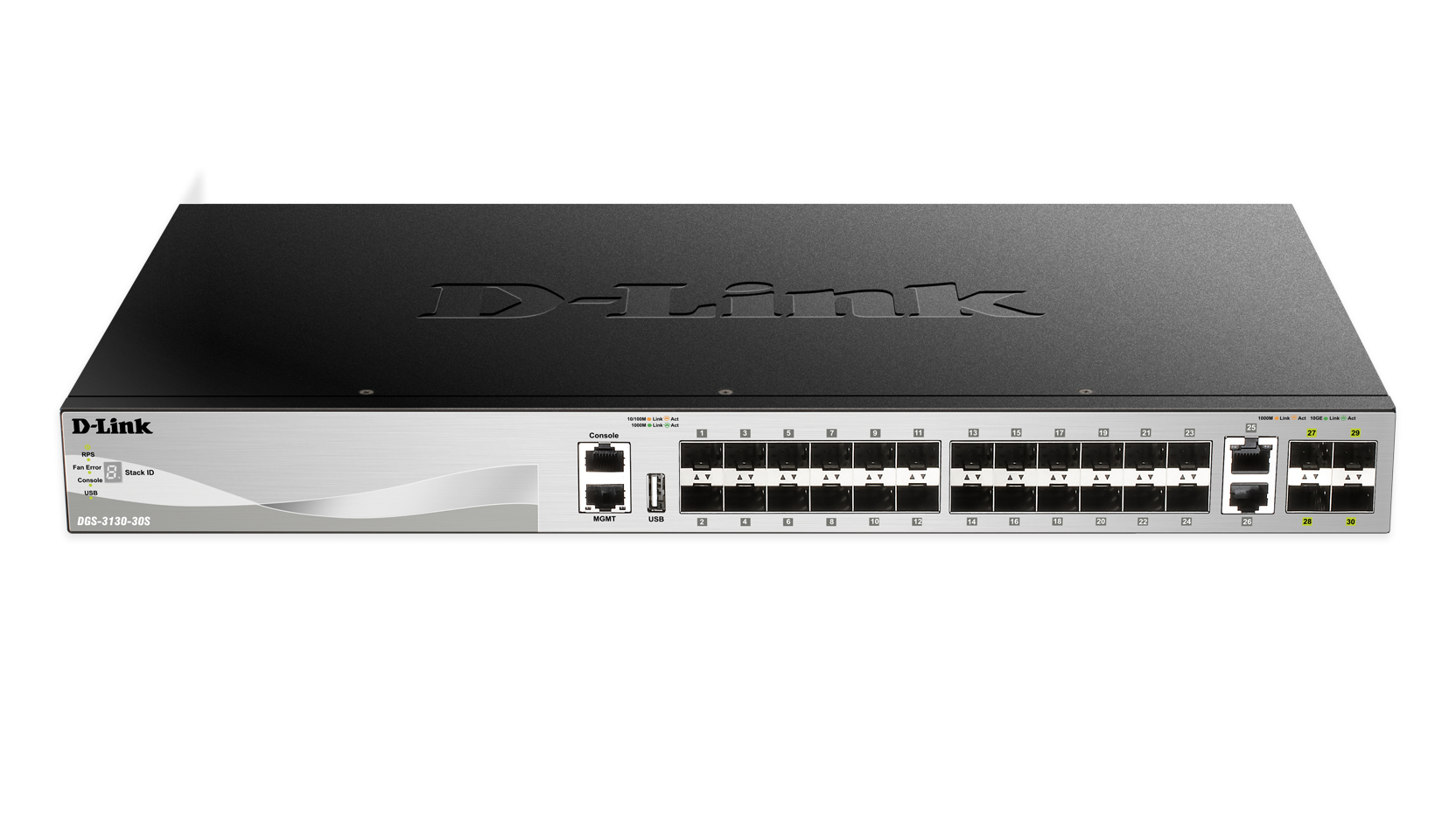

D-Link DGS-3130-30S network switch Managed L3 Black, Grey
D-Link

DGS-3130-30S network switch Managed L3 Black, Grey

Model DGS-3130-30SEAN 790069435287

67 specifications
  • Noise54 dB
  • Weight3.21 kg
  • ColourBlack, Grey
  • Switch typeManaged
  • Installed SFP modules quantity0
  • 10G supportYes
See all specifications

Overview

Noise
54 dB
Weight
3.21 kg
Colour
Black, Grey
Switch type
Managed
Installed SFP modules quantity
0
10G support
Yes
Brand
D-Link
Model
DGS-3130-30S
Part numbers
DGS-3130-30S, DGS-3130-30S/SI, DGS-3130-30S/B
EAN / UPC
790069435287, 790069469954
Also known as
D-Link DGS-3130-30S network switch Managed L3 Black, Grey

Specifications

67 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
MIB supportRFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC

Ports & interfaces

Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP module slots quantity24
Fiber optic connectorSFP, SFP+
USB 2.0 ports quantity1
Power connectorAC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
10G supportYes
Copper ethernet cabling technology10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs4000

Data transmission

MAC address table16384 entries
Switching capacity168 Gbit/s
Forwarding rate125 Mpps
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory2 MB

Security

DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)Yes
Access Control List (ACL) rules2048
IGMP snoopingYes
AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication
BPDU filtering/protectionYes
DoS attack preventionYes
Loop protectionYes
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)
Root protectionYes
SSH/SSL supportYes
Security algorithmsSNMP, SNMPv3, SSH-2, SSL/TLS

Multicast features

Multicast supportYes

Protocols

Routing protocolsRIP

Design

StackableYes
Product colourBlack, Grey
LED indicatorsYes
Number of fans3 fan(s)
SafetyCB, cUL, BSMI, CCC

Performance

Physical stacking (units)9
Virtual stacking (units)32
Noise level54 dB
Mean time between failures (MTBF)487153 h

Power

Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)82.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation281.16 BTU/h

Weight & dimensions

Width440 mm
Depth250 mm
Height44 mm
Weight3.21 kg

Certificates

CertificationFCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
