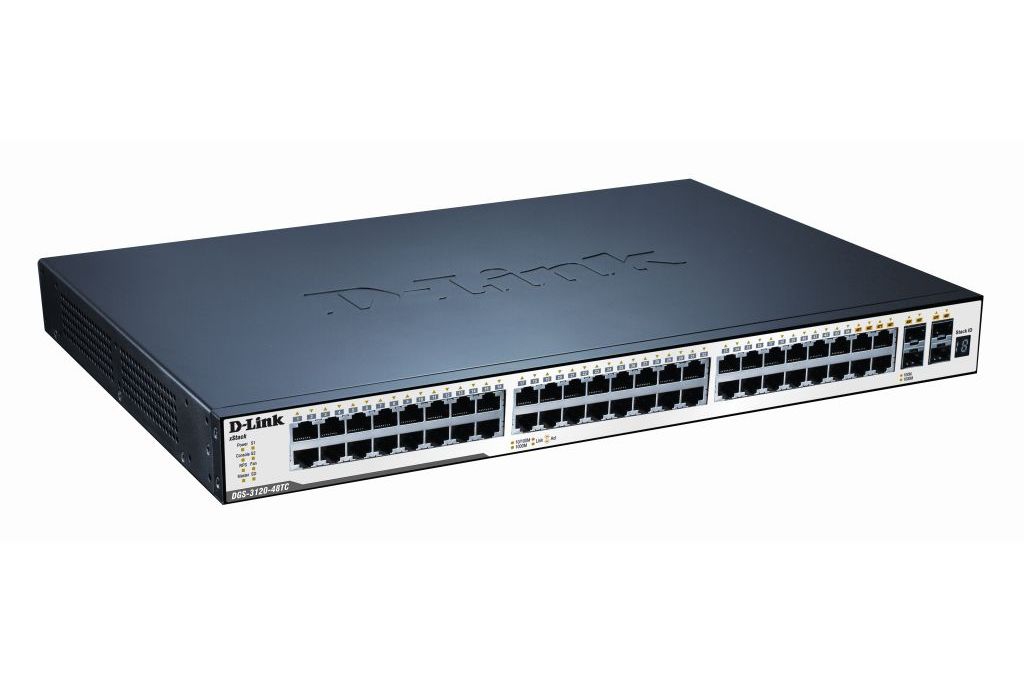

D-Link DGS-3120-48TC network switch Managed L2+
Model DGS-3120-48TCEAN 790069343872
42 specifications
- Speed1 Gbit/s
- Noise44.6 dB
- Weight4.62 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity44
- 10G supportYes
Overview
- Speed
- 1 Gbit/s
- Noise
- 44.6 dB
- Weight
- 4.62 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 44
- 10G support
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3120-48TC
- Part numbers
- DGS-3120-48TC, DGS-3120-48TC/ASI
- EAN / UPC
- 790069343872
- Also known as
- D-Link DGS-3120-48TC network switch Managed L2+
Specifications
42 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 136 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, SNMP v1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| LED indicators | Yes |
| Safety | CB, cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Flash memory | 32 MB |
| Noise level | 44.6 dB |
| Mean time between failures (MTBF) | 292201572 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 67.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 310 x 44 mm |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 228.811 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.62 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC A, CE A, VCCI A, IC, C-Tick |
