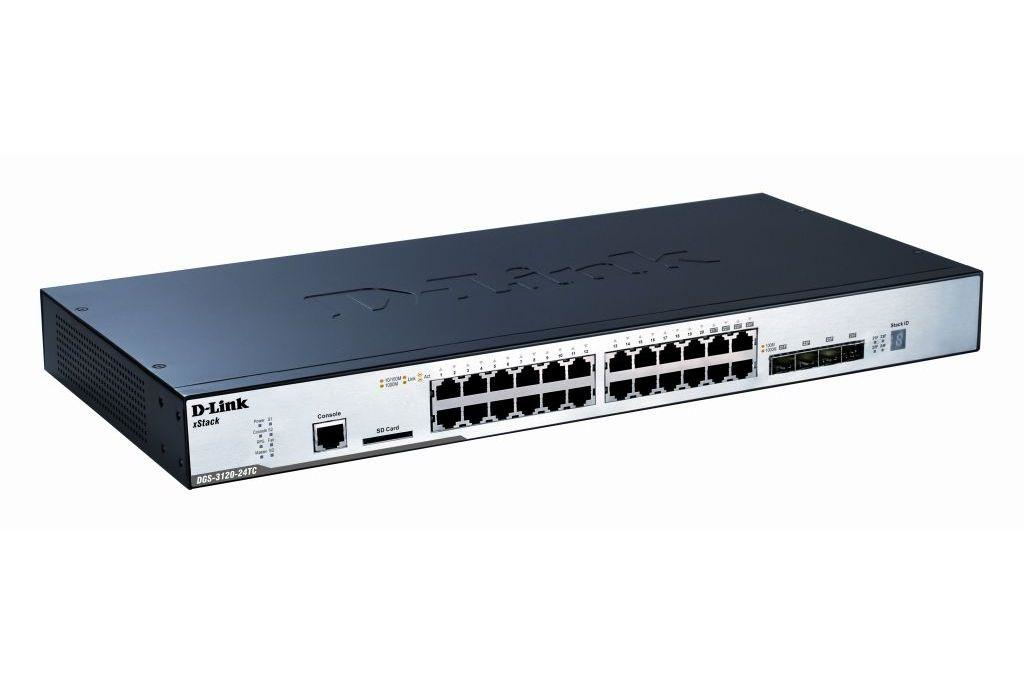

D-Link DGS-3120-24TC-SI network switch Managed L2 Black
Model DGS-3120-24TC-SIEAN 790069342011
45 specifications
- Speed1 Gbit/s
- Noise49.8 dB
- Weight2.56 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity20
Overview
- Speed
- 1 Gbit/s
- Noise
- 49.8 dB
- Weight
- 2.56 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3120-24TC-SI
- Part number
- DGS-3120-24TC-SI
- EAN / UPC
- 790069342011
- Also known as
- D-Link DGS-3120-24TC-SI network switch Managed L2 Black
Specifications
45 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000Mbps |
| Switching capacity | 88 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Safety | CB, cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Flash memory | 32 MB |
| Noise level | 49.8 dB |
| Mean time between failures (MTBF) | 561829.573 h |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 40.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Packet transfer speed | 65.48 Mpps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2.56 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI |
