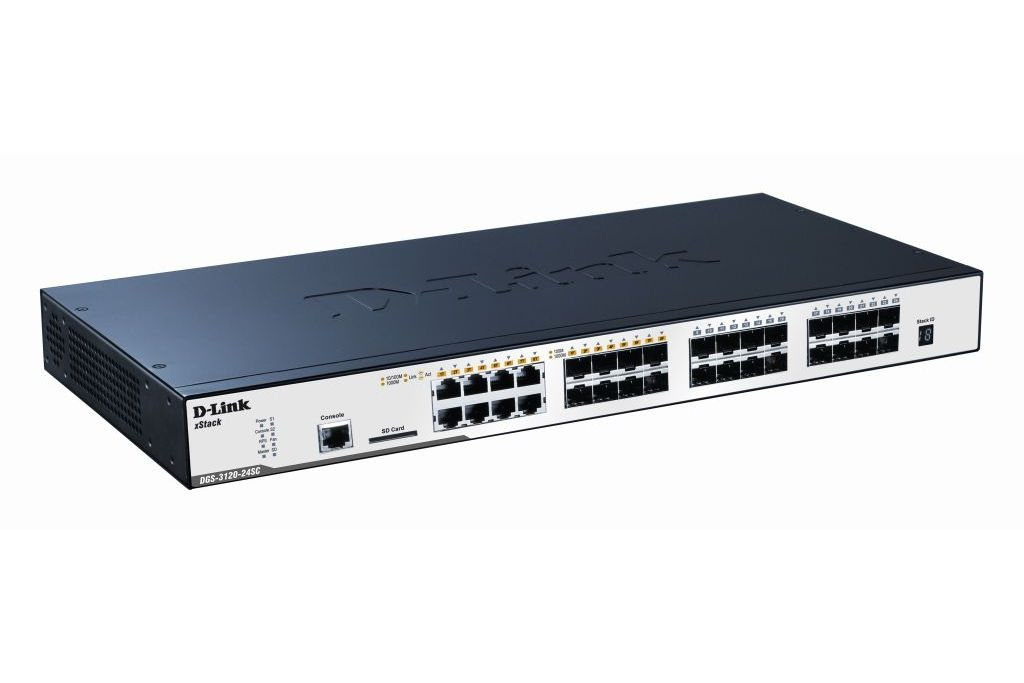

D-Link DGS-3120-24SC network switch Managed L2+
Model DGS-3120-24SCEAN 790069344039
45 specifications
- Speed1 Gbit/s
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportYes
- MAC address table16000 entries
- DHCP featuresDHCP client
Overview
- Speed
- 1 Gbit/s
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- Yes
- MAC address table
- 16000 entries
- DHCP features
- DHCP client
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3120-24SC
- Part number
- DGS-3120-24SC
- EAN / UPC
- 790069344039
- Also known as
- D-Link DGS-3120-24SC network switch Managed L2+
Specifications
45 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| SFP module slots quantity | 16 |
| SFP/SFP+ slots quantity | 16 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 88 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, TFTP, SNMP v1/v2c/v3, sFlow, ICMPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| LED indicators | Yes |
| Safety | CB, cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 34.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 65.48 Mbit/s |
| Dimensions (WxDxH) | 440 x 210 x 44 mm |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 116.281 BTU/h |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC A, CE A, VCCI A, IC, C-Tick |
