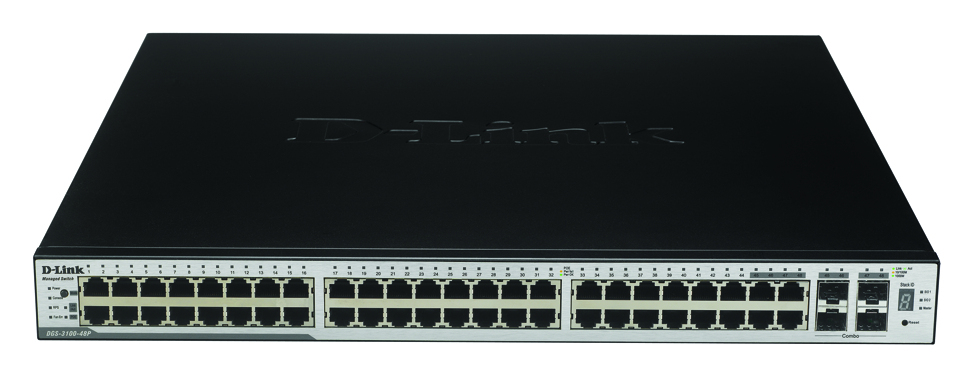

D-Link DGS-3100-48P network switch Managed L2 Power over Ethernet (PoE)

D-Link DGS-3100-48P network switch Managed L2 Power over Ethernet (PoE)

Model DGS-3100-48PEAN 790069304828

40 specifications
  • Speed1 Gbit/s
  • ConnectivityWired
  • Weight7.43 kg
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • Full duplexYes
See all specifications

Overview

Speed
1 Gbit/s
Connectivity
Wired
Weight
7.43 kg
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
Full duplex
Yes
Brand
D-Link
Model
DGS-3100-48P
Part number
DGS-3100-48P
EAN / UPC
790069304828, 790069304781, 790069304798, 3540260029528 +1 more
Also known as
D-Link DGS-3100-48P network switch Managed L2 Power over Ethernet (PoE)

Specifications

40 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
MIB supportMIBII (RFC 1213), Bridge MIB (RFC 1493), SNMP v2 MIB (RFC 1907), RMON MIB (RFC 1757, 2819), Ether-like MIB (RFC 2021), 802.1p MIB (RFC 1643, 2358, 2665), IF MIB (RFC 2674), RADIUS Authentication Client MIB (RFC 2233, 2863), RADIUS Accounting Client MIB (RFC 2618), Private MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Gigabit Ethernet (copper) ports quantity48
SFP module slots quantity4
SFP/SFP+ slots quantity4
Console portRS-232

Network

Full duplexYes
Flow control supportYes

Data transmission

Switching capacity116 Gbit/s
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
MAC address filteringYes

Multicast features

Multicast supportYes

Protocols

Management protocolsWeb-based GUI, CLI, Device Locator, Telnet Server, Telnet Client, TFTP Client, SNMP v1, v2c, v3,SNMP Traps, System Log, RMON v1, BootP/DHCP Client, DHCP Auto-configuration, SNTP, Port Description, CPU Monitoring, Web GUI Traffic Monitoring

Design

StackableYes
SafetycUL, CB

Performance

Mean time between failures (MTBF)96.648 h

Power

Redundant power supply (RPS) supportYes
Power consumption (typical)619.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Other features

Dimensions (WxDxH)440 x 430 x 44 mm
Connectivity technologyWired
Authentication methodRADIUS Authentication Client MIB (RFC 2233, 2863)
Packet transfer speed86.31Mpps
Power requirements100 - 240 VAC, 50 - 60 Hz
Security features-Traffic Segmentation -SSH v2 -SSL v3 -Port Security: 16 MACs per port -Broadcast Storm Control -D-Link Safeguard Engine
Electromagnetic emissionsFCC Class A, ICES-003 Class A, CE, C-Tick, VCCI Class A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation2113.18 BTU/h

Weight & dimensions

Weight7.43 kg
