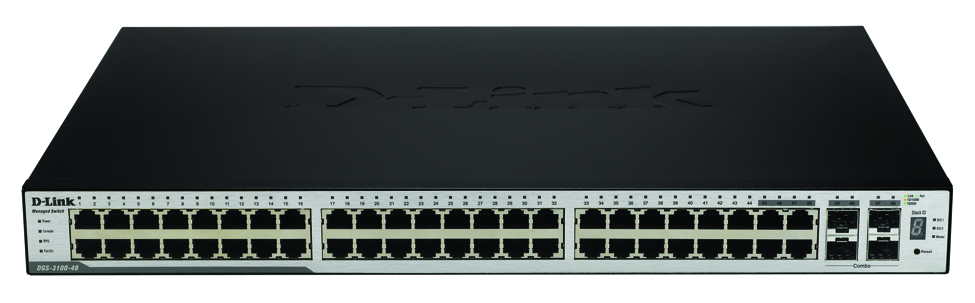

D-Link DGS-3100-48 network switch Managed L2
Model DGS-3100-48EAN 790069304866
40 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight5.5 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Full duplexYes
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 5.5 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Full duplex
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-3100-48
- Part number
- DGS-3100-48
- EAN / UPC
- 790069304866, 790069304873, 7900693048736
- Also known as
- D-Link DGS-3100-48 network switch Managed L2
Specifications
40 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIBII (RFC 1213), Bridge MIB (RFC 1493), SNMP v2 MIB (RFC 1907), RMON MIB (RFC 1757, 2819), Ether-like MIB (RFC 2021), 802.1p MIB (RFC 1643, 2358, 2665), IF MIB (RFC 2674), RADIUS Authentication Client MIB (RFC 2233, 2863), RADIUS Accounting Client MIB (RFC 2618), Private MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 116 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Web-based GUI, CLI, Device Locator, Telnet Server, Telnet Client, TFTP Client, SNMP v1, v2c, v3,SNMP Traps, System Log, RMON v1, BootP/DHCP Client, DHCP Auto-configuration, SNTP, Port Description, CPU Monitoring, Web GUI Traffic Monitoring |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Safety | cUL, CB |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 103.924 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 102.63 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 310 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS Authentication Client MIB (RFC 2233, 2863) |
| Packet transfer speed | 86.31Mpps |
| Power requirements | 100 - 240 VAC, 50 - 60 Hz |
| Security features | -Traffic Segmentation -SSH v2 -SSL v3 -Port Security: 16 MACs per port -Broadcast Storm Control -D-Link Safeguard Engine |
| Electromagnetic emissions | FCC Class A, ICES-003 Class A, CE, C-Tick, VCCI Class A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 350.19 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.5 kg |
