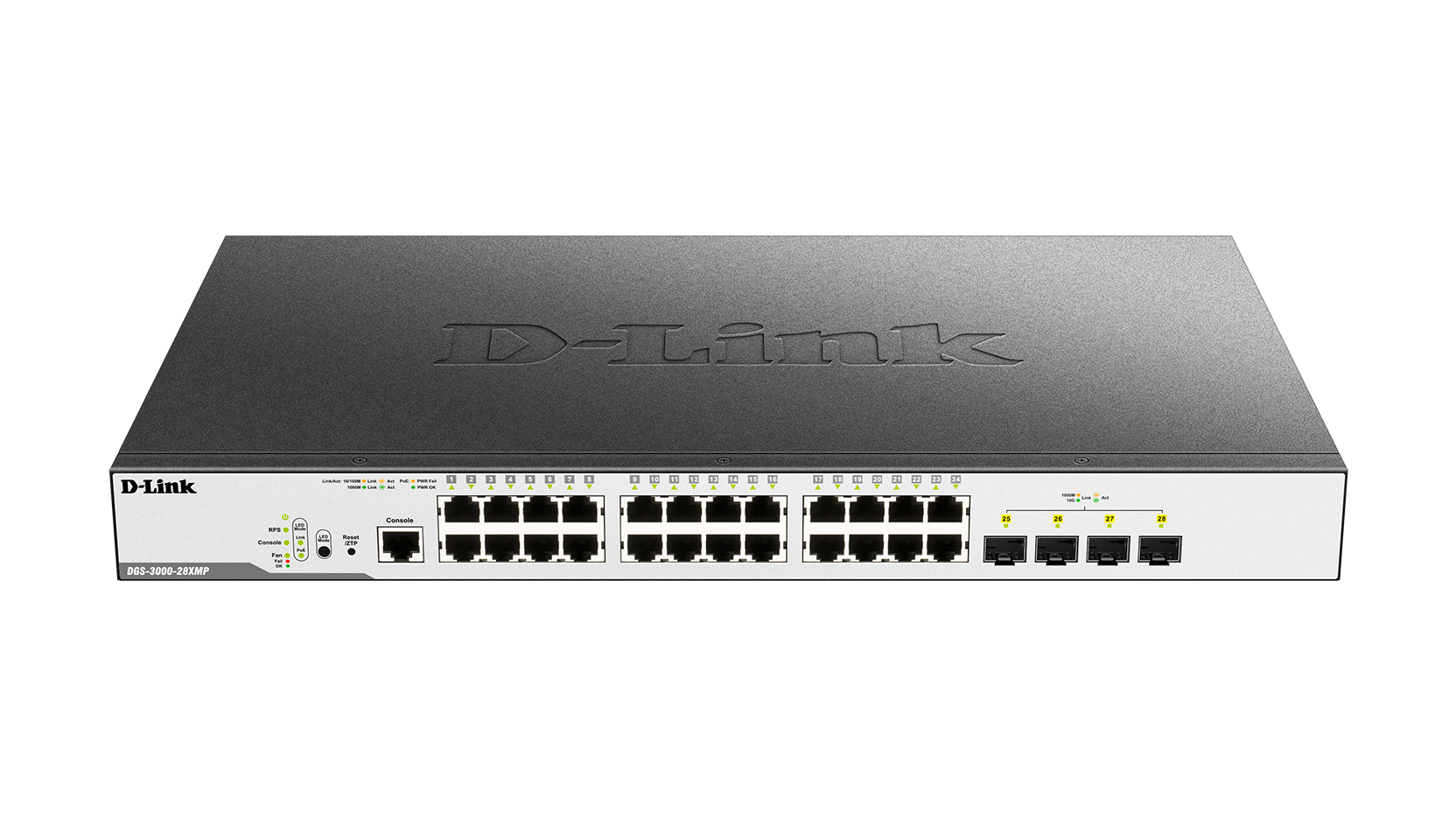

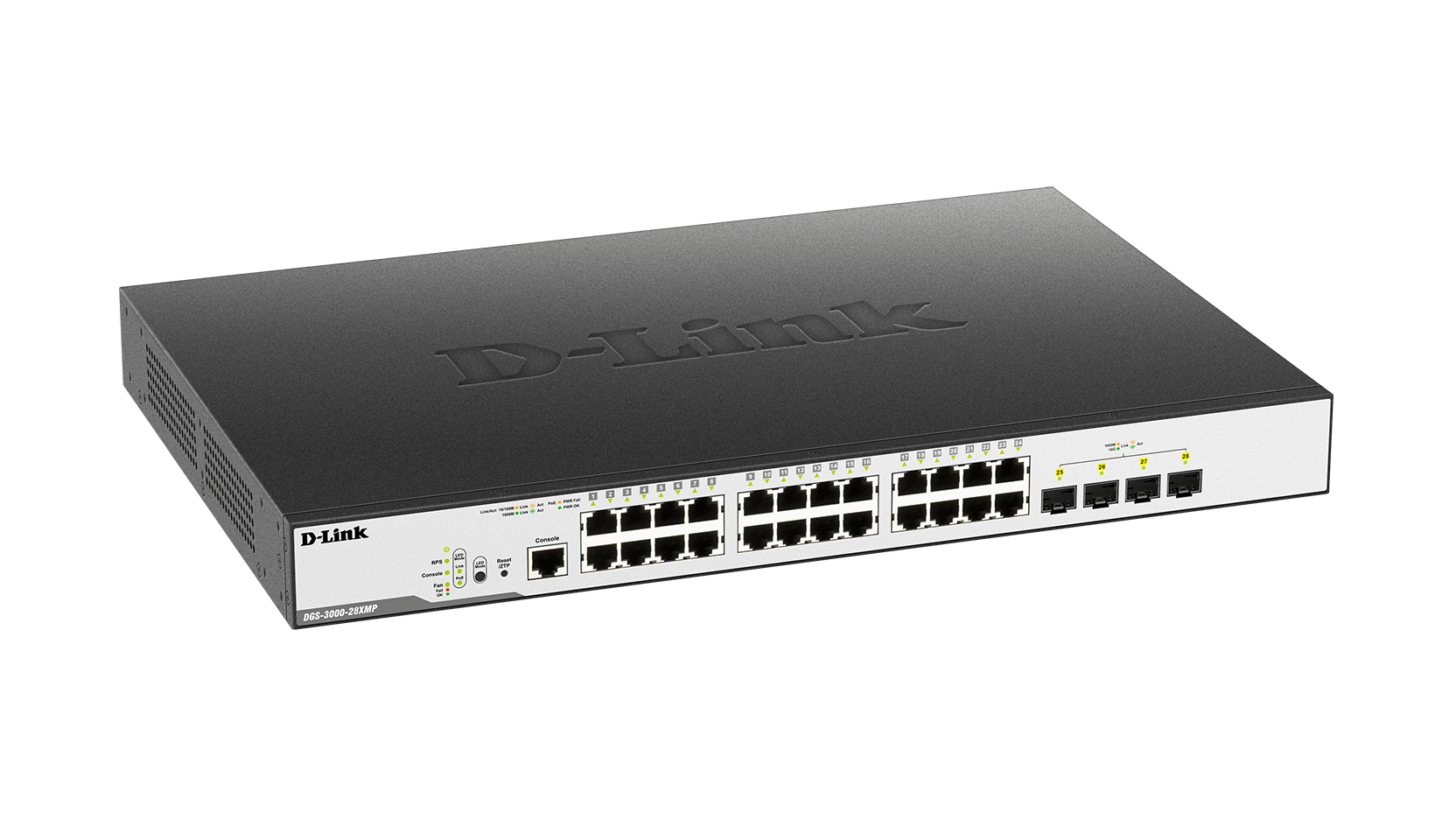

D-Link DGS-3000-28XMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

D-Link DGS-3000-28XMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Model DGS-3000-28XMPEAN 790069429606

94 specifications
  • Noise54.1 dB
  • Type1U
  • Weight4.25 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
See all specifications

Overview

Noise
54.1 dB
Type
1U
Weight
4.25 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Brand
D-Link
Model
DGS-3000-28XMP
Part number
DGS-3000-28XMP
EAN / UPC
790069429606
Also known as
D-Link DGS-3000-28XMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Specifications

94 specifications in 16 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP+ module slots quantity4
Fiber optic connectorSFP+
Console portRJ-45

Network

Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1af, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3at
10G supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat5, Cat5e
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs4094

Data transmission

MAC address table16000 entries
Switching capacity128 Gbit/s
Forwarding rate95.24 Mpps
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory1.5 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
Access Control List (ACL) rules1024
IGMP snoopingYes
AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS, SNMP, SNMPv3, SSH, SSH-2, SSL/TLS

Multicast features

Multicast supportYes
Multicast Listener Discovery (MLD) snoopingMLD v1, MLD v2

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
LED indicatorsActivity, Fan fail, Link, Power, Speed, Uplink
Number of fans2 fan(s)
SafetycUL, CB

Performance

Virtual stacking (units)32
Built-in processorYes
Noise level54.1 dB
Mean time between failures (MTBF)268693 h

Power

Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)445.2 W
Surge protection voltage6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget370 W

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation1518.132 BTU/h

Weight & dimensions

Width440 mm
Depth308 mm
Height44 mm
Weight4.25 kg

Packaging data

Package width450 mm
Package depth510 mm
Package height121 mm
Package weight4.94 kg

Technical details

Master (outer) cases per pallet (air)24 pc(s)
Master (outer) cases per pallet (sea)24 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)513.1 kg
Pallet gross weight (sea)513.1 kg
Pallet gross width120 cm
Pallet height (air)2.08 m
Pallet height (sea)2.08 m
Products per pallet (air)72 pc(s)
Products per pallet (sea)72 pc(s)
Products per shipping (inner) case3 pc(s)
Shipping (inner) case gross weight20.6 kg
Shipping (inner) case height48.5 cm
Shipping (inner) case length53 cm
Shipping (inner) case net weight14.8 kg
Shipping (inner) case width38.5 cm

Certificates

CertificationCE, FCC, C-Tick, VCCI, BSMI

Logistics data

Harmonized System (HS) code85176990
