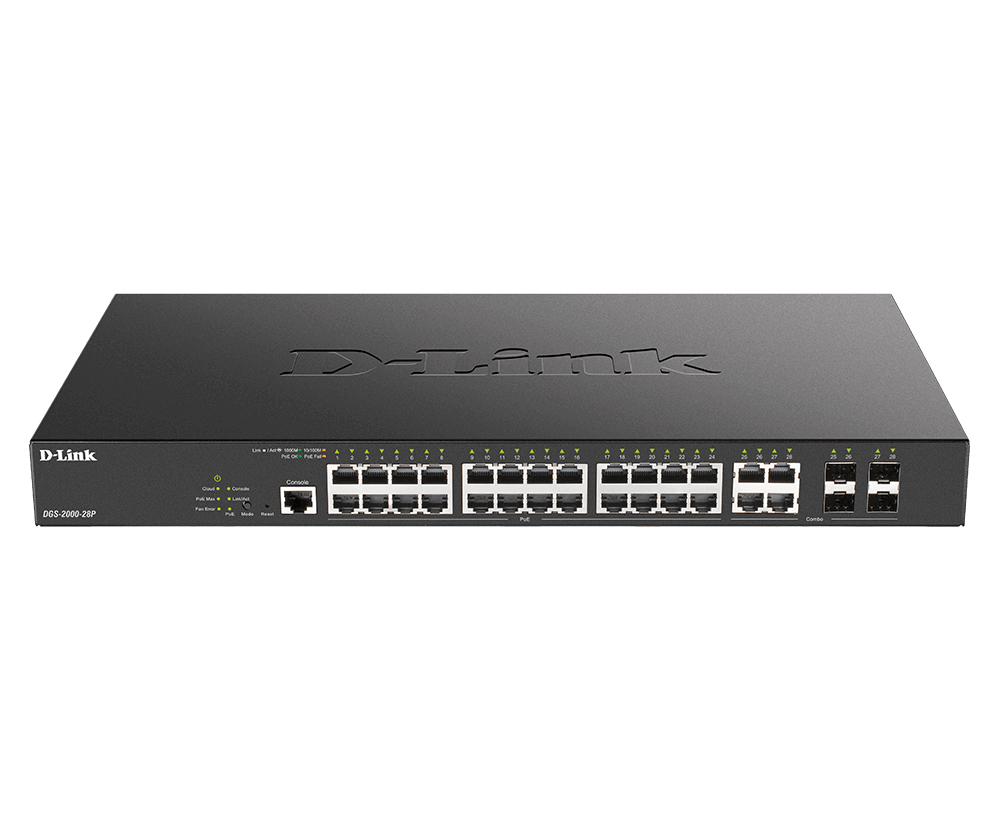

DGS-2000-28P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model DGS-2000-28PEAN 790069450143
53 specifications
- Memory256 MB
- Type1U
- Weight3.75 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 256 MB
- Type
- 1U
- Weight
- 3.75 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-2000-28P
- Part number
- DGS-2000-28P
- EAN / UPC
- 790069450143, 790069460524
- Also known as
- D-Link DGS-2000-28P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
53 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 469262 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 19.6 W |
| Power consumption (max) | 236.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 193 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 900.36 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.75 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
