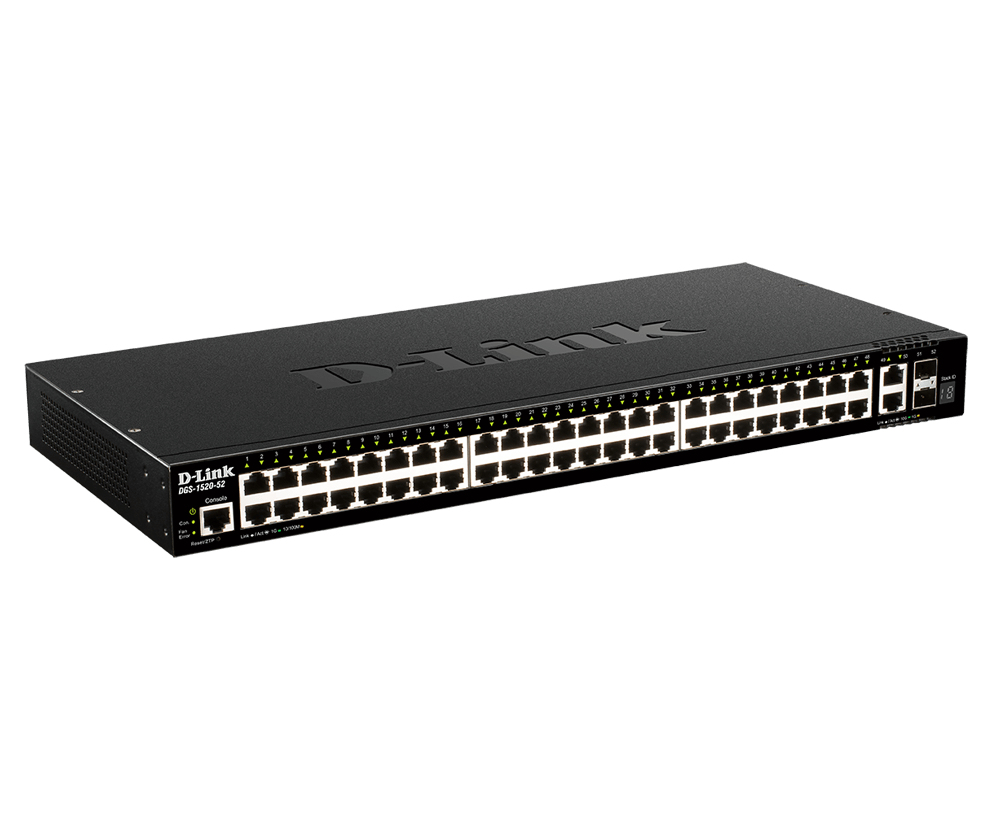

DGS-1520-52/E network switch Managed L3
10G Ethernet (100/1000/10000) 1U Black
Model DGS-1520-52/EEAN 790069472039
53 specifications
- Noise56.8 dB
- Type1U
- Weight2.78 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity50
Overview
- Noise
- 56.8 dB
- Type
- 1U
- Weight
- 2.78 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 50
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1520-52/E
- Part number
- DGS-1520-52/E
- EAN / UPC
- 790069472039
- Also known as
- D-Link DGS-1520-52/E network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
53 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 50 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, RIP, RIPng, VRRP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 32 |
| Noise level | 56.8 dB |
| Mean time between failures (MTBF) | 364888 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 51.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 174.6 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 207.4 mm |
| Height | 44 mm |
| Weight | 2.78 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC) |
