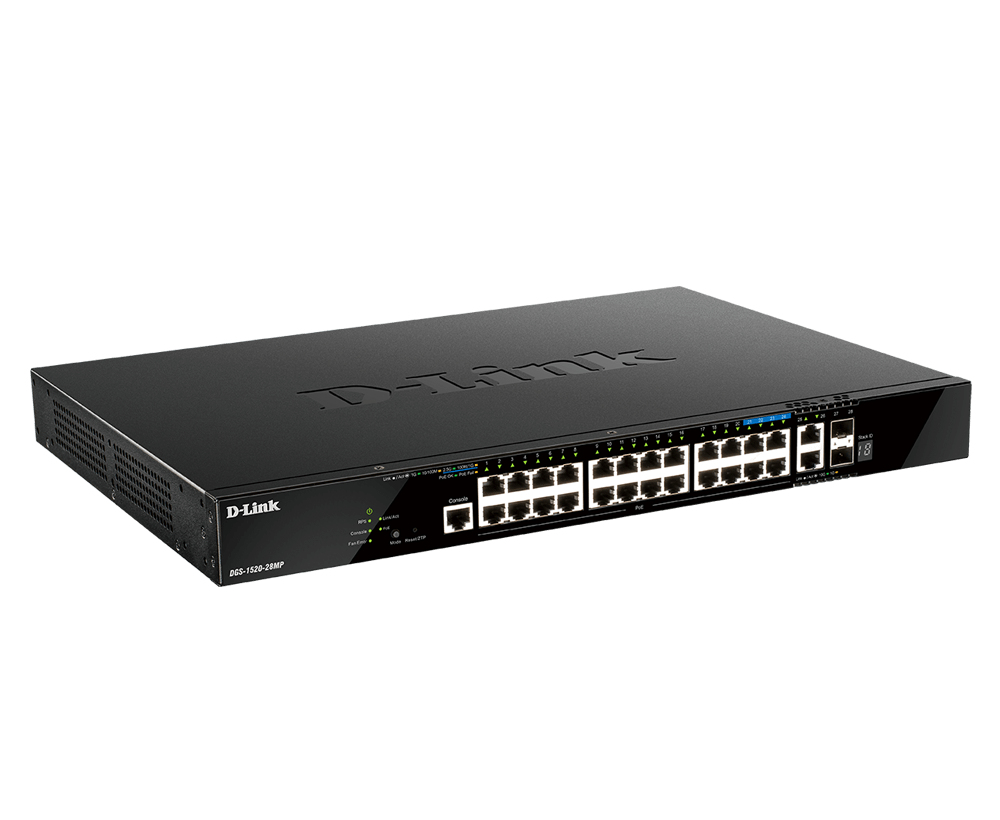

DGS-1520-28MP/E network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model DGS-1520-28MP/EEAN 790069472008
45 specifications
- Noise57.1 dB
- Type1U
- Weight4.29 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity20
Overview
- Noise
- 57.1 dB
- Type
- 1U
- Weight
- 4.29 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1520-28MP/E
- Part number
- DGS-1520-28MP/E
- EAN / UPC
- 790069472008
- Also known as
- D-Link DGS-1520-28MP/E network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
45 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 2.5G Ethernet (copper) ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 140 Gbit/s |
| Forwarding rate | 104.16 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, RIP, RIPng, VRRP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 32 |
| Noise level | 57.1 dB |
| Mean time between failures (MTBF) | 333946 h |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 453.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 20 |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 1545.8 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.29 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
