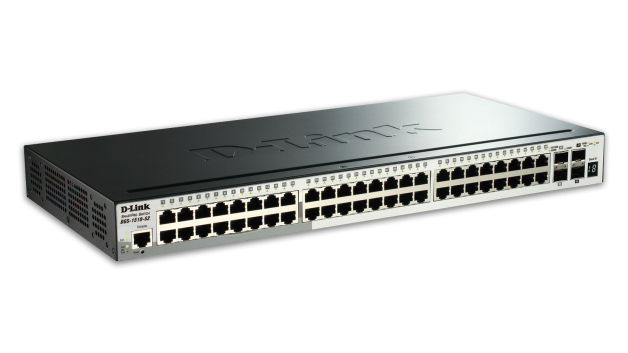

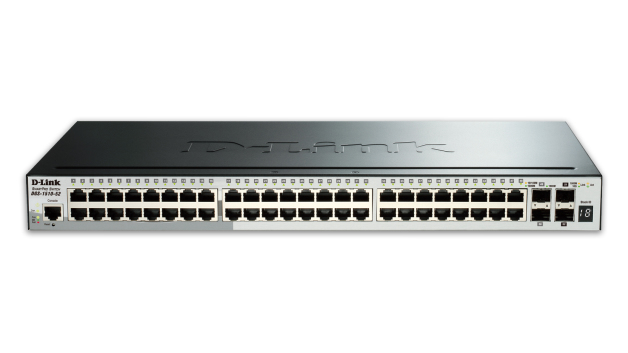

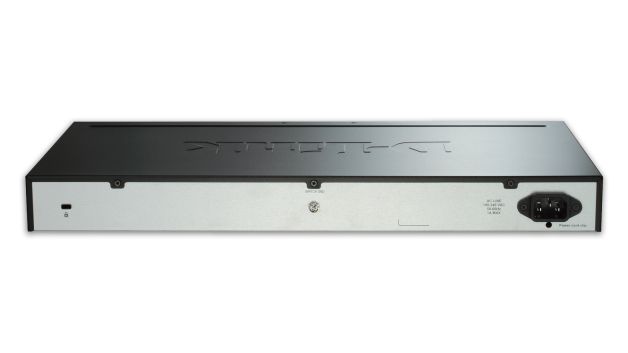

DGS-1510-52X+DEM-431XT network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Model DGS-1510-52X+DEM-431XT
78 specifications
- Noise45.8 dB
- Type1U
- Weight5.3 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Noise
- 45.8 dB
- Type
- 1U
- Weight
- 5.3 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1510-52X+DEM-431XT
- Part number
- DGS-1510-52X+DEM-431XT
- Also known as
- D-Link DGS-1510-52X+DEM-431XT network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
78 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| SFP+ module slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Throughput | 130.95 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 3 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Number of fans | 2 fan(s) |
| Safety | cUL, CB |
Performance
| Specification | Value |
|---|---|
| Noise level | 45.8 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 44.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 138.8 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 5.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 365 mm |
| Package depth | 555 mm |
| Package height | 101 mm |
| Package weight | 4.62 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 375.1 kg |
| Pallet gross weight (sea) | 375.1 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 173 cm |
| Pallet height (sea) | 173 cm |
| Products per pallet (air) | 72 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Products per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case gross weight | 14.9 kg |
| Shipping (inner) case height | 39.8 cm |
| Shipping (inner) case length | 57.3 cm |
| Shipping (inner) case net weight | 11.4 kg |
| Shipping (inner) case width | 32.4 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, C-Tick, VCCI, BSMI, CCC |
