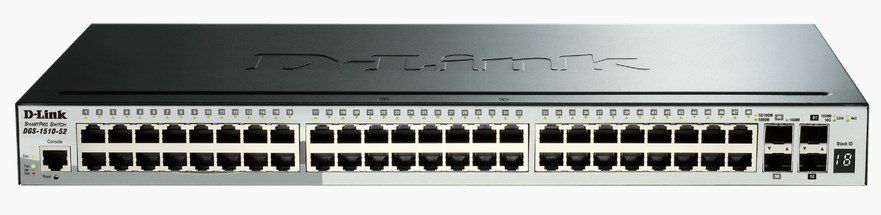

D-Link DGS-1510-52 network switch Managed L3 Gigabit Ethernet (10/100/1000) Black

D-Link DGS-1510-52 network switch Managed L3 Gigabit Ethernet (10/100/1000) Black

Model DGS-1510-52Part no. DGS-1510-52+DGS-1100-08EAN 7900693994804

80 specifications
  • Noise44.2 dB
  • Weight2.4 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • 10G supportYes
See all specifications

Overview

Noise
44.2 dB
Weight
2.4 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
10G support
Yes
Brand
D-Link
Model
DGS-1510-52
Part numbers
DGS-1510-52+DGS-1100-08, DGS-1510-52
EAN / UPC
7900693994804, 591257725025, 790069399480, 803982746368 +5 more
Also known as
D-Link DGS-1510-52 network switch Managed L3 Gigabit Ethernet (10/100/1000) Black

Specifications

80 specifications in 16 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity2
SFP+ module slots quantity2
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G supportYes
Cable types supportedCat5, Cat5e
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Broadcast storm controlYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
MAC address auto-learning supportedYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity140 Gbit/s
Forwarding rate104.16 Mpps
Store-and-forwardYes
Number of static routes512
Jumbo frames supportYes
Packet buffer memory3 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Static port securityYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Product colourBlack
LED indicatorsActivity, Link, Power
Number of fans2 fan(s)
SafetycUL, CB

Performance

Physical stacking (units)6
Virtual stacking (units)32
Noise level44.2 dB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)38.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation130.944 BTU/h

Weight & dimensions

Width440 mm
Depth210 mm
Height44 mm
Weight2.4 kg

Packaging content

ManualYes

Packaging data

Package width365 mm
Package depth555 mm
Package height101 mm
Package weight3.76 kg

Technical details

Master (outer) cases per pallet (air)24 pc(s)
Master (outer) cases per pallet (sea)24 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)318.5 kg
Pallet gross weight (sea)318.5 kg
Pallet gross width120 cm
Pallet height (air)172.7 cm
Pallet height (sea)172.7 cm
Products per pallet (air)72 pc(s)
Products per pallet (sea)72 pc(s)
Products per shipping (inner) case3 pc(s)
Shipping (inner) case gross weight12.4 kg
Shipping (inner) case height39.8 cm
Shipping (inner) case length57.3 cm
Shipping (inner) case net weight10 kg
Shipping (inner) case width32.4 cm

Certificates

CertificationCE, FCC, C-Tick, VCCI, BSMI, CCC
