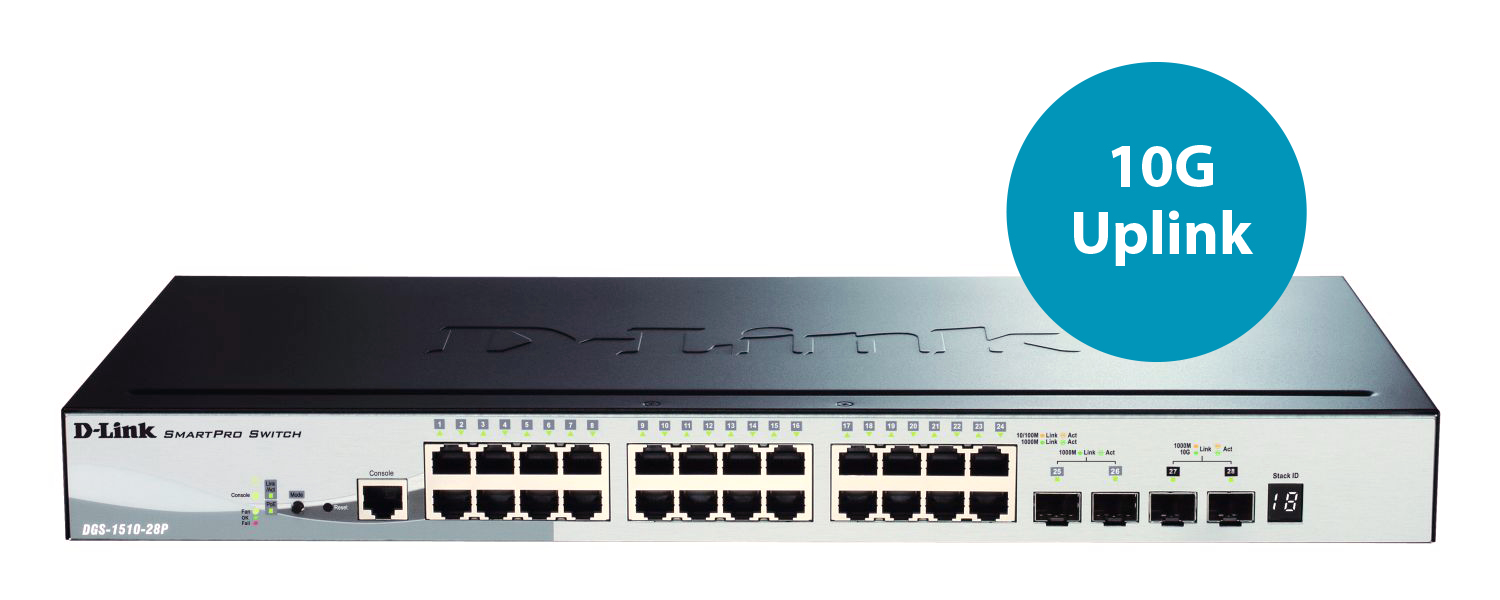

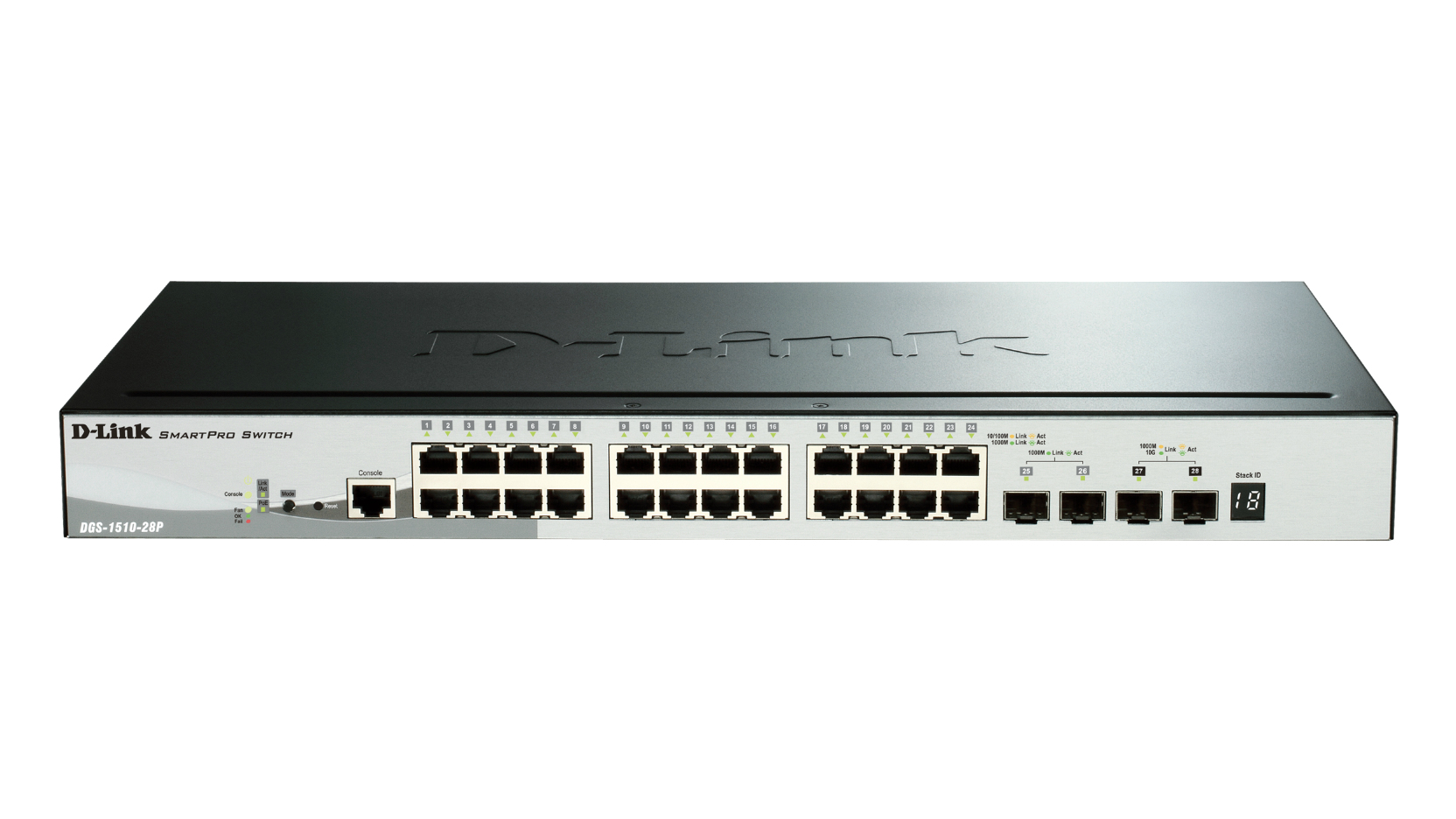

DGS-1510-28P+DEM-431XT network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model DGS-1510-28P+DEM-431XT
83 specifications
- Noise46.4 dB
- Weight2.54 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Noise
- 46.4 dB
- Weight
- 2.54 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1510-28P+DEM-431XT
- Part number
- DGS-1510-28P+DEM-431XT
- Also known as
- D-Link DGS-1510-28P+DEM-431XT network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
83 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 92 Gbit/s |
| Forwarding rate | 68.45 Mpps |
| Store-and-forward | Yes |
| Number of static routes | 512 |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 2 fan(s) |
| Safety | cUL, CB |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 6 |
| Virtual stacking (units) | 32 |
| Noise level | 46.4 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 238.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 193 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 813.967 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 2.54 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 348 mm |
| Package depth | 511 mm |
| Package height | 91 mm |
| Package weight | 4 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 40 pc(s) |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 533.9 kg |
| Pallet gross weight (sea) | 533.9 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.05 m |
| Pallet height (sea) | 2.05 m |
| Products per pallet (air) | 120 pc(s) |
| Products per pallet (sea) | 120 pc(s) |
| Products per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case gross weight | 12.9 kg |
| Shipping (inner) case height | 38.3 cm |
| Shipping (inner) case length | 52.9 cm |
| Shipping (inner) case net weight | 9.27 kg |
| Shipping (inner) case width | 29.6 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, C-Tick, VCCI, BSMI, CCC |
