D-Link 20-Port Gigabit Stackable Smart Managed Switch including
2 x 10G SFP+ & 2 x SFP
Model DGS-1510-20EAN 7900693994590
81 specifications
- Noise43.8 dB
- Weight1.24 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportYes
Overview
- Noise
- 43.8 dB
- Weight
- 1.24 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1510-20
- Part number
- DGS-1510-20
- EAN / UPC
- 7900693994590, 012300314480, 790069399459, 790069402777 +5 more
- Also known as
- D-Link 20-Port Gigabit Stackable Smart Managed Switch including 2 x 10G SFP+ & 2 x SFP
Specifications
81 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 76 Gbit/s |
| Forwarding rate | 56.54 Mpps |
| Store-and-forward | Yes |
| Number of static routes | 512 |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, SNMP, SNTP, ICMPv6, IPv4/v6, RMON v1, LLDP, LLDP-MED, NTP, Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Number of fans | 1 fan(s) |
| Safety | cUL, CB |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 6 |
| Virtual stacking (units) | 32 |
| Noise level | 43.8 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 90% |
| Heat dissipation | 41.602 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.24 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 346 mm |
| Package depth | 346 mm |
| Package height | 104 mm |
| Package weight | 2.71 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 457.7 kg |
| Pallet gross weight (sea) | 457.7 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.03 m |
| Pallet height (sea) | 2.03 m |
| Products per pallet (air) | 150 pc(s) |
| Products per pallet (sea) | 150 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 14.6 kg |
| Shipping (inner) case height | 37.9 cm |
| Shipping (inner) case length | 56.3 cm |
| Shipping (inner) case net weight | 8.04 kg |
| Shipping (inner) case width | 36.4 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, C-Tick, VCCI, BSMI, CCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Reviews
No reviews of D-Link 20-Port Gigabit Stackable Smart Managed Switch including yet. Have you used it? Tell others what you think.
Write a reviewCompare D-Link 20-Port Gigabit Stackable Smart Managed Switch including
All network switch comparisons- D-Link 20-Port Gigabit Stackable Smart Managed Switch including vsD-Link 28-Port Gigabit Stackable PoE Smart Managed Switch includingCompare specs

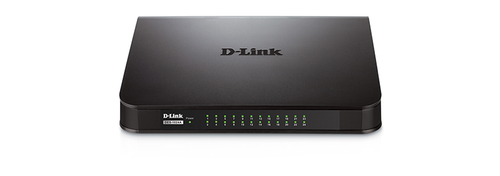

- D-Link 20-Port Gigabit Stackable Smart Managed Switch including vsD-Link DES-1024A/C1 network switch BlackCompare specs
- D-Link 20-Port Gigabit Stackable Smart Managed Switch including vsD-Link DGS-1510-52 network switch Managed L3 Gigabit Ethernet (10/100/1000) BlackCompare specs
- D-Link 20-Port Gigabit Stackable Smart Managed Switch including vsD-Link DGS-1510-28 network switch Managed L3 Gigabit Ethernet (10/100/1000) BlackCompare specs

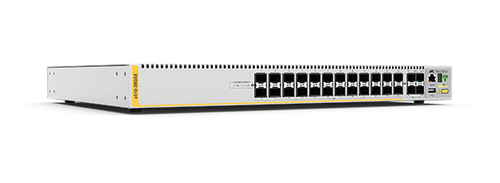

- D-Link 20-Port Gigabit Stackable Smart Managed Switch including vsAllied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) SilverCompare specs

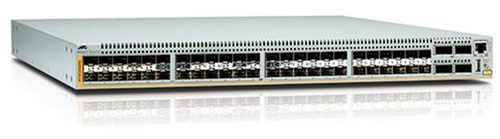

- D-Link 20-Port Gigabit Stackable Smart Managed Switch including vsAllied Telesis AT-DC2552XS network switch Managed L3 1U GreyCompare specs
- D-Link 20-Port Gigabit Stackable Smart Managed Switch including vsAllied Telesis AT-x210-9GT-50 Managed L2+ Gigabit Ethernet (10/100/1000) GreyCompare specs

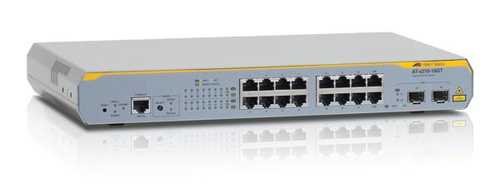

- D-Link 20-Port Gigabit Stackable Smart Managed Switch including vsAllied Telesis AT-x210-16GT-50 Managed L2+ Gigabit Ethernet (10/100/1000) GreyCompare specs
