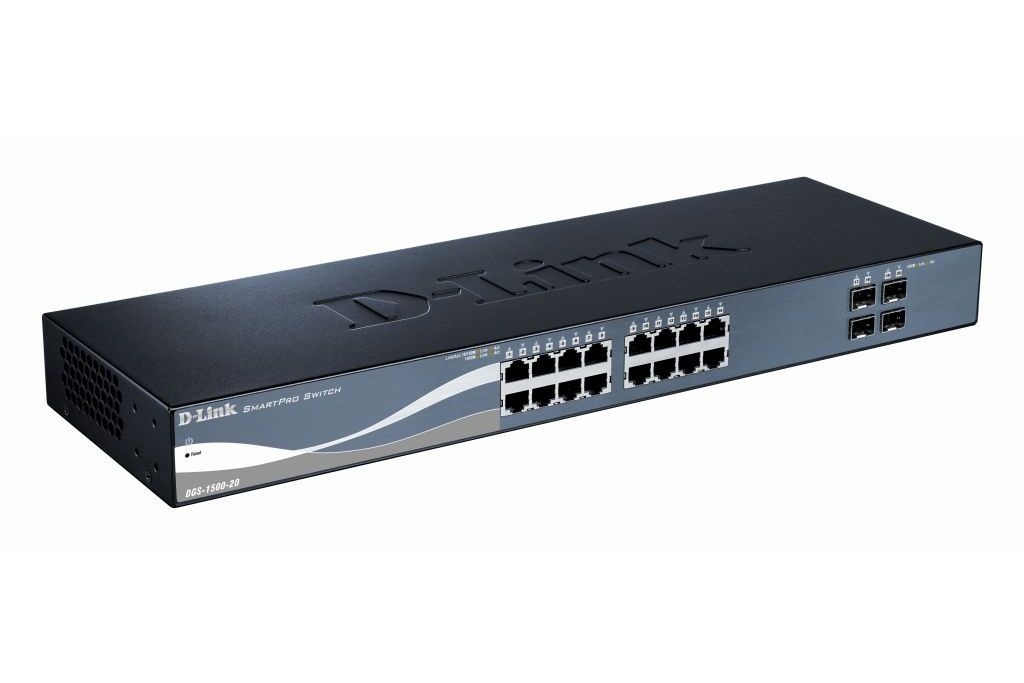

D-Link DGS-1500-20 network switch Managed Silver
Model DGS-1500-20EAN 790069362675
51 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Noise0 dB
- Weight2.2 kg
- ColourSilver
- Switch typeManaged
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 0 dB
- Weight
- 2.2 kg
- Colour
- Silver
- Switch type
- Managed
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1500-20
- Part number
- DGS-1500-20
- EAN / UPC
- 790069362675, 151903028995, 790069361364, 7900693613644 +1 more
- Also known as
- D-Link DGS-1500-20 network switch Managed Silver
Specifications
51 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 40 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | PEAP, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Supported network protocols | IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| LED indicators | Link |
| Safety | cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 253460 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 14.06 W |
Other features
| Specification | Value |
|---|---|
| Management platform | CLI/GUI |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 140 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 29.8Mbps |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 47.97 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI |
