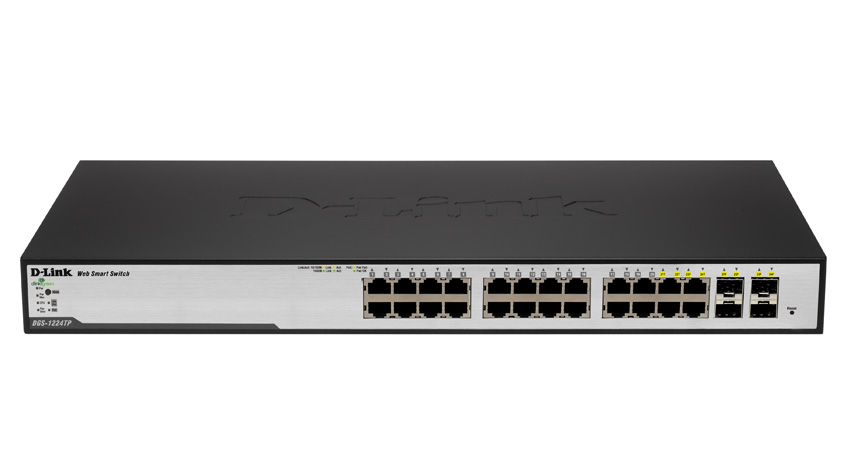

D-Link DGS-1224TP network switch Managed Power over Ethernet (PoE)
Model DGS-1224TPEAN 790069321764
34 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Noise47 dB
- Weight3.6 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 47 dB
- Weight
- 3.6 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1224TP
- Part number
- DGS-1224TP
- EAN / UPC
- 790069321764, 790069321719, 790069321726, 5051964436478 +1 more
- Also known as
- D-Link DGS-1224TP network switch Managed Power over Ethernet (PoE)
Specifications
34 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.512 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1 |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Noise level | 47 dB |
| Mean time between failures (MTBF) | 173.467 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 250.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 210 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1488000 pps |
| Power requirements | 102 - 240V, 50/60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 854.02 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE Class A, VCCI Class A |
