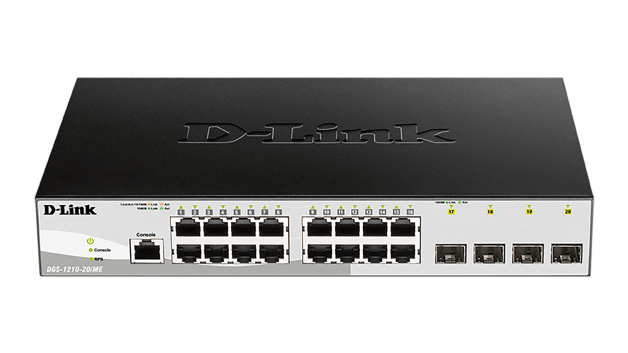

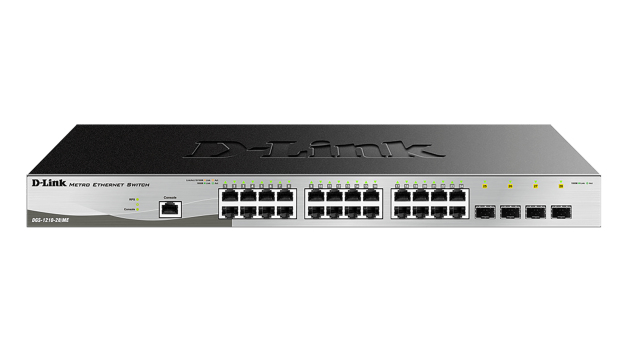

D-Link DGS-1210/ME Managed L2 Gigabit Ethernet (10/100/1000) Black
Model DGS-1210/MEPart no. DGS-1210-28MP/MEEAN 790069428425
74 specifications
- Weight2.21 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Cable types supportedCat5, Cat5e
- MAC address table8000 entries
Overview
- Weight
- 2.21 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Cable types supported
- Cat5, Cat5e
- MAC address table
- 8000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1210/ME
- Part numbers
- DGS-1210-28MP/ME, DGS-1210-20/ME
- EAN / UPC
- 790069428425, 790069406812
- Also known as
- D-Link DGS-1210/ME Managed L2 Gigabit Ethernet (10/100/1000) Black
Specifications
74 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| ARP attack prevention | Yes |
| DoS attack prevention | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 64 entries |
| Multicast Listener Discovery (MLD) snooping | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Reset button | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 497918 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 19.14 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 60.12 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.21 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Rubber feet | Yes |
| Package width | 360 mm |
| Package depth | 515 mm |
| Package height | 90 mm |
| Package weight | 5.42 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 437.1 kg |
| Pallet gross weight (sea) | 711.7 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 131.4 cm |
| Pallet height (sea) | 2.1 m |
| Products per pallet (air) | 72 pc(s) |
| Products per pallet (sea) | 120 pc(s) |
| Products per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case gross weight | 17.1 kg |
| Shipping (inner) case height | 39.3 cm |
| Shipping (inner) case length | 53.9 cm |
| Shipping (inner) case net weight | 16.3 kg |
| Shipping (inner) case width | 29.5 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI, BSMI, CCC, LVD, UL, CB |
