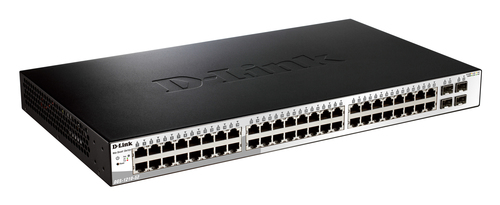

1000) Power over Ethernet (PoE) 1U Black, White

Model DGS-1210-52PEAN 790069409608

76 specifications

Memory128 MB
Speed1 Gbit/s
Noise47.3 dB
Type1U
Weight5.66 kg
ColourBlack, White

See all specifications

Overview

Memory: 128 MB
Speed: 1 Gbit/s
Noise: 47.3 dB
Type: 1U
Weight: 5.66 kg
Colour: Black, White

Brand: D-Link
Category: Network Switch
Model: DGS-1210-52P
Part number: DGS-1210-52P
EAN / UPC: 790069409608, 5054629666630, 7900694096088
Also known as: D-Link DGS-1210-52P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, White

Specifications

76 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
SFP/SFP+ slots quantity	4
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10GBASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN

Data transmission

Specification	Value
MAC address table	16000 entries
Supported data transfer rates	10/100/1000Mbps
Switching capacity	104 Gbit/s
Forwarding rate	77.4 Mpps
Store-and-forward	Yes
Number of queues	192
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	3 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	768
IGMP snooping	Yes
ARP attack prevention	Yes
ICMP attack prevention	Yes
Neighbor discovery snooping	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)

Multicast features

Specification	Value
Multicast support	Yes
Multicast MAC address table	64 entries
Multicast Listener Discovery (MLD) snooping	v1/v2 (256 groups)

Protocols

Specification	Value
Supported network protocols	IPv4 / IPv6

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black, White
LED indicators	Activity, Link, Speed
Number of fans	2 fan(s)
Safety	cUL, CE LVD

Performance

Specification	Value
Memory type	DDR3-SDRAM
Internal memory	128 MB
Flash memory	16 MB
Noise level	47.3 dB
Telnet	Yes

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24

Other features

Specification	Value
Packet transfer speed	77.4 Mpps
Power LED	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	912.96 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	430 mm
Height	44 mm
Weight	5.66 kg

Certificates

Specification	Value
Certification	FCC, CE, VCCI, ICES-003
