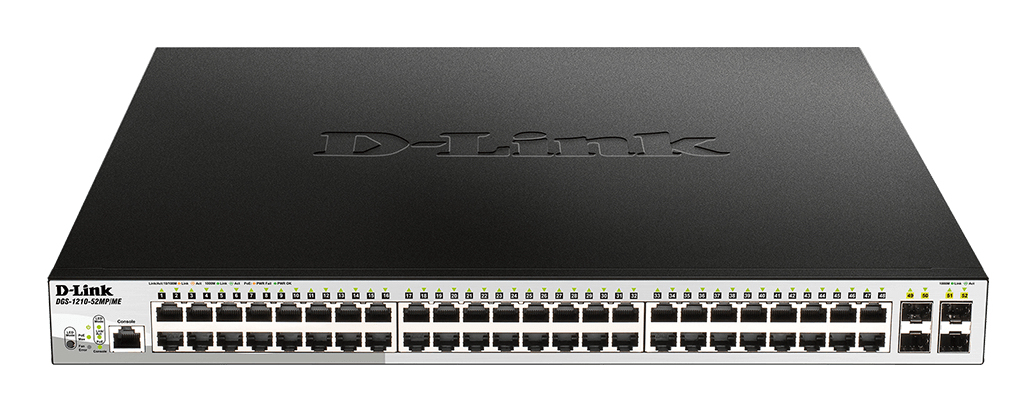

48-Port 10/100/1000BASE-T PoE + 4-Port 1 Gbps SFP Ports Metro Ethernet Switch
Model DGS-1210-52MP/ME/BEAN 790069470172
68 specifications
- Memory256 MB
- Noise52.4 dB
- Type1U
- Weight5.78 kg
- ColourBlack, Grey
- Switch typeManaged
Overview
- Memory
- 256 MB
- Noise
- 52.4 dB
- Type
- 1U
- Weight
- 5.78 kg
- Colour
- Black, Grey
- Switch type
- Managed
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1210-52MP/ME/B
- Part number
- DGS-1210-52MP/ME/B
- EAN / UPC
- 790069470172
- Also known as
- D-Link 48-Port 10/100/1000BASE-T PoE + 4-Port 1 Gbps SFP Ports Metro Ethernet Switch
Specifications
68 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Packet buffer memory | 3 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Grey |
| LED indicators | Activity, Fan fail, Link, Power, Speed |
| Number of fans | 2 fan(s) |
| Electromagnetic compatibility | FCC A, CE A, VCCI, C-Tick, BSMI, CCC |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 52.4 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 483.1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 850.58 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 430 mm |
| Height | 44 mm |
| Weight | 5.78 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 558 mm |
| Package depth | 568 mm |
| Package height | 149 mm |
| Package weight | 8.54 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC61000-4-5, RoHS |
