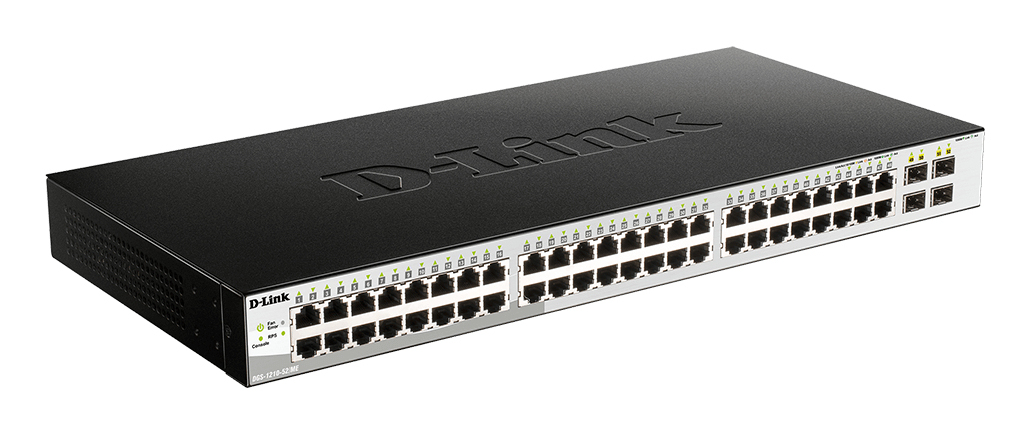

48-Port 10/100/1000BASE-T + 4-Port 1 Gbps SFP Ports Metro Ethernet Switch
Model DGS-1210-52/ME/BEAN 790069470189
40 specifications
- Type1U
- Weight3.96 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Port mirroringYes
Overview
- Type
- 1U
- Weight
- 3.96 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Port mirroring
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1210-52/ME/B
- Part number
- DGS-1210-52/ME/B
- EAN / UPC
- 790069470189
- Also known as
- D-Link 48-Port 10/100/1000BASE-T + 4-Port 1 Gbps SFP Ports Metro Ethernet Switch
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | RFC1213 MIB II, RFC1493 Bridge MIB, RFC1907 SNMPv2 MIB, RFC1757, 2819 RMON MIB, RFC2021 RMONv2 MIB, RFC1398, 1643, 1650, 2358, 2665 Ether-like MIB, RFC2674, 4363 802.1p MIB, RFC 2233, 2863 IF MIB, RFC 2618 RADIUS Authentication Client MIB, RFC 2620 RADIUS Accounting Client MIB, RFC 2925 Ping & T |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ah |
| Port mirroring | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Packet buffer memory | 1 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv4 / IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Link, Status |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.96 kg |
