1000) 1U Black

Model DGS-1210-28/MEPart no. DGS-1210-28MEEAN 790069468254

86 specifications

Overview

Brand: D-Link
Category: Network Switch
Model: DGS-1210-28/ME
Part numbers: DGS-1210-28ME, DGS-1210-28E
EAN / UPC: 790069468254, 790069402371, 790069425233, 790069427121 +1 more

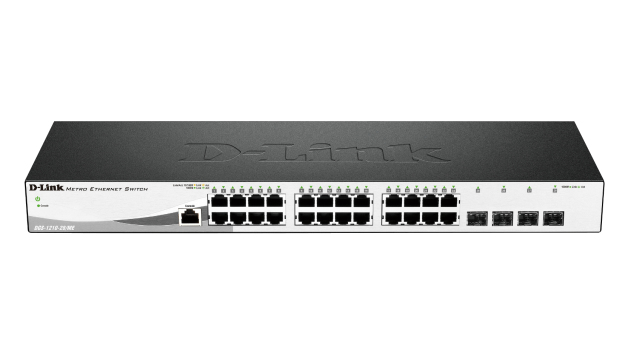

Also known as: D-Link DGS-1210-28/ME Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

86 specifications in 15 groups

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
System event log	Yes
MIB support	RFC 1213, RFC 1493, RFC 1907, RFC 1757, RFC 2819, RFC 2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674,4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Fiber optic connector	SFP
Console port	RJ-45

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SSH

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	256

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Safety	CE LVD, UL, CB
Electromagnetic compatibility	FCC A, CE A, VCCI

Specification	Value
Memory type	DDR3-SDRAM
Internal memory	128 MB
Flash memory	32 MB
Buffer size	1.5 KB
Noise level	0 dB
Mean time between failures (MTBF)	388138 h

Specification	Value
Power over Ethernet (PoE)	No

Specification	Value
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	76.59 BTU/h

Specification	Value
Master (outer) cases per pallet (air)	24 pc(s)
Master (outer) cases per pallet (sea)	36 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	439.9 kg
Pallet gross weight (sea)	650.6 kg
Pallet gross width	120 cm
Pallet height (air)	130.3 cm
Pallet height (sea)	188.7 cm
Products per pallet (air)	120 pc(s)
Products per pallet (sea)	180 pc(s)
Products per shipping (inner) case	5 pc(s)
Shipping (inner) case gross weight	17.5 kg
Shipping (inner) case height	29.2 cm
Shipping (inner) case length	51 cm
Shipping (inner) case net weight	16.6 kg
Shipping (inner) case width	38.1 cm
