D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports
Model DGS-1210-28Part no. DGS-1210-28/EEAN 5704174940388
65 specifications
- Memory256 MB
- Noise55.2 dB
- Type1U
- Weight2.15 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 256 MB
- Noise
- 55.2 dB
- Type
- 1U
- Weight
- 2.15 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1210-28
- Part numbers
- DGS-1210-28/E, DGS-1210-28, DGS-1210-28/IN, DGS-1210-28+DGS-108
- EAN / UPC
- 5704174940388, 021111213295, 132018031018, 168141530760 +15 more
- Also known as
- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports
Specifications
65 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 55.2 dB |
| Mean time between failures (MTBF) | 992594 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 17.32 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 59.09 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 140 mm |
| Height | 44 mm |
| Weight | 2.15 kg |
Compare D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports

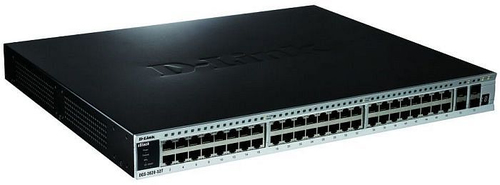

Compare any products- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports vsD-Link DGS-3620-52PC Managed L3+ Power over Ethernet (PoE) BlackCompare specs

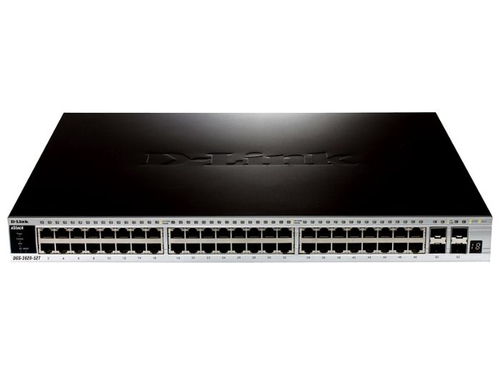

- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports vsD-Link DGS-3620-52T Managed L3+ BlackCompare specs
- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports vsD-Link 52-Port Gigabit Smart Managed Switch includingCompare specs
- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports vsD-Link 20-Port Gigabit Smart Managed Switch including 4 SFP portsCompare specs

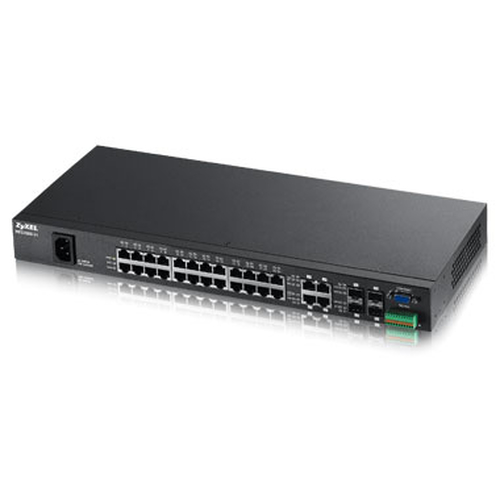

- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports vsZyxel MES3500-24F Managed L2 BlackCompare specs
- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports vsZyxel MES-3500-24 Managed L2 Fast Ethernet (10/100) BlackCompare specs

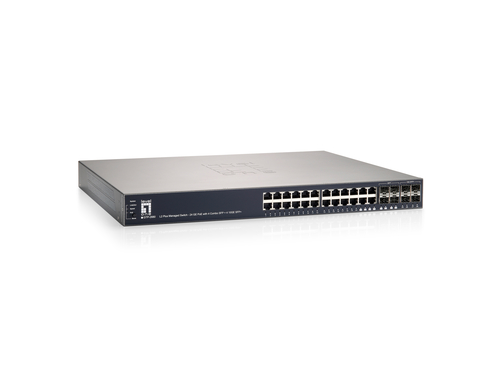

- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports vsLevelOne 28-Port L2 Managed Gigabit PoE Switch, 802.3at/af PoE, 4 x SFP/RJ45 ComboCompare specs

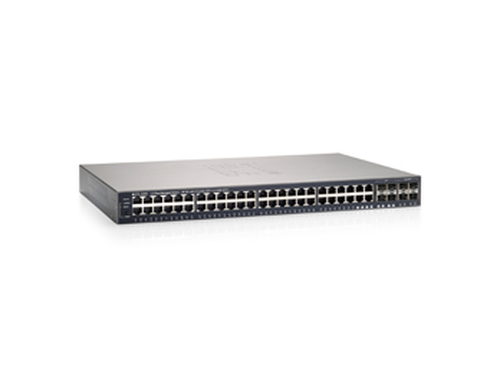

- D-Link 28-Port Gigabit Smart Managed Switch including 4 Combo Ports vsLevelOne 52-Port L2 Plus Managed Gigabit Ethernet Switch, 44 Ports RJ45 and 4 Ports RJ45/SFP Combo Gigabit Ethernet, 4 Ports SFP+ 10-GigabitCompare specs
