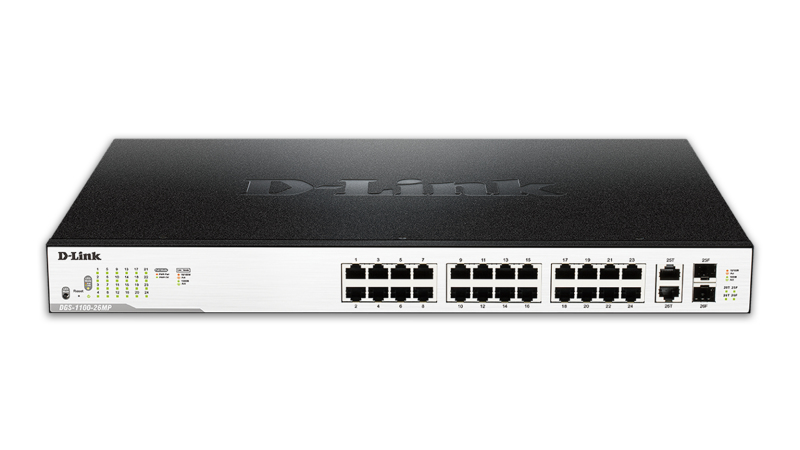

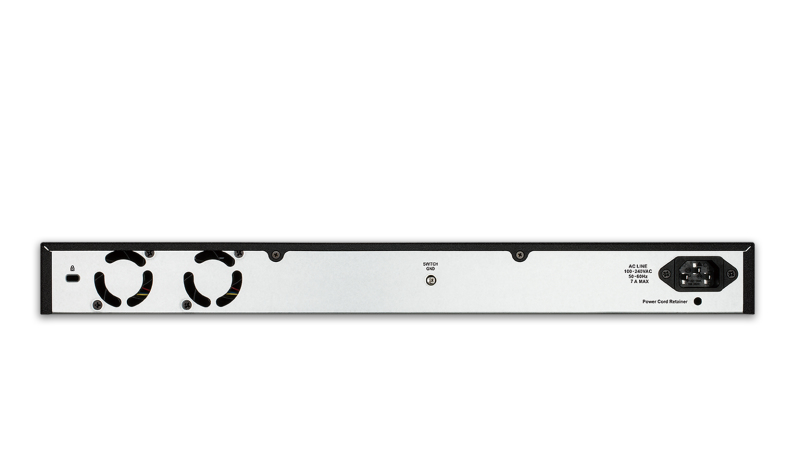

DGS-1100-26MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model DGS-1100-26MPEAN 790069420122
70 specifications
- Type1U
- Weight3.81 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 3.81 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1100-26MP
- Part number
- DGS-1100-26MP
- EAN / UPC
- 790069420122
- Also known as
- D-Link DGS-1100-26MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
70 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| 10G support | No |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 52 Gbit/s |
| Throughput | 38.69 Mpps |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Safety | cUL, UL, GS, CB |
Performance
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 269291 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 387 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 147046 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 290 mm |
| Height | 44 mm |
| Weight | 3.81 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 377 mm |
| Package depth | 508 mm |
| Package height | 92 mm |
| Package weight | 4.4 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 27 pc(s) |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 445.1 kg |
| Pallet gross weight (sea) | 587.5 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 133.5 cm |
| Pallet height (sea) | 173.5 cm |
| Products per pallet (air) | 81 pc(s) |
| Products per pallet (sea) | 108 pc(s) |
| Products per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case gross weight | 15.8 kg |
| Shipping (inner) case height | 40 cm |
| Shipping (inner) case length | 52 cm |
| Shipping (inner) case net weight | 14.6 kg |
| Shipping (inner) case width | 29 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC/IC, CE, VCCI, RCM, BSMI |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
